Philips 232728 CDM150/T6/830 CDM-T 150W G12

Product Overview

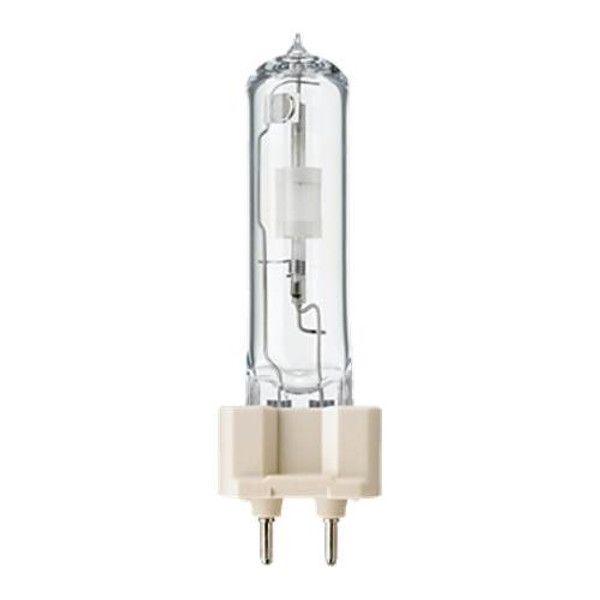

Philips 232728 MasterColor CDM-T 150W/830 T6 – 150W Ceramic Metal Halide Lamp | 3000K | CRI 88 | G12 Base

The Philips 232728 MasterColor CDM-T 150W/830 T6 is a compact 150-watt ceramic metal halide lamp designed to provide crisp, sparkling warm-white light with consistent performance throughout its service life. The lamp features a clear T6 envelope, G12 bi-pin base, 3000K color temperature, CRI 88, and a manufacturer-rated average life of 12,000 hours. Philips lists initial light output of approximately 13,200 to 13,600 lumens depending on the control-gear configuration. Before ordering, verify the exact Philips product number, G12 base, 150W rating, 96V lamp voltage, physical dimensions, ballast compatibility, and 3000K color requirement.

Wattage

150W

Ceramic Metal Halide

Light Output

13,200–13,600

Initial Lumens

Color

3000K

CRI 88

Base

G12

Bi-Pin

Rated Life

12,000 hrs

Average Life

Technical Specifications

Brand	Philips MasterColor
Product Number	232728
Full Product Name	MasterColor CDM-T 150W/830 T6 1CT
Short Product Name	CDM150/T6/830 12PK
Technology	Ceramic Metal Halide
Bulb Shape	T6
Bulb Finish	Clear
Base Type	G12
Operating Position	Universal
Nominal Wattage	150W
Lamp Voltage	96V
Lamp Current – EM	1.8A
Lamp Current – EL	1.62A
Color Code	830
Color Temperature	3000K nominal / 2950K technical
Color Designation	Warm White
Color Rendering Index	88
Initial Lumens	13,200–13,600 lm, depending on control gear
Design Mean Lumens – Electronic	9,600 lm
Design Mean Lumens – Electromagnetic	8,900 lm
Average Rated Life	12,000 hours
Ignition Time	30 seconds maximum
Run-Up to 90% Output	3 minutes maximum
Re-Ignition Time	15 minutes maximum
Minimum Ignition Peak Voltage	3,500V
Dimmable	No
Maximum Overall Length	110 mm / approximately 4.34 in
Maximum Diameter	20 mm / approximately 0.75 in
Light Center Length	56 mm nominal
Arc Length	9 mm
Mercury Content	14.25 mg
Energy Efficiency Label	A+
Pieces per SKU	1
Case Quantity	12 lamps
Barcode on Pack	46677232726
Barcode on Case	50046677232721
Logistics Code	928083705115

Product Overview

The Philips MasterColor CDM-T 150W/830 T6 combines ceramic metal halide technology with a compact tubular format to provide high-output warm-white illumination from a relatively small lamp envelope. Philips describes the lamp as producing crisp, sparkling light while maintaining consistent performance throughout its operating life.

With a nominal 3000K color temperature and CRI of 88, the lamp provides strong color rendering for applications where merchandise, architectural materials, furnishings, and interior finishes need to appear natural and well defined. Initial light output varies with the control gear used, with the Philips datasheet listing approximately 13,200 to 13,600 lumens.

This lamp requires compatible HID control gear and must not be connected directly to line voltage. Lamp wattage alone does not establish compatibility. The ballast, ignition system, G12 socket, lamp voltage, lamp current, physical dimensions, and fixture operating conditions should all be checked before replacement.

Compatible Applications

Retail display and merchandise lighting
Architectural accent lighting
Commercial interiors
Hospitality lighting
Showrooms and specialty display areas
Compatible luminaires designed for 150W G12 ceramic metal halide lamps
Maintenance replacement where Philips product number 232728 or CDM-T 150W/830 G12 is specified

Before Ordering – Verify

Philips product number: Confirm 232728.
Product designation: Verify MasterColor CDM-T 150W/830 T6.
Wattage: Confirm the fixture and ballast are designed for a 150W ceramic metal halide lamp.
Base: Confirm the fixture uses a G12 socket.
Lamp voltage: Philips specifies 96V lamp voltage.
Control gear: Verify that the existing ballast and ignitor are approved for this exact lamp type.
Ignition requirement: The lamp requires a minimum 3,500V ignition peak.
Dimming: This lamp is non-dimmable.
Color: This version is color code 830, nominally 3000K Warm White.
CRI: Philips specifies CRI 88.
Dimensions: Verify a maximum overall length of 110 mm and maximum diameter of 20 mm.
Operating position: Universal.
Warm-up: Allow up to approximately 3 minutes to reach 90% light output.
Hot restart: Re-ignition may require up to 15 minutes.
Sibling products: Do not substitute other CDM-T wattages or color codes solely because they use a similar G12 base.
Packaging: Philips lists one lamp per SKU and 12 lamps per case.

Safety and Handling Guidelines

Disconnect electrical power before installing, inspecting, or removing the lamp.
Use only with compatible ceramic metal halide control gear and ignition equipment.
Do not operate the lamp on a dimming circuit.
Allow the lamp and fixture to cool before handling.
Do not install a lamp with a cracked, broken, or punctured outer envelope.
UV radiation warning: Philips warns that a broken or punctured outer envelope can permit short-wave ultraviolet radiation capable of causing serious skin burns and eye inflammation.
Where people may remain near the operating lamp, use adequate shielding or other appropriate safety precautions.
Follow all luminaire-manufacturer temperature, shielding, clearance, and electrical requirements.
Maximum cap-base temperature is 280°C, maximum pinch temperature is 350°C, and maximum bulb temperature is 650°C.

Compliance

This lamp complies with the FDA radiation performance standard cited by Philips: 21 CFR Subchapter J / 21 CFR 1040.30 for the United States.
Philips also references Canadian radiation requirement SOR/DORS/80-381.
Energy Efficiency Label: A+.
Mercury content: 14.25 mg.
This lamp contains mercury and should be recycled or disposed of in accordance with applicable local regulations.
The supplied Philips datasheet does not identify DLC, ENERGY STAR, Title 20, Title 24, or JA8 certification for this exact lamp.
