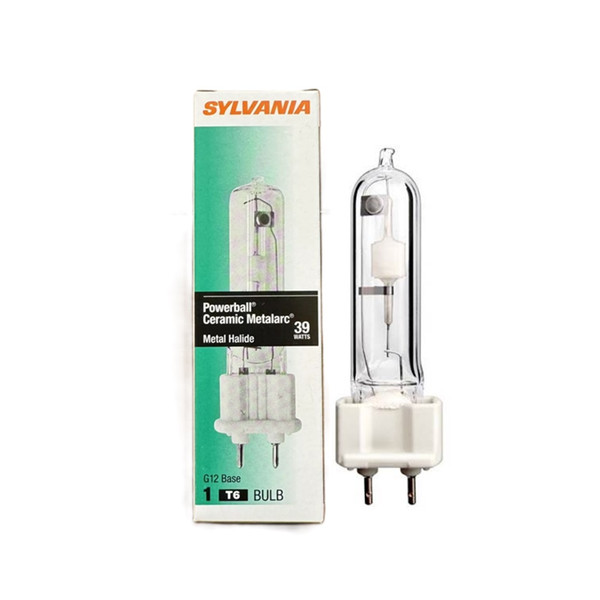

SYLVANIA 64363 | MC39TC/U/G12/830 Metalarc® Powerball® 39W Ceramic Metal Halide Lamp

The Sylvania 64363 (MC39TC/U/G12/830) is an industrial-grade, ultra-efficient **39W ceramic metal halide lamp** from Sylvania’s premier Metalarc® Powerball® 800 Series. Running on a specialized **ANSI C130/E** ballast circuit, this single-ended **T6 clear capsule bulb** features a rugged, precision-molded **G12 ceramic bi-pin base** engineered for absolute alignment and optics stabilization. Producing a powerful **3600 initial lumens** of rich, inviting **3000K Warm White (830)** light with a high color rendering index (**82 CRI**), it combines an advanced pulse-start firing arc tube with a long **15,000-hour rated service life**. Manufactured in Germany to precise OEM standards, this lamp is built exclusively for high-end **enclosed commercial track spots** and downlight fixtures.

The Round Powerball® Arc Chamber Advantage

Sylvania Metalarc® Powerball® lamps use a patented round ceramic arc cell configuration that completely re-engineers internal thermal dynamics. Unlike traditional cylindrical ceramic or quartz burners with cool corner areas, the spherical Powerball® capsule creates exceptionally uniform heat distribution. This reduces thermal stress, controls chemical migration, and achieves an elite efficacy of **92 lumens per watt (lm/W)**. This architecture ensures excellent color stability over the 15,000-hour runtime, keeping retail floors and galleries uniform without the color shifting common to older HID systems.

• Pulse Start Ignition: Engineered strictly for compatible electronic control gear or pulse-rated magnetic ballasts, accelerating warm-up cycles and preserving long-term lumen retention.
• Universal Burning Vector: Designed to fire and operate cleanly in any spatial orientation or tilting position without degradation of light output or color properties.
• Integrated UV Protection: Formulated with a specialized UV-Stop quartz outer glass jacket that filters harsh ultraviolet bands, drastically reducing color fading or yellowing on merchandise and displays.
• Chromaticity Coordinates: Lab-calibrated to rigorous spectral targets (X: 0.432, Y: 0.396) for crisp, repeatable warm white highlights across multi-fixture configurations.

Technical Specifications

• Brand: Sylvania
• Product Code / NAED: 64363 (Also maps to ordering reference number 64970)
• Ordering Abbreviation: MC39TC/U/G12/830
• Series / Family Name: Metalarc® Powerball® 800 Series
• Wattage: 39W
• ANSI Ballast Code: C130/E (Pulse Start / Electronic Control Gear Preferred)
• Bulb Profile: T6 Tubular (Clear Outer Capsule)
• Base Type: G12 (Single-Ended Ceramic Bi-Pin)
• Initial Lumens (at 25°C): 3,600 lm
• Color Temperature: 3000K (830 Warm White)
• Color Rendering Index (CRI): 82
• Maximum Overall Length (MOL): 3.937 Inches (100 mm)
• Bulb Diameter: 0.75 Inches (19 mm)
• Average Rated Lifespan: 15,000 Hours
• Operating Burn Position: Universal
• Manufacturing Origin: Germany

Premium Commercial Applications

• Retail Displays & Showrooms: Accents fine garments, luxury handbags, cosmetics, and jewelry with true-spectrum 3000K highlights that capture customer attention.
• Galleries & Architectural Features: Projects targeted point-source beams onto sculpture niches, feature walls, alcoves, and interior building facades.
• Recessed Downlights & Track Trims: Populates structured commercial ceiling grids inside corporate headquarters, hotel lobbies, and upscale automotive showrooms.

Hardware Installation & Safety Requirements

• Enclosed Luminaire Mandate: This lamp must be operated strictly within an **enclosed, E-type certified fixture** featuring tempered protective shielding capable of fully containing high-temperature ceramic fragments in the rare event of an internal arc capsule failure.
• Thermal Ballast Interlocking: Requires wiring to an ANSI-standard, thermally protected ballast. Sylvania recommends pairing with high-frequency electronic control gears to optimize performance metrics and prevent acoustic arc resonance.

Critical Radiation Safeguard Warning
