Product Overview

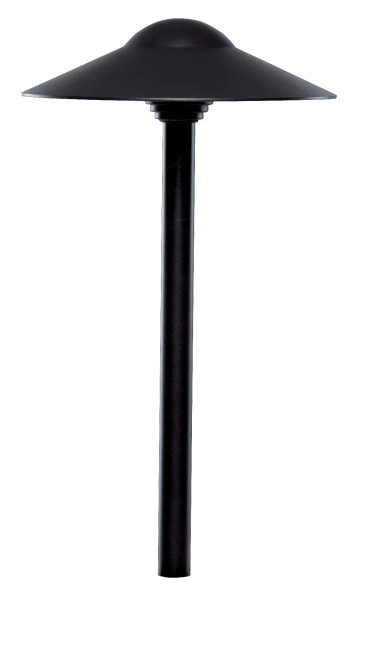

Sollos 915021 PDO083-TB-12 – 8.3" Dome Hat | Textured Black | 12V Low-Voltage Landscape Path Light | Lamp Not Included
The Sollos 915021 (PDO083-TB-12) is a 12V low-voltage outdoor landscape path light featuring a 8.3" Dome Hat in Textured Black finish, mounted on a 12" stem with an 8″ ground stake included. The die-cast aluminum housing accepts a Sollos JC-series low-voltage lamp (sold separately) and ships pre-wired with a 36″ 18-2 lead and two DryConn™ waterproof connectors. Please verify lamp selection and transformer compatibility before ordering.
Voltage 12V AC/DC Low-voltage | Style 8.3" Dome Hat Dome series | Stem 12" Adjustable aim | Finish Textured Black Die-cast aluminum | Listed ETL / CSA UL 1838 & C22.2 |
Technical Specifications
| Brand | Sollos (a Hayward brand) |
| Catalog Number | 915021 |
| Model Number / MPN | PDO083-TB-12 |
| Hat Style / Size | 8.3" Dome Hat |
| Stem Length | 12" |
| Finish | Textured Black |
| Housing Material | Die-cast aluminum |
| Voltage | 12V AC/DC |
| Lamp Socket | G4 bi-pin (JC-series landscape lamp) |
| Max Lamp Wattage | See Sollos lamp tables for JC-series recommendations |
| Mounting | 8″ corrosion-resistant ground stake (included) |
| Lead Wire | 36″ 18-2 pre-wired |
| Connectors | Two (2) King® DryConn™ waterproof connectors |
| Certifications | ETL Listed to UL 1838; CSA C22.2 No. 250.7 |
| Lamp Included | No – sold separately |
| Carton Quantity | 1 |
Product Overview
The Sollos 915021 is a 8.3" Dome Hat low-voltage landscape path light in Textured Black finish, built for long-term outdoor performance on 12V low-voltage landscape lighting systems. The die-cast aluminum housing resists corrosion, and the UV-resistant finish maintains color and texture in outdoor exposure conditions.
An 8″ ground stake and pre-wired 36″ 18-2 lead with DryConn™ waterproof connectors are included, enabling direct integration into any standard 12V low-voltage landscape run. The 12" stem height keeps the hat at an appropriate mounting level for typical pathway and garden border applications.
Sollos offers kitted versions of many path light models that include a matched LED lamp; see the kitted variants for a plug-and-play option, or choose from Sollos JC-series low-voltage lamps to customize color temperature and beam output.
Compatible Applications
- Pathway and walkway lighting
- Garden border and planting bed illumination
- Driveway edge and entry lighting
- Low-voltage 12V landscape lighting systems
Before Ordering – Verify
- Lamp not included — order a compatible Sollos JC-series 12V landscape lamp separately; kitted versions (with LED lamp included) are also available for this model family
- Confirm transformer capacity; Sollos offers 100W, 150W, 300W, and 600W transformers
- Account for voltage drop on long cable runs; JC-series lamps are rated for 10–15V or 10–18V input
- Also available in kitted versions with matched LED lamps for a complete ready-to-install solution; other stem lengths and finishes may also be available in the same hat series
Safety and Installation Guidelines
- Disconnect the low-voltage transformer from line power before making any wiring connections or lamp changes
- Ensure all DryConn™ connectors are fully sealed at cable splice points
- Install the ground stake firmly to prevent the fixture from shifting after installation
- Do not exceed the lamp manufacturer’s maximum wattage rating for the socket
- Allow the fixture to cool before handling if recently in operation
Compliance
- ETL Listed to UL 1838
- CSA C22.2 No. 250.7 Listed
- Suitable for outdoor landscape use; verify wet location rating for specific installation environments
Ordering Information
- Catalog Number: 915021
- Model Number: PDO083-TB-12
- Finish: Textured Black
- Lamp Included: No
- Carton Quantity: 1
For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
