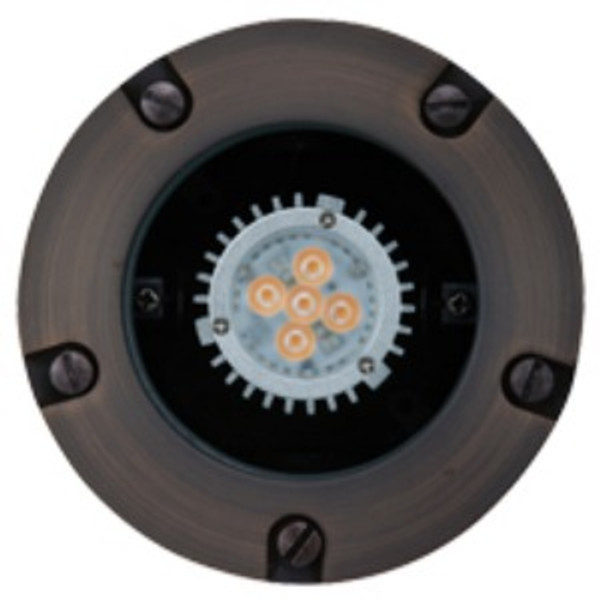

Sollos IGT049-AB 996132 In-Ground Light with Trim Ring Antique Brass

Sollos IGT049-AB (996132) In-Ground Light with Trim Ring – Antique Brass

The Sollos IGT049-AB (product number 996132) is a 12V AC low-voltage in-ground light with trim ring with a stake-mount body, finished in Antique Brass. It uses a shock- and heat-resistant clear tempered glass and a MR16 GU5.3 bi-pin socket rated for lamps up to 50W, and ships with 3 ft. 18-2 lead wire. This is a fixture-only assembly; the lamp is ordered separately. Confirm finish, socket type, and transformer capacity before ordering.

Technical Specifications

Product Overview

The Sollos In-Ground Light with Trim Ring is finished in Antique Brass UV- and corrosion-resistant powder coat over single-piece compression molded polyester composite. It uses shock- and heat-resistant clear tempered glass and a MR16 GU5.3 bi-pin socket rated for lamps up to 50W.

The fixture ships with 3 ft. 18-2 lead wire. It operates on a 12V AC landscape transformer, which is ordered separately along with a MR16 GU5.3 bi-pin lamp.

Compatible Applications

• Flush-mounted uplighting for trees, walls, and hardscape features
• Driveway and walkway accent lighting
• Sand or gravel installation only

Before Ordering – Verify

• This is a 12V AC low-voltage fixture. It will be destroyed if connected to 120V line voltage. A 12V landscape transformer is required and is not included.
• Socket is MR16 GU5.3 bi-pin. Confirm any replacement lamp uses the same base – MR16 GU5.3, G4/GY6.35, MR11 GU4, and PAR36 MP-terminal lamps are not interchangeable.
• The lamp is not included. Order a MR16 GU5.3 bi-pin lamp separately, 50W maximum.
• Confirm finish: this item is Antique Brass. Antique Brass, Natural Copper, Stainless Steel, and Composite Black finishes carry a lifetime warranty; Textured Black and Textured Bronze carry a 5-year warranty.
• Total the wattage of every fixture on the run and size the transformer accordingly, allowing headroom for future additions.

Safety and Handling Guidelines

• De-energize the transformer before wiring, relamping, or servicing the fixture.
• Install only in sand or gravel per the manufacturer's instructions; this fixture is not rated for direct burial in concrete.
• Bury or otherwise protect the low-voltage cable run to prevent damage from mowers, edgers, and digging.
• Do not exceed the 50W maximum lamp rating. Overlamping causes excess heat, socket damage, and lens degradation.
• Keep the lens clear of mulch, soil, and dense foliage so heat can dissipate.
• This fixture contains no mercury; LED lamps are mercury-free.

Compliance

• ETL Listed to UL 1838 (Low Voltage Landscape Lighting Systems) and CSA C22.2 No. 250.7.
• Intended for use on Class 2 / low-voltage landscape lighting circuits supplied by a listed 12V landscape transformer.
• Install in accordance with the National Electrical Code and all applicable local codes; NEC Article 411 governs low-voltage lighting systems.
• Mercury-free product. RoHS-compliant construction.
• All specifications are subject to change by the manufacturer; the current Sollos published specification governs.

Ordering Information

• Order code: IGT049-AB  |  Sollos product number: 996132  |  ADL Supply SKU: SOLL996132
• Configuration: In-Ground Light with Trim Ring, Antique Brass, 12V AC, MR16 GU5.3 bi-pin, 50W max.
• Supplied as fixture only. Lamp ordered separately.
• Mounting: Adjustable lamp bracket, +/-15° tilt; for sand/gravel install, not for use in concrete.
• Warranty: Lifetime limited warranty on Antique Brass finish.

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
