Sollos PSH040-TZ-12 913023 Straight Hat Path Light 4" Hat 12" Stem Textured Bronze

Sollos PSH040-TZ-12 (913023) Straight Hat Path Light – 4" Hat, 12" Stem, Textured Bronze

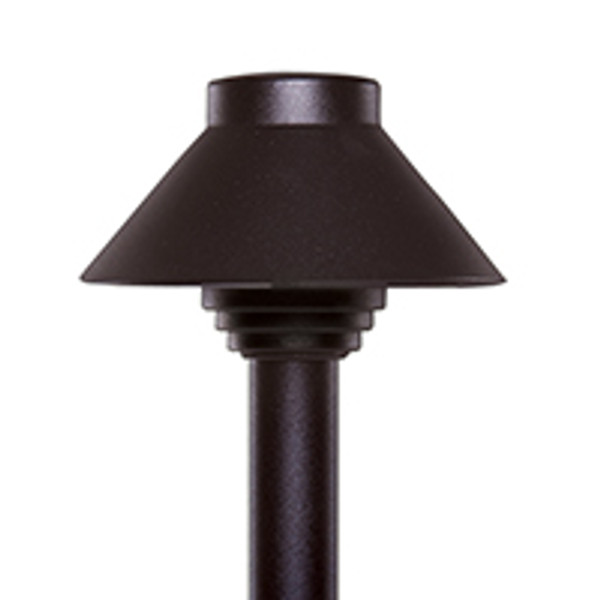

The Sollos PSH040-TZ-12 (product number 913023) is a 12V AC low-voltage straight hat path light built on an architectural aluminum housing with a 4" diameter hat, a 12" stem, and a Textured Bronze powder-coat finish. The fixture uses a clear polycarbonate lens and a G4/GY6.35 bi-pin socket rated for lamps up to 20 watts, and ships with a 3 ft. 18-2 lead wire, waterproof wire connectors, and an 8" ground stake. This is a fixture-only assembly; the lamp is ordered separately. Confirm hat diameter, stem length, finish, socket type, and transformer capacity before ordering.

Technical Specifications

Product Overview

The Sollos PSH family is the straight hat version of the company's path light line. The 4" hat sits on a straight-profile stem and directs light downward and outward onto walkways, borders, and planting beds while shielding the lamp from direct view. The 12" stem sets the mounting height; shorter stems concentrate a tighter, brighter pool of light close to the fixture, while longer stems spread a wider, softer pattern and cover more linear feet per fixture.

The housing, hat, and collar are architectural aluminum finished in Textured Bronze UV-resistant powder coat. The collar is stepped and threaded so the hat can be removed by hand for relamping without tools, and a clear polycarbonate lens protects the lamp behind it. The ceramic G4/GY6.35 bi-pin socket accepts JC bi-pin lamps up to 20 watts, which covers both traditional halogen JC lamps and the full range of Sollos ProLED JC-series LED lamps.

The fixture ships with a 3 ft. 18-2 lead wire, waterproof wire connectors, and an 8" ground stake. It operates on a 12V AC landscape transformer, which is ordered separately along with the lamp. Sollos commercial, integrated, and Bluetooth-controlled smart transformers are all compatible; size the transformer to the total connected load of the run.

Compatible Applications

• Residential and commercial walkway, driveway, and garden path lighting
• Planting bed, border, and shrub-line illumination
• Hospitality, multifamily, and HOA common-area landscape lighting
• Entry approaches, courtyards, and patio perimeters
• Wayfinding and step-approach lighting on 12V AC landscape circuits
• Retrofit replacement for existing 12V bi-pin path fixtures on an established low-voltage run

Before Ordering – Verify

• This is a 12V AC low-voltage fixture. It will be destroyed if connected to 120V line voltage. A 12V landscape transformer is required and is not included.
• Socket is G4 / GY6.35 bi-pin. It is not a GU5.3 MR16 socket and not a GU10 socket. MR16 and GU10 lamps will not fit this fixture.
• The lamp is not included. Order a JC G4/GY6.35 bi-pin lamp separately, 20W maximum.
• Confirm hat diameter (4") and stem length (12"). The PSH family is offered in 4", 5.5", 7.5", and 9" hats and 12", 15", and 18" stems; not every hat and stem combination is built.
• Confirm the finish code: TB is Textured Black and TZ is Textured Bronze. This item is Textured Bronze.
• Total the wattage of every fixture on the run and size the transformer accordingly, allowing headroom for future additions.
• Sollos ProLED lamps are marked as dimmable but may not be compatible with every dimming system; test on the actual circuit before completing a full installation.
• Other stem lengths and finishes in the same 4" hat size: PSH040-TB-12 (913021), PSH040-TB-12 (913021S), PSH040-TB-15 (913028), PSH040-TZ-15 (913030).
• Other hat diameters with the same 12" stem in Textured Bronze: PSH055-TZ-12 (910023, 5.5" hat).

Safety and Handling Guidelines

• De-energize the transformer before wiring, relamping, or servicing the fixture.
• Make all splices with the supplied waterproof connectors and keep connections out of standing water.
• Bury or otherwise protect the low-voltage cable run to prevent damage from mowers, edgers, and digging.
• Allow halogen JC lamps to cool completely before handling; do not touch quartz halogen lamp envelopes with bare fingers, as skin oils shorten lamp life.
• Do not exceed the 20W maximum lamp rating. Overlamping causes excess heat, socket damage, and lens degradation.
• Drive the ground stake into soil only; do not hammer on the fixture housing, stem, or hat.
• Keep the hat and lens clear of mulch, soil, and dense foliage so heat can dissipate.
• This fixture contains no mercury and no lamp is required to contain mercury; LED and halogen JC lamps are mercury-free.

Compliance

• ETL Listed to UL 1838 (Low Voltage Landscape Lighting Systems) and CSA C22.2 No. 250.7.
• Intended for use on Class 2 / low-voltage landscape lighting circuits supplied by a listed 12V landscape transformer.
• Install in accordance with the National Electrical Code and all applicable local codes; NEC Article 411 governs low-voltage lighting systems.
• Sollos does not publish an IP ingress rating for the PSH fixture body. Where a lamp will be directly exposed to rain or irrigation spray, specify a Sollos IP65-rated ProLED JC lamp.
• Mercury-free product. RoHS-compliant construction.
• All specifications are subject to change by the manufacturer; the current Sollos published specification governs.

Ordering Information

• Order code: PSH040-TZ-12  |  Sollos product number: 913023  |  ADL Supply SKU: SOLL913023
• Configuration: 4" straight hat, 12" stem, Textured Bronze, 12V AC, G4/GY6.35 bi-pin, 20W max.
• Supplied as fixture only. Lamp ordered separately.
• Included with every fixture: 8" ground stake, 3 ft. 18-2 lead wire, waterproof wire connectors.
• Compatible Sollos ProLED lamp options (G4 / GY6.35 bi-pin, order separately): JC10/1WW/LED (80693, 1.5W, 3000K, 150 lm); JC20/2WW/LED (80690, 2.4W, 3000K, 250 lm); JC20/2NW/LED (80815, 2.4W, 5000K, 260 lm); JC35/4WW/LED (80830, 4.5W, GY6.35, 3000K, 450 lm); JC50/5WW/LED (81997, 5.5W, GY6.35, 3000K, 550 lm); JC3VWFL/827/LED (81078, 3.3W, 2700K, 200 lm).
• IP65-rated ProLED lamp options for direct water exposure: JC3/830/OMNI/IP65/LED (81996, 2W, 3000K, 300 lm); JC2/827/LED2 (81109, 2.3W, 2700K, 250 lm); JC20/2WW/LED2 (81108, 2.3W, 3000K, 250 lm).
• Transformers ordered separately: TR15SS-150 / TR15SS-300 / TR15SS-600 commercial, TR12PC-INT-100 through TR15SS-INT-300 integrated, and TR14ST-150 smart Bluetooth.
• Accessories: GS08 8" replacement ground stake, RSR series 12" and 18" fixture risers, SEC-182-25 25 ft. extension cable.
• Warranty: 5-year limited warranty on Sollos aluminum fixtures.
• Other stem lengths and finishes in the same 4" hat size: PSH040-TB-12 (913021), PSH040-TB-12 (913021S), PSH040-TB-15 (913028), PSH040-TZ-15 (913030).
• Other hat diameters with the same 12" stem in Textured Bronze: PSH055-TZ-12 (910023, 5.5" hat).

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
