Product Overview

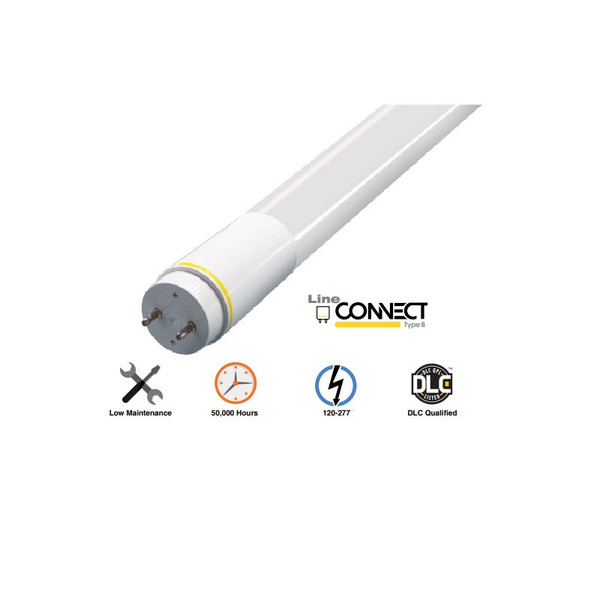

HALCO 84872 T824FR7/840/BYP4/DSE/LED - Halco ProLED T8 Type B Double/Single-Ended Bypass LED Lamp, 7W G13, 4000K, 50000+hr Life
The HALCO 84872 T824FR7/840/BYP4/DSE/LED is a Halco ProLED T8 Type B (ballast bypass) LED lamp rated at 7W on a G13 Medium Bi-Pin base, with a Glass Lens construction, and 4000K color temperature. It is rated for 50,000+ hours average life.
This lamp should be selected by matching the Halco product number, wattage, base type, and lamp length to the existing lamp or fixture being replaced.
Wattage 7W G13 Medium Bi-Pin | Color Temp 4000K CRI 83 | Lumens 950 Initial | Rated Life 50000+ Hours | Efficacy 136 Lumens/Watt |
Product Overview
Halco ProLED T8 Type B lamps are a reliable, efficient linear fluorescent T8 replacement with ballast-bypass wiring for either single- or double-ended line voltage input in a single LED lamp — no external ballast required.
Technical Specifications
| Brand | Halco (ProLED) |
| Halco Product Number | 84872 |
| Product Code | T824FR7/840/BYP4/DSE/LED |
| Product Family | T8 Type B Double/Single-Ended (DSE) Ballast Bypass |
| Wattage | 7 W |
| Equivalent Fluorescent Wattage | 17 W |
| Bulb | T8 |
| Base | Medium Bi-Pin (G13) |
| Construction | Glass Lens, Frosted |
| Beam Spread | 160° |
| Average Rated Life | 50,000+ hours |
| Initial Lumens | 950 |
| CRI | 83 |
| Color Temperature | 4000K |
| Luminous Efficacy | 136 LPW |
| Power Factor | 0.98 |
| Voltage | 120-277V |
| Standard Package (Master Carton) Quantity | 25 |
| HTS / Tariff Code | 8539.52.0000 |
| Warranty | 5 Years |
Manufacturer Notes:
- This is a Type B ballast-bypass lamp: the existing ballast must be removed (not merely disconnected). A thermal limitation will shut the lamp off automatically if it detects a ballast still connected. Wire for double-ended power only, and do not use with dimmers.
Key Features
- Internal digital protection system for safety and convenience during installation and servicing.
- Works with shunted or non-shunted lamp holders.
- Uses 52% less energy than a standard fluorescent T8 and lasts up to 66% longer.
- Suitable for use in totally enclosed luminaires.
Compatible Applications
- Commercial troffers
- High bay luminaires
- Educational facilities
- Office general lighting
- Hospitality lighting
- Maintenance replacement where Halco product number 84872 is specified
Before Ordering – Verify
- Exact Halco Product Number: Match 84872 (T824FR7/840/BYP4/DSE/LED) to the existing lamp label or fixture documentation.
- Base Type: Confirm the fixture socket matches a Medium Bi-Pin (G13) base.
- Wattage/Voltage: Confirm the line voltage is rated for 7W at 120-277V.
- Ballast Bypass Wiring: Confirm the existing ballast will be fully removed and the fixture wired for double-ended power before installing this lamp.
- Lamp Length: Confirm the fixture accepts a 24" (MOL) T8 lamp.
Safety & Installation Guidelines
- Qualified Installation: Disconnect power at the breaker before installation. LED retrofit installation requires knowledge of luminaire electrical systems — if not qualified, contact a licensed electrician.
- Ballast Removal: This is a Type B (ballast bypass) lamp — the existing ballast (and starter, if present) must be fully removed, not just bypassed. Wire for double-ended power only, per Halco’s installation guide.
- Not for Dimmers or Emergency Exits: Do not use with dimmers. This lamp is not intended for use with emergency exit fixtures.
- Marking: Mark the retrofitted luminaire "This luminaire has been modified to operate LED lamps. Do not attempt to install or operate fluorescent lamps in this luminaire," per code.
- Disposal: Dispose of the removed ballast and fluorescent lamps per local government regulations.
