Product Overview

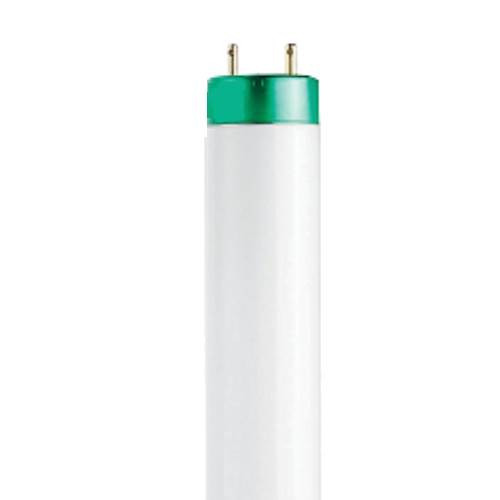

Philips 16.5T8 LED/48-4000 20/1 DC Driver 16.5W T8 4000K 4ft LED Replacement Lamp
General Specifications
Bulb Type: T8 LED
Wattage: 16.5W
Base Type: G13 Medium Bi-Pin
Color Temperature: 4000K (Cool White)
Luminous Flux: 2,100 lm
Luminous Efficacy: 127.27 lm/W
Color Rendering Index (CRI): 82
Product Code 458125
Product Description 16.5T8 LED/48-4000 20/1 DC Driver
Electrical Specifications
Voltage Range: 25-27V
Input Frequency: 50-60 Hz
Power Factor: 0.9
Power Consumption: 16.5W
Energy Consumption: 21 kWh/1000h
Dimmable: Yes
Performance Data
Rated Average Life: 50,000 hours
Switching Cycles: 50,000
Beam Angle: 160°
Start Time: <0.5 seconds
Warm-up Time: Instant full light
LLMF at End of Lifetime: 70%
Physical Specifications
Length: 47-1/4 inch
Bulb Shape: Tube, double-ended
Operating Temp Range: -4°F to 113°F (-20°C to 45°C)
T-Case Maximum: 113°F (45°C)
EU RoHS Compliant: Yes
Key Features & Benefits
Energy Efficiency
- 127.27 lm/W efficacy rating
- 21 kWh/1000h energy consumption
- Significant energy savings vs traditional lighting
- Energy Saving Product certified
Eco-Friendly Design
- Mercury-free construction
- Safe, non-hazardous disposal
- EU RoHS compliant materials
- Glass-free design enhances safety
Superior Light Quality
- Stable 4000K color temperature
- CRI 82 for accurate color rendering
- Flicker-free operation
- Instant full brightness
Compatibility & Integration
- Works with Philips Xitanium SR LED Driver
- Compatible with Philips Bodine emergency drivers
- Dimmable functionality
- Easy integration into existing systems
Warnings and Safety
Perform a visual inspection to ensure lamp holders (or sockets) are not damaged or loose. If the lamp holders (or sockets) are damaged, corroded, charred, blackened or loose, contact a qualified electrician for proper replacement.
Order Information
Order Product Name
16.5T8 LED/48-4000 20/1 DC Driver
Full Product Name
16.5T8 LED/48-4000 20/1 DC Driver
Order Code
458125
Material Nr. (12NC)
929001175104
EAN/UPC (Product)
046677458126
EAN/UPC (Case)
50046677458121
Certifications & Compliance
UL Certified DLC Listed RoHS Compliant ENERGY STAR ISTMT Certified CE Marking KEMA Keur
Backed by Philips 5-year limited warranty
