Philips 473942 13T8 LED/48-4000 IF DIM

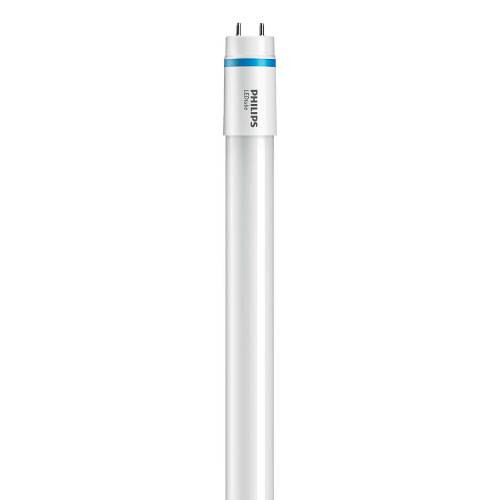

Philips 473942 MasterClass LEDtube InstantFit T8 – 13W 4 ft T8 LED Tube | 2100 Lumens | 4000K | 82 CRI | G13 Base | UL Type A Ballast Compatible | Dimmable | 70,000 Hour Life

The Philips 473942 MasterClass LEDtube InstantFit T8 is a 13W 4 ft T8 LED tube on a G13 medium bi-pin base, producing 2100 lumens at 4000K with 82 CRI — a calculated 161 lm/W. It is an InstantFit lamp, meaning it operates on the existing fluorescent ballast with no rewiring. Construction is shatter-resistant polycarbonate. Nominal lifetime is 70,000 hours, also stated as B50L70 at 70,000 hours, backed by a standard 7-year limited warranty. The lamp is dimmable and runs on 120–277V or 347V.

Technical Specifications

Product Overview

MasterClass is the top tier of the Philips TLED range, and the specification that defines it is life: 70,000 hours nominal, stated as B50L70 at the same figure, meaning 50% of a population still delivers 70% of initial output at that point. That is roughly twice the life of a mid-tier LED tube and the reason MasterClass gets specified where lamp replacement labor is expensive — high ceilings, occupied clinical space, anywhere a lift and a permit are involved. Philips backs it with a standard 7-year limited warranty.

This is an InstantFit lamp, which means it runs on the fluorescent ballast already in the fixture. Nothing is rewired, no ballast is removed, and the fixture needs no relabeling — a maintenance technician pulls the fluorescent tube and drops in the LED. The tradeoff is that ballast compatibility has to be confirmed, because the lamp draws between 130 and 400 mA depending on what is driving it and accepts an input frequency anywhere from 20 kHz to 120 kHz.

Output is 2100 lumens from 13 W at 4000K and 82 CRI, working out to about 161 lumens per watt. The body is shatter-resistant polycarbonate rather than glass, which matters in food preparation, gymnasium, and clinical areas where glass breakage is a hazard. The lamp is dimmable, starts in half a second, and reaches 60% output in the same half second. It accepts 120–277V and also 347V, which covers Canadian commercial distribution as well as standard North American systems.

Compatible Applications

• Commercial office lighting in recessed troffers, wraps, and strip fixtures
• High-ceiling and hard-to-access fixtures where relamping labor dominates cost
• Fluorescent-to-LED conversions where fixtures cannot be taken out of service for rewiring
• Food preparation, gymnasium, and clinical areas requiring shatter-resistant construction
• Educational facilities, healthcare corridors, and institutional buildings
• Existing 4 ft T8 fixtures with G13 lampholders on a compatible fluorescent ballast
• Dimmed circuits, subject to confirming the ballast and control combination
• Facilities on 347V distribution as well as 120–277V systems
• Occupancy-sensor controlled spaces, given the 50,000-cycle switching rating
• Projects pursuing DLC-based utility rebates, with the specific model confirmed qualified

Before Ordering – Verify

• Confirm the existing ballast is compatible. This is an InstantFit lamp that operates on the fluorescent ballast already in the fixture. Check the specific ballast against Philips’ compatibility list before committing to a large order — compatibility is by ballast model, not by ballast type alone.
• Do not install this lamp in a fixture whose ballast has been removed or bypassed. That configuration requires a ballast-bypass lamp.
• If dimming is required, confirm the ballast and control combination. The lamp is dimmable, but on an InstantFit product the dimming is delivered through the ballast, so the ballast must be a dimming type and the pairing must be validated.
• Confirm the lampholder is G13 and the fixture accepts a 1200 mm / 47-1/4 in. lamp.
• Confirm the supply is within 120–277V or is 347V.
• Confirm the ambient stays within -20 °C to 45 °C and the case temperature at or below 50 °C.
• Confirm the color temperature. This lamp is 4000K.
• Confirm remaining ballast life. An InstantFit lamp is only as reliable as the ballast driving it, and at 70,000 hours the lamp will very likely outlast two ballasts.
• If a rebate depends on DLC qualification, confirm the exact model on the DesignLights Consortium qualified products list before purchase.
• This item is packed 1 lamp per pack, 10 packs per outer box.

Safety and Handling Guidelines

• Switch off the circuit before relamping.
• Allow the outgoing fluorescent lamp to cool before removal.
• Seat both bi-pin ends fully and rotate the lamp until it locks in the lampholder.
• Do not install in a fixture whose ballast has been removed or bypassed.
• Do not operate outside the -20 °C to 45 °C ambient rating, and ensure the fixture keeps case temperature at or below 50 °C.
• Recycle or dispose of removed fluorescent lamps according to local regulations, as they contain mercury. This LED replacement contains none.
• Although the polycarbonate body is shatter-resistant, handle the lamp with normal care and do not use it if the end caps or body are damaged.
• Relamping should follow all applicable national and local electrical codes.

Compliance

• UL certificate
• RoHS compliance, RoHS mark
• DLC compliance per the manufacturer’s approbation marks; confirm the specific model at qpl.designlights.org
• Classified by the manufacturer as an energy saving product
• Nominal lifetime of 70,000 hours, with B50L70 also stated at 70,000 hours
• Lumen maintenance of 70% at end of nominal lifetime
• Color consistency within 6 SDCM
• Standard 7-year limited warranty
• Contains no mercury
• Specifications per the Philips product datasheet dated 2019, April 2; data subject to change

Ordering Information

• Order code: 473942
• Order product name: 13T8 LED/48-4000 IF DIM 1PK 10/1
• Material Nr. (12NC): 929001397804
• Model number: 9290013978
• EAN/UPC, product: 046677473945
• Packaging: 1 lamp per pack, 10 packs per outer box
• Net weight: 0.230 kg per piece
• No ballast or driver is supplied; this lamp uses the ballast already in the fixture
• Case and project quantities available

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
