Sylvania LED9T8L24FG850BF #75016

Sylvania 75016 LED9T8L24FG850BF — LEDlescent™ 2 ft T8 Ballast-Free LED Tube, 9W, 1100 Lumens, 5000K, 120-277V

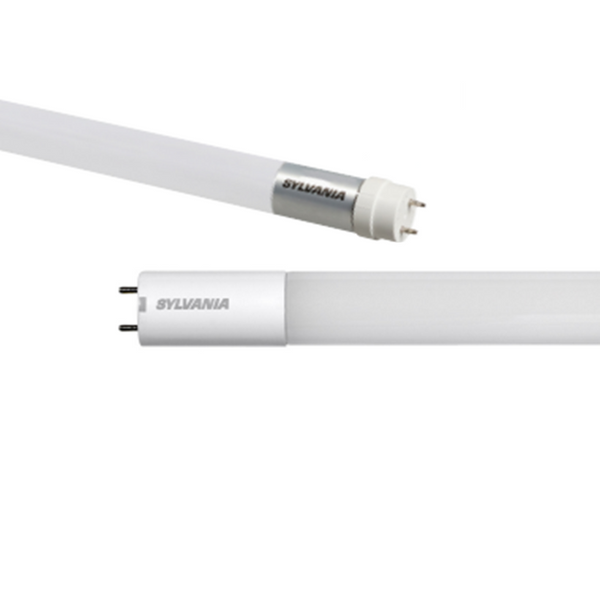

The Sylvania LED9T8/L24/FG/850/BF (item number 75016) is a 2 ft LEDlescent™ T8 ballast-free LED tube with a G13 medium bi-pin base and optimized frosted glass optics. It has an internal driver and operates directly on 120-277V with no ballast required — the existing ballast is bypassed. The lamp draws 9W and produces 1100 lumens at 5000K and 82 CRI, with a rated life of 50,000 hours to L70 and a 5-year limited warranty (24/7 operation). It is double-ended and wired end to end, works with shunted and non-shunted sockets, is polarity neutral, and is non-dimmable. Because the fixture must be rewired for line voltage, confirm the wiring plan, socket condition, and fixture length before ordering.

Technical Specifications

Product Overview

LEDlescent T8 Ballast-Free lamps are an energy-saving alternative designed to replace traditional fluorescent T8 and T12 lamps by bypassing the existing ballast. They contain no mercury, provide instant light and a uniform light distribution, and are engineered to operate directly on 120-277V, which minimizes labor and recycling costs. They can be used with occupancy and vacancy sensors for enhanced energy savings.

A patented internal safety switch is built into the lamp. The lamp is double ended and wired end to end, works with shunted and non-shunted sockets, and is polarity neutral, so it can be installed in either direction.

Because the lamp is UL Classified as a luminaire conversion retrofit kit under UL 1598C, the UL rating of the existing fixture is not voided when the fixture is electrically modified, provided the installer follows the installation instructions included with the lamps.

This order code is factory-set to 5000K at 1100 lumens (9W). Other color temperatures in the same 2 ft 9W family are LED9T8/L24/FG/830/BF (3000K, item 75013), LED9T8/L24/FG/835/BF (3500K, item 75014), LED9T8/L24/FG/841/BF (4100K, item 75015).

Compatible Applications

• Cove lighting
• Display cases
• General illumination
• Parking garages
• Tunnels
• Replacement of fluorescent T8 and T12 lamps where the ballast is being removed
• Spaces using occupancy or vacancy sensors
• Dry and damp locations; open and enclosed fixtures

Before Ordering — Verify

• Confirm the fixture will be rewired for line voltage with the ballast bypassed. This is a ballast-free lamp and does not operate on a fluorescent ballast.
• Confirm socket condition. Lamp holders should be in good operating condition. Shunted and non-shunted sockets are both acceptable; tie socket leads together for non-shunted sockets.
• This lamp is non-dimmable. Do not use it with dimmers.
• Confirm supply voltage is within 120-277V.
• Confirm fixture length. This is a 2 ft lamp with an overall length of 23.72" ± 0.055" (602.6mm ± 1.4mm).
• Color temperature — this item is 5000K. Siblings in the same family: LED9T8/L24/FG/830/BF (3000K, item 75013), LED9T8/L24/FG/835/BF (3500K, item 75014), LED9T8/L24/FG/841/BF (4100K, item 75015).
• Confirm ambient conditions stay within -4°F to 113°F (-20°C to 45°C) and the case stays below 158°F (70°C).
• Confirm package quantity — this item is supplied 25 per package.
• This datasheet (LED502R2 9-17) lists this item as DLC. A later datasheet revision (LED502R20 11-24) shows the 2 ft 9W item 75013 as not DLC and to be discontinued when inventory is depleted, so confirm current DLC status and availability at qpl.designlights.org or with the factory before relying on this for a utility rebate.

Safety and Handling Guidelines

• Turn off power at the breaker before installing, inspecting, or maintaining lamps. Ballast-bypass rewiring places line voltage at the sockets.
• Install and operate in compliance with the National Electrical Code, Underwriters Laboratories requirements, and all applicable local codes.
• Read and comply with all instructions before attempting installation.
• Do not expose wiring to edges of sheet metal or other sharp objects. Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation.
• This lamp has a glass body. Handle by the end caps, avoid impact, and do not install a lamp with visible damage.
• Operate only in dry or damp locations. The lamp must not come into direct contact with water.
• Ensure the fixture allows the case to remain below its 158°F (70°C) maximum temperature.
• This lamp contains no mercury and emits no UV. Recycle or dispose of it in accordance with local requirements.

Compliance

• cUL listed (certification mark shown on the datasheet).
• UL Classified as a luminaire conversion retrofit kit under UL 1598C, so the existing fixture's UL rating is not voided when it is electrically modified, provided the supplied instructions are followed.
• FCC Title 47 CFR Part 18, Non-Consumer.
• No UV emission; mercury free.
• 5-year limited lamp warranty based on 24/7 operation.
• DLC status per this datasheet: listed. Confirm current qualification at qpl.designlights.org.

Ordering Information

• Item Number: 75016
• Ordering Abbreviation: LED9T8/L24/FG/850/BF
• UPC: 046135750168
• Brand: Sylvania (LEDVANCE)
• Lamp: 2 ft T8, G13 medium bi-pin, 9W, 1100 lm, 5000K, 82 CRI
• Voltage: 120-277V line voltage, internal driver
• Rated Life: 50,000 hours (L70)
• Dimming: Non-dimmable
• Package Quantity: 25

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
