Halco ProLED SekTor SAL-100-T2-40-U 100050 100W Area Light Type II 4000K

Halco ProLED SekTor SAL-100-T2-40-U (100050) – 100W Area Light, Type II, 4000K

The Halco ProLED SekTor SAL-100-T2-40-U (Halco product 100050) is a 100W SekTor Area Light with Type II distribution at 4000K, delivering 14,644 lumens at 146 LPW. It uses a two-piece die-cast aluminum housing with polycarbonate TIR optics, runs on Universal 120-277VAC (base "U" driver); 277-480VAC available with "H" voltage code (includes 10kVA surge suppression automatically), and ships without a mounting arm (ordered separately). Confirm wattage, distribution type, CCT, and mounting arm before ordering.

Technical Specifications

Product Overview

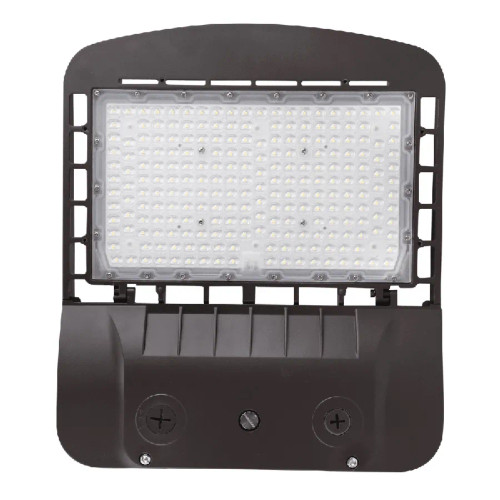

The SekTor Area Light offers a modern, sleek diecast design that optimizes heat dissipation and thermal flow. Precision TIR optics illuminate the entire optical aperture for visual comfort without sacrificing performance. This 100W model in Type II distribution at 4000K delivers 14,644 lumens at 146 LPW, with a B2 U0 G2 BUG rating for this specific configuration.

The fixture comes standard with a pre-installed, easy-access controls port that readily accepts the quick-connect DC motion sensor. With multiple installer-friendly mounting options (slipfitter, trunnion, quick mount arm, or adjustable pole mount, all ordered separately) and hundreds of possible configurations, the SekTor Area Light suits almost any site lighting application.

Compatible Applications

• General outdoor area and site lighting
• Auto dealerships
• Parking lots
• Roadway lighting
• Security lighting
• Campuses

Before Ordering – Verify

• A mounting arm is not included and must be ordered separately. Options are SEK-SF (slipfit knuckle, fits 2-3/8" tenon), SEK-TR (trunnion), SEK-QM (fixed quick mount arm, fits 3"–6" square/round poles), or SEK-PM (adjustable pole mount, fits 3"–6" square/round poles).
• Confirm distribution type: this is Type II. The series also offers Type II, III, IV, and V depending on wattage – confirm the correct beam pattern for the pole spacing and coverage area.
• Confirm CCT: this order code is 4000K. Both 4000K and 5000K are available across the series.
• Lumens and efficacy vary by wattage, distribution, and CCT – use the specific figures above (14,644 lm, 146 LPW, B2 U0 G2), not general series-wide ranges, when calculating a lighting layout.
• For 277-480VAC ("H" voltage) fixtures, 10kVA surge suppression is automatically included – no separate SPD accessory is needed for those configurations.
• Backlight shields and side shields are sized in two tiers (100W-150W vs. 200W-300W) – confirm the correct size for this wattage before ordering either accessory.

Safety and Handling Guidelines

• De-energize the circuit before installing, wiring accessories, or servicing the fixture.
• Confirm the mounting arm and pole/structure are rated for the combined weight and wind load of the fixture at the intended height.
• IP65 rated and UL Wet Location listed for outdoor use; confirm gasket and seal integrity at installation.
• If wiring a DC motion sensor or photocell, follow Halco's published wiring instructions.
• Aim and tilt per a qualified lighting layout to avoid light trespass and glare, especially for Type V (all-directional) distributions.

Compliance

• Listings: cULus, DLC Premium, FCC, RoHS Compliant.
• IP65 Rated, UL Wet Location, 3G Rated.
• BUG rating for this configuration: B2 U0 G2.
• DLC Premium listed – may qualify for utility rebate programs; confirm current DLC listing status before quoting a rebate-dependent project.
• All specifications are subject to change by the manufacturer; the current Halco published specification governs.

Ordering Information

• Product code: SAL-100-T2-40-U  |  Halco product number: 100050  |  ADL Supply SKU: HAL100050
• Configuration: 100W, Type II, 4000K, Universal 120-277VAC (base "U" driver); 277-480VAC available with "H" voltage code (includes 10kVA surge suppression automatically), 14,644 lm at 146 LPW, BUG B2 U0 G2.
• Mounting arms (sold separately): SEK-SF slipfit knuckle (24870), SEK-TR trunnion (24872), SEK-QM fixed quick mount arm (24871), SEK-PM adjustable pole mount (24908).
• Accessories (sold separately): DCMS DC bi-level motion sensor (24875) with DCMS-REM remote (24876); SAL-BLS-SM/SAL-BLS-L backlight shields (100W-150W / 200W-300W); SAL-SS-SM/SAL-SS-L side shields (100W-150W / 200W-300W); PC/JL205C 120-277VAC twist-lock photocell; PC/TW480V 480V twist-lock photocell.
• Warranty: 5-year standard limited warranty (Halco).

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
