HALCO90380 LWA-2-WS-CS-U

HALCO 90380 LWA-2-WS-CS-U – ProLED Select Linear Architectural Wrap, 2FT, 15W-25W Selectable Wattage, 0-10V Dimmable

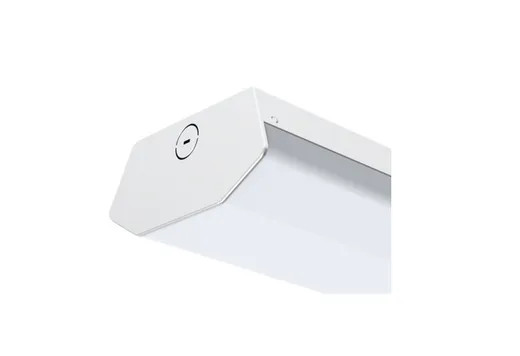

LWA-2-WS-CS-U is a Halco ProLED Select Linear Architectural Wrap fixture, 2FT, with field-selectable wattage and field-selectable color temperature. It features a white steel housing, a snap-on prismatic polycarbonate lens, and a large wiring compartment for straightforward installation.

Product Overview

The Halco ProLED Select Linear Architectural Wrap Fixture is designed for general ambient lighting in commercial applications, including stairways where DLC 5.1 Premium qualification applies (DLC 5.1 Standard for general linear ambient use). Multiple mounting options and a large wiring compartment make installation straightforward. Rated for use in closets when installed in accordance with NFPA 70 / NEC section 410.16(A)(3) and 410.16(C)(5).

This fixture supports optional field-installed controls per the manufacturer's ordering logic: a Motion Sensor (MS) or Battery Backup (BBU) option, or one of the separately-ordered add-on modules listed in the datasheet's Options table (item 80313 MWMS-BRI810 microwave motion sensor, item 28093 LVPT-MS DC microwave motion sensor, item 99986 LHB/MC 0-10V motion control sensor, or item 90313 BBU/EM9WU 9W 90-minute 0-10V-dimming battery backup) — none of these are included standard; order separately if needed.

Technical Specifications

• Brand: Halco
• Series: ProLED Select Linear Architectural Wrap (LWA)
• Halco Product Code: LWA-2-WS-CS-U
• Halco Item Number: 90380
• Size: 2FT
• Wattage: 15W / 20W / 25W (field selectable)
• Delivered Lumens: 1,950 - 3,319
• Efficacy: 130-138 LPW (up to 138 LPW at 4000K)
• Color Temperature: 3500K / 4000K / 5000K, field selectable
• CRI: >80
• Voltage: 120-277VAC
• Power Factor: 0.9
• Dimming: 0-10V
• L70 Rated Life: 50,000 hours
• Housing: White steel
• Lens: Prismatic polycarbonate, snap-on
• Operating Temperature: -20°C to 40°C
• Dimensions: 27-3/16" x 5-5/8" x 4-3/8" (per datasheet drawing)
• Listings: UL Certified, DLC 5.1 (Premium for stairway / Standard for linear ambient), RoHS, FCC
• Environment: UL Listed for Dry/Damp Locations
• Warranty: 5 Years

Applications

• Stairways – DLC 5.1 Premium qualified for stairway use.
• Commercial general ambient lighting – Office buildings, retail, storage, and industrial spaces.

Before You Order

• Confirm the wattage and CCT you intend to field-select before installation — both are adjustable on the fixture, not fixed at the factory.
• Motion sensor and battery backup are separately ordered options, not standard-included — see Product Overview.
• Verify closet installation complies with NFPA 70 / NEC 410.16(A)(3) and (C)(5) where applicable.

Compliance

• UL Certified for Dry/Damp Locations.
• DLC 5.1 qualified (Premium for stairway applications, Standard for general linear ambient).
• RoHS compliant, FCC compliant.

ADL Supply recommends confirming all specifications with the Halco ProLED Select Linear Architectural Wrap data sheet prior to installation. Questions? Call ADL Supply at 1-800-235-3489.
