Product Overview

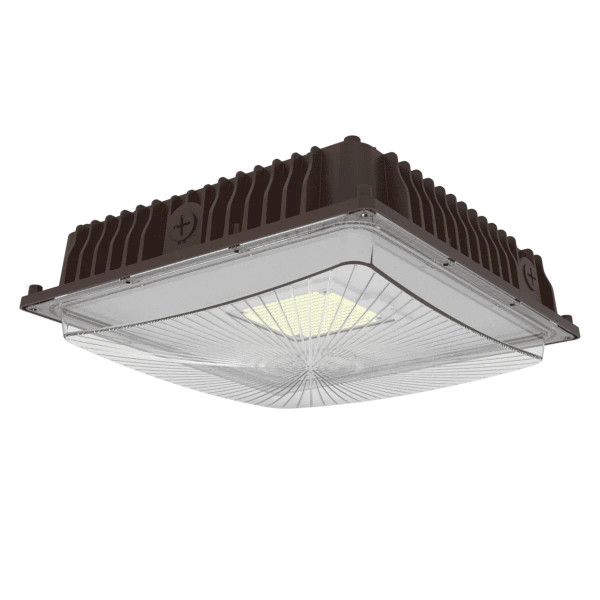

Halco ProLED Select Slim Canopy CSP-60-CS-U-BZ (39902) – 60W CCT Selectable, Bronze
The Halco ProLED Select Slim Canopy CSP-60-CS-U-BZ (Halco product 39902) is a 60W low-profile canopy luminaire, field-selectable between 3000K, 4000K, and 5000K, finished in Bronze. It replaces a 250W MH fixture, delivers 7,500 – 8,100 lm depending on the CCT setting, and runs on Universal 120-347VAC input. Rated IP65 and UL Listed for wet locations, it mounts to a ceiling or as a pendant using the quick-install mounting plate. Confirm wattage, CCT setting, and voltage before ordering.
Wattage 60W Replaces 250W MH | Lumens 7,500 – 8,100 lm 125–135 LPW | CCT Selectable Selectable 3000K/4000K/5000K | Finish Bronze Ceiling/pendant mount | Rating IP65 DLC 5.1 Premium |
Technical Specifications
| Brand | Halco Lighting Technologies (ProLED Select) |
| Series | ProLED Select Slim Canopy |
| Product Code | CSP-60-CS-U-BZ |
| Halco Product Number | 39902 |
| ADL Supply SKU | HAL39902 |
| Finish | Bronze |
| Mounting | Ceiling or pendant mount; quick-install removable mounting plate for contractor-friendly installation |
| Housing | IK09 die-cast aluminum with integral heat sink, powder-coated finish |
| Lens | Tamperproof and shatterproof polycarbonate lens |
| Impact Rating | IK09 impact-resistant housing |
| Nominal Wattage | 60W |
| MH Replacement | 250W MH |
| Delivered Lumens | 7,500 – 8,100 lm |
| Efficacy | 125–135 LPW |
| CCT | Selectable 3000K/4000K/5000K |
| CRI | >70 |
| Amperage | 120VAC (0.50A) / 277VAC (0.21A) |
| Voltage | Universal 120-347VAC |
| Power Factor | >0.90 |
| Dimming | 0-10VDC dimming standard |
| Controls | 0-10VDC dimming standard; RF Bi-Level occupancy sensing (integral motion sensor and photocell available as made-to-order options) |
| Surge Protection | Built-in 4kV surge protection |
| L70 Lifetime | 100,000+ hours (L70) at 25°C |
| Operating Temperature | -40°C to 55°C |
| Listings | cULus, DLC 5.1 Premium, FCC, RoHS Compliant |
| Environment Rating | UL Listed for Wet Location, IP65 Rated |
| Housing Dimensions | 9.527" x 9.527" housing, 3.26" depth |
| Weight | 5.85 lbs |
| Warranty | 5-year standard limited warranty (Halco) |
Product Overview
The ProLED Select Slim Canopy is a durable, high-performing luminaire built for covered outdoor spaces. Its low-profile, compact design and removable quick-install mounting plate make it a contractor-friendly fit for both retrofit and new-build canopy applications. This 60W Bronze model replaces a 250W MH fixture and delivers 7,500 – 8,100 lm depending on the field-selected color temperature.
ProLED Select CCT technology lets the installer choose between 3000K, 4000K, and 5000K in the field, so a single stock SKU covers all three finished color temperatures. The die-cast aluminum IK09 housing and tamperproof polycarbonate lens are built for exterior canopies, parking garages, carports, stairwells, and breezeways, with built-in 4kV surge protection and standard 0-10VDC dimming.
Compatible Applications
- Exterior canopies
- Parking garages
- Carports
- Stairwells
- Breezeways
Before Ordering – Verify
- CCT is field-selectable, not fixed. Set the color temperature to 3000K, 4000K, or 5000K at install – confirm the installer knows which setting the customer wants.
- Confirm wattage: this is the 60W model, replacing a 250W MH fixture. This series is also stocked at 28W and 40W.
- Confirm finish: this item is Bronze. Also stocked in White under order code CSP-60-CS-U-WH.
- Voltage is universal Universal 120-347VAC – confirm the supply circuit falls within that range, including 347VAC service if applicable.
- Stock SKUs ship without motion sensor or photocell. Integral RF motion sensor (-MS suffix) and photocell (-PC suffix) versions are made-to-order with lead times – confirm timeline before quoting either option.
- Delivered lumens and efficacy vary by CCT setting – use the per-CCT lumen table in Ordering Information for the exact output at the selected color temperature, not just the range.
Safety and Handling Guidelines
- De-energize the circuit before installing or servicing the fixture.
- Set the CCT selection before final installation is complete.
- UL Wet Location and IP65 rated – confirm gasket and seal integrity at installation.
- Confirm the mounting structure can support the fixture for the selected ceiling or pendant mount configuration.
- Use only with a dimmer or control confirmed compatible with 0-10VDC dimming.
Compliance
- Listings: cULus, DLC 5.1 Premium, FCC, RoHS Compliant.
- UL Listed for Wet Location, IP65 Rated.
- DLC 5.1 Premium listed – may qualify for utility rebate programs; confirm current DLC listing status before quoting a rebate-dependent project.
- All specifications are subject to change by the manufacturer; the current Halco published specification governs.
Ordering Information
- Product code: CSP-60-CS-U-BZ | Halco product number: 39902 | ADL Supply SKU: HAL39902
- Configuration: 60W, Selectable 3000K/4000K/5000K, Bronze, Universal 120-347VAC.
- Delivered lumens and efficacy by CCT: 3000K 7,500 lm (125 LPW); 4000K 8,100 lm (135 LPW); 5000K 7,800 lm (130 LPW).
- Also stocked: CSP-60-CS-U-WH (White, same wattage); CSP-28-CS-U-BZ, CSP-40-CS-U-BZ.
- Made-to-order options (lead times apply): -MS integral RF motion sensor, -PC photocell, both available in 28W/40W/60W and Bronze/White.
- Accessory: RM/MH10 remote control programmer (Halco 28050), used to configure integral occupancy sensing settings.
- Warranty: 5-year standard limited warranty (Halco).
