Halco Sektor SFLD1-LS-CS-U-WH-PC 22903 SFLD1 LED Flood Light 15W/20W/30W CCT Selectable White

Halco Sektor SFLD1-LS-CS-U-WH-PC (22903) – SFLD1 LED Flood Light, 15W/20W/30W, CCT Selectable, White

The Halco Sektor SFLD1-LS-CS-U-WH-PC (Halco product 22903) is a SFLD1 lens-shift adjustable LED flood light, field-selectable across 15W/20W/30W, selectable across three color temperatures (3000K/4000K/5000K), and adjustable between medium, wide, and very wide beam spread with a simple twist of a dial. It delivers 1,950 – 4,440 lm depending on the selected settings, runs on 120-277VAC, and is finished in White. Includes integrated on/off photocell. Confirm wattage tap, CCT, beam setting, and mounting hardware before ordering.

Technical Specifications

Product Overview

The Sektor lens-shift 5-way adjustable LED Flood Light Series delivers industry-leading lens shift technology that seamlessly moves between medium, wide, and very wide light distribution with a simple twist of a dial. This SFLD1 model is field-selectable across 15W/20W/30W, delivering 1,950 – 4,440 lm at 130–150 LPW efficacy depending on the selected wattage, CCT, and beam setting.

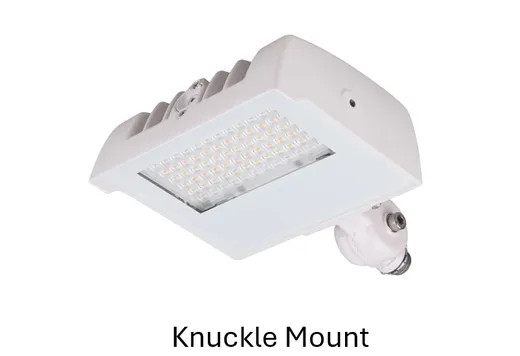

180° adjustable knuckle swivel arm mount (10° tilt increments) and trunnion mount, both included in the box. The fixture ships in White die-cast aluminum with a clear tempered glass lens, silicone gasketing, and 1/2" knockouts for conduit entry. Designed for distribution centers, commercial space, industrial and retail locations, storage facilities, utilities, shopping centers, signage, and security lighting.

Compatible Applications

• Distribution centers and warehouses
• Commercial, industrial, and retail locations
• Storage facilities and utilities
• General shopping centers and signage
• Security and general area lighting

Before Ordering – Verify

• Wattage is field-selectable across 15W/20W/30W. Set the correct tap for the intended lumen output before final installation.
• CCT is field-selectable, not fixed. Set the dial to 3000K, 4000K, or 5000K at install – confirm the installer knows which setting the customer wants.
• Beam spread is field-adjustable between medium (90°), wide (75°), and very wide (55°) via the lens-shift dial – confirm the correct setting for the pole spacing and coverage area.
• Confirm finish: this item is White. Also offered in Bronze under a separate order code.
• 180° adjustable knuckle swivel arm mount (10° tilt increments) and trunnion mount, both included in the box – confirm no separate mounting purchase is needed for standard installs.
• Detailed lumens/efficacy above (30W (highest tap)) represent the datasheet's published figures for the highest wattage tap only; the lower taps in this model fall within the overall 1,950 – 4,440 lm range but are not individually broken out by Halco.

Safety and Handling Guidelines

• De-energize the circuit before installing, adjusting, or servicing the fixture.
• Confirm the mounting arm and pole/wall structure can support the fixture at the intended height and orientation.
• IP65 rated and Wet Location listed for outdoor use; confirm gasket and seal integrity at installation.
• Set beam spread and CCT before final aim/tilt adjustment is locked in.
• Aim and tilt per a qualified lighting layout to avoid light trespass and glare.

Compliance

• Listings: UL Listed, cUL, DLC 5.1 Premium, IP65, RoHS Compliant, FCC Compliant.
• Wet Location Rated.
• DLC 5.1 Premium listed – may qualify for utility rebate programs; confirm current DLC listing status and the specific DLC Product ID before quoting a rebate-dependent project.
• All specifications are subject to change by the manufacturer; the current Halco published specification governs.

Ordering Information

• Product code: SFLD1-LS-CS-U-WH-PC  |  Halco product number: 22903  |  ADL Supply SKU: HAL22903
• Configuration: SFLD1, 15W/20W/30W, Selectable 3000K/4000K/5000K, 120-277VAC, White.
• DLC Product ID(s): S-6X1VXY, S-99G7VH.
• Detailed performance (30W (highest tap)): 3000K: 90° 3900 lm (130 LPW), 75° 3900 lm (130 LPW), 55° 3690 lm (123 LPW); 4000K: 90° 4350 lm (145 LPW), 75° 4350 lm (145 LPW), 55° 4050 lm (135 LPW); 5000K: 90° 4200 lm (140 LPW), 75° 4200 lm (140 LPW), 55° 3840 lm (128 LPW).
• Accessories (sold separately): SFLD-1/2/3-WHG wire guard; SFLD-1/2/3-WPM yoke mount; SFLD-1/2/3-SHROUD shroud; PC/JL205C 120-277VAC twist-lock photocell; PC/TW480V 480V twist-lock photocell.
• Warranty: 5-year standard limited warranty (Halco).

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
