Product Overview

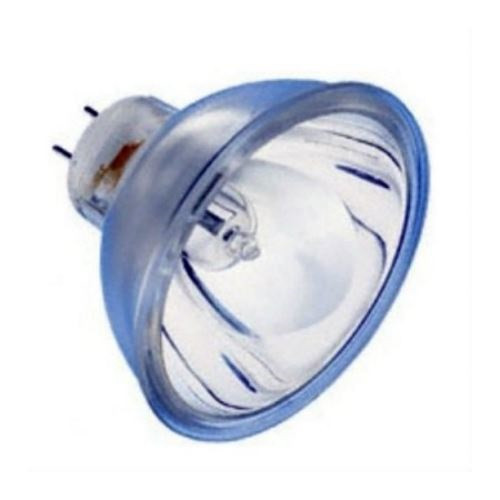

Osram 54916 ENX-7 Photo-Optic Halogen Lamp - 360W 87.5V GY5.3
The Osram 54916 ENX-7 Photo-Optic Halogen Lamp - 360W 87.5V GY5.3 is an OSRAM specialty photo-optic halogen lamp used in professional projection, microfilm, microscope, studio, medical, fiber-optic, and entertainment equipment. This lamp should be selected by matching the ordering abbreviation, wattage, voltage, base, bulb shape, and rated life to the existing lamp or equipment manual.
This product is listed with 360W, 87.5V, GY5.3 base, T3.5 bulb shape, 5404 lumens, and 75 hour rated average life. It is intended for specialized optical systems where correct fit and light output are critical.
|
Wattage
360W
Halogen
|
Voltage
87.5V
Rated
|
Base
GY5.3
Socket
|
Lumens
5404
Output
|
Life
75 hrs
Avg.
|
Product Overview
OSRAM photo-optic halogen lamps are designed for equipment where optical alignment, color stability, and lamp geometry matter. These lamps are commonly used in projectors, microfilm readers, microscopes, studio fixtures, medical illumination, fiber-optic illuminators, enlargers, printers, and entertainment lighting.
Technical Specifications
| Brand | OSRAM |
| Product Number | 54916 |
| ANSI / Code | ENX-7 |
| Ordering Abbreviation | ENX-7 |
| Primary Application | Projector - Overhead |
| Wattage | 360W |
| Voltage | 87.5V |
| Base Type | GY5.3 |
| Bulb Shape | T3.5 |
| Lumens | 5404 |
| Color Temperature | Not Listed |
| Rated Average Life | 75 hours |
| Package Quantity | 24 |
| Length “l” | 38.1 mm |
| Dimension “a” | 299 mm |
| Diameter “d” | 51 mm |
| Mercury Content | Mercury-free tungsten halogen lamp |
Compatible Applications
- Projectors and slide projection systems
- Microfilm and microfiche readers
- Microscopes and laboratory illuminators
- Studio, theatre, TV, and video lighting equipment
- Medical and dental illumination systems where specified
- Fiber-optic illuminators and optical equipment
Helpful Buying Notes
- Upgrade Option: ENX-5 — Double the life at 82V3
- Upgrade Option: ENX-7 — Increased life by 2.5 times at 82V3
Before Ordering Verify
- Ordering Code: Match OSRAM 54916 / ENX-7 to the existing lamp or equipment manual.
- Voltage: Confirm the equipment is rated for 87.5V operation.
- Wattage: Confirm the fixture or instrument is rated for 360W.
- Base: Confirm the socket accepts GY5.3 lamps.
- Bulb Shape: Confirm the T3.5 bulb shape and physical clearance.
- Life vs Output: Long-life versions may produce fewer lumens, while high-output versions may have shorter life.
Safety & Installation Guidelines
- Use Approved Fixtures: Install only in equipment designed for this lamp type, wattage, voltage, and base.
- Do Not Touch Quartz: Use clean gloves or a lint-free cloth to prevent oil contamination and premature lamp failure.
- Disconnect Power: Turn off and unplug equipment before replacing the lamp.
- Allow Cooling: Let the lamp and fixture cool completely before handling.
- Optical Alignment: Seat the lamp correctly to maintain proper focus, beam position, and equipment performance.
