Product Overview

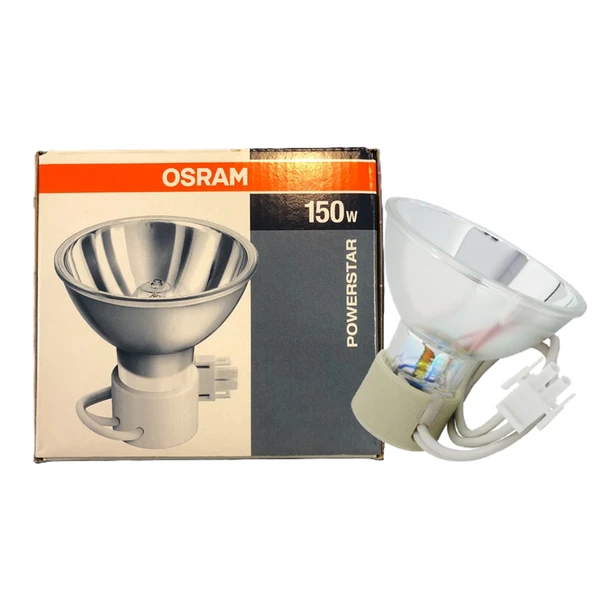

Osram HQI-R 150 W/NDL/FO POWERSTAR Metal Halide Focusing Reflector Lamp - 150W 95V, 4200K CRI 85, 2-Pin Base, 9,000hr Life, For Enclosed Fiber-Optic Light Guide Luminaires
The Osram HQI-R 150 W/NDL/FO is an Osram POWERSTAR HQI-R metal halide lamp with an integral focusing reflector, built for fiber-optic light guide systems. It is rated at 150W / 95V, runs at 4200K neutral white (NDL) with a CRI (Ra) of 85, and is rated for 9,000 hours average life.
This lamp should be selected by matching the Osram product code, wattage, base type, and burning position to the installed fiber-optic illuminator or fixture. Per Osram’s datasheet, this lamp is intended for enclosed luminaires (see Safety & Installation Guidelines below for an important flag on this point) — confirm compatibility before ordering.
|
Wattage
150W
95V Nominal
|
Color Temp
4200K
CRI 85 (Ra)
|
Lumens
5200/1850
at 25mm/10mm Aperture
|
Rated Life
9,000
Hours (B50)
|
Base
2-Pin
See note below
|
Product Overview
Osram’s POWERSTAR HQI-R lamps combine quartz metal halide technology with a compact integral reflector optimized for coupling into fiber-optic light guides and small-aperture optical systems. The UV filter keeps UV output significantly below the IEC 61167 permitted threshold, and the design allows simple relamping with optimum optical adjustment and low thermal load on the light guide.
Technical Specifications
| Brand | Osram |
| Lamp Designation | HQI-R 150 W/NDL/FO |
| Family | POWERSTAR HQI-R — Metal Halide, Quartz Technology, Enclosed Luminaires |
| Light Color / CCT | 842 (Neutral White / NDL), 4200K |
| Color Rendering Index (Ra) | 85 |
| Nominal / Rated Wattage | 150.00 W |
| Nominal Voltage | 95.0 V |
| Lamp Current | 1.8 A |
| Ignition Voltage (Min/Max) | 3.6 / 5.0 kVp |
| PFC Capacitor (at 50 Hz) | 20 µF (at rated voltage and cos φ ≥ 0.9) |
| Aperture Luminous Flux | 5,200 lm (at 25mm aperture) / 1,850 lm (at 10mm aperture) |
| Luminous Intensity | 11,000 cd |
| Focal Length | 75.0 mm |
| Maximum Overall Length (MOL) | 93.0 mm |
| Diameter | 95.8 mm |
| Product Weight | 215.00 g |
| Lifespan (B50) | 9,000 hours |
| Burning Position | p15 |
| Base (Standard Designation) | 2 pins — specific pin/socket type (e.g. G12, AMP Mate-N-Lock) is not stated on this datasheet; confirm against the physical lamp or fixture before ordering |
| UV Protection | Yes (UV filter, per IEC 61167) |
| Lamp Mercury Content | 23.0 mg |
| ILCOS Code | MR-150/842-H/E/SL-STECKER-95/93/H |
| Osram Product Code (EAN) | 4008321691262 |
| NAED Number | Not listed on this datasheet — not confirmed |
Key Features
- POWERSTAR quartz metal halide technology with an integral focusing reflector for compact, high-efficiency optical systems.
- 4200K neutral white (NDL) light color at CRI (Ra) 85.
- UV output significantly below the IEC 61167 permitted threshold, thanks to an integrated UV filter.
- Low thermal load on the light guide, with simple relamping and optimum optical adjustment.
Compatible Applications
- Fiber-optic light guide systems (confirmed area of application per Osram datasheet)
- Compact optical/illuminator systems requiring a focusing reflector lamp
- General illustrative uses for this lamp type include retail displays, foyers/reception areas, and museum/exhibition accent lighting — these are not listed on this specific Osram datasheet and should be confirmed against the fixture manufacturer’s documentation.
Before Ordering Verify
- Lamp Designation: Confirm the fixture calls for Osram HQI-R 150 W/NDL/FO specifically (not the single-ended HQI-SE family, which is a different lamp type).
- Wattage & Voltage: Confirm the illuminator/ballast is rated for 150W at 95V.
- Base Type: This datasheet specifies only a "2 pins" base designation — confirm the exact pin/socket type (e.g. G12 or a specific connector) against the existing lamp or fixture documentation before ordering.
- Burning Position: Confirm the fixture orientation matches the rated p15 burning position.
- Enclosed Luminaire Requirement: See the flagged note in Safety & Installation Guidelines below regarding an inconsistency in Osram’s own datasheet on this point — verify with Osram or the fixture manufacturer before installing in a non-enclosed fixture.
Safety & Installation Guidelines
- Enclosed Luminaire Flag: This Osram datasheet is internally inconsistent on enclosure requirements: its "Areas of application" section states "Approved only for use in enclosed luminaires," while its Capabilities table separately states "Enclosed luminaire required: No." Both statements are reported here exactly as printed. Confirm the correct requirement with Osram or the fixture manufacturer before installation — this is a safety/compliance matter, not just a spec preference.
- Outdoor Use: Per the datasheet, outdoor applications are permitted only in suitable luminaires rated for outdoor/enclosed use.
- Mercury Content: Contains 23.0 mg mercury — dispose of per local regulations (www.lamprecycle.org or 1-800-555-0050).
- UV Exposure: Use only in fixtures with adequate shielding; a damaged or broken outer envelope should not be operated.
- Qualified Installation: Install and service only with power disconnected, following applicable electrical codes.
