Philips 45MRC16/IRC/NFL24 12v 3000k 830LM 24D GU5.3 #202721

Product Overview

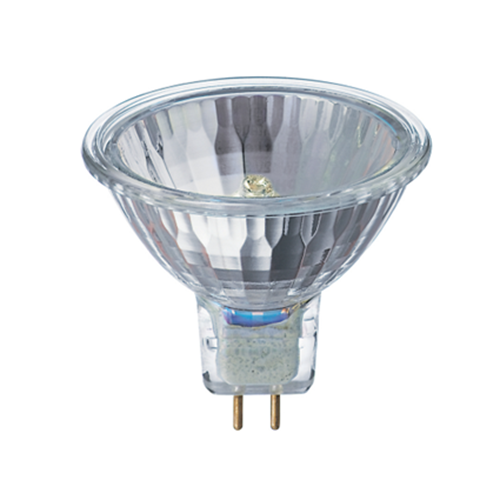

Philips 202721 Energy Advantage IR 45W MR16 Halogen Bulb – 12V | 3000K | 830 Lumens | 24° Beam | GU5.3

The Philips 202721 Energy Advantage IR 45W GU5.3 12V MR16 24D 1CT is a dimmable, low-voltage infrared-reflective halogen lamp designed for compatible MR16 accent and display-lighting fixtures. It produces 830 rated lumens at 3000K with a CRI of 100 and a concentrated 24-degree beam. The lamp uses a GU5.3 two-pin base, operates in a universal position, and requires a compatible 12V transformer or power supply. Please verify the product number, voltage, wattage, base, beam angle, transformer compatibility, dimensions, and fixture temperature limits before ordering.

Wattage

45W

IR Halogen

Voltage

12V

Low Voltage

Brightness

830 lm

Rated Output

Beam

24°

Narrow Flood

Rated Life

5,000 hrs

Nominal

Technical Specifications

Brand	Philips Lighting
Product Number	202721
Philips Code	18143
Full Product Name	Energy Advantage IR 45W GU5.3 12V MR16 24D 1CT
Short Product Name	45MRC16/IRC/NFL24 20PK
Product Family	Energy Advantage IR MR16
Lamp Technology	Infrared-reflective halogen
Bulb Shape	MR16, approximately 2 in / 50 mm
Base	GU5.3 two-pin
Operating Position	Universal
Rated Wattage	45W
Equivalent Wattage	68W
Voltage	12V
Lamp Current	3.75A
Power Factor	1.0
Dimmable	Yes
Color Temperature	3000K
Color Rendering Index	100
Rated Luminous Flux	830 lumens
Luminous Flux in 90° Cone	830 lumens
Beam Angle	24°
Approximate Maximum Beam Candlepower	5,300 cd
Lumen Maintenance at End of Nominal Life	80% minimum
Rated Life	5,000 hours
Switching Cycles	20,000
Starting Time	Immediate
Warm-Up Time	Instant full light
Energy Efficiency Label	B
Energy Consumption	48 kWh per 1,000 hours
Maximum Cap-Base Temperature	410°C
Maximum Bulb Temperature	410°C
Maximum Overall Length	46 mm
Maximum Overall Length Including Rim	50.5 mm
Maximum Diameter	51 mm
ILCOS Code	HRGS-45-12-GU5.3-50/24
Logistics Code / 12NC	924896017104
Net Weight	30 g
Quantity per SKU	1 lamp
Case Quantity	20 lamps
UPC / EAN	046677202729
Intermediate Pack GTIN	2005040020030
Case GTIN	50046677202724

Key Features & Benefits

45-watt infrared-reflective MR16 halogen lamp for compatible 12V fixtures.
Produces 830 rated lumens with a concentrated 24-degree beam.
Maximum center-beam candlepower of approximately 5,300 cd.
3000K warm-white light with CRI 100.
Dimmable when used with compatible dimming equipment and transformer.
GU5.3 two-pin base for compatible MR16 sockets.
Universal operating position.
Instant full light with no warm-up delay.
Rated for 5,000 hours and 20,000 switching cycles.

Product Overview

The Philips 202721 Energy Advantage IR MR16 is designed for display and accent-lighting applications where controlled beam intensity and excellent color rendering are required. Its 24-degree beam concentrates the light into a narrow-flood distribution, while the 3000K color temperature provides a warm-white appearance.

The lamp produces 830 rated lumens and approximately 5,300 maximum beam candlepower. Its CRI of 100 supports accurate color presentation in compatible retail, hospitality, gallery, architectural, and display-lighting systems.

This is a 12V lamp and must be operated from a compatible transformer or power supply. It must not be connected directly to 120V or 277V line voltage. Transformer load range, dimmer compatibility, socket condition, and fixture temperature ratings should all be verified before installation.

Compatible Applications

Retail display and merchandise lighting
Architectural accent lighting
Track and directional fixtures designed for 12V MR16 lamps
Hospitality and restaurant accent lighting
Gallery and exhibit lighting
Maintenance replacement where Philips product number 202721 or code 18143 is specified

Before Ordering – Verify

Product number: Confirm Philips product number 202721.
Philips code: Verify code 18143.
Full product name: Confirm Energy Advantage IR 45W GU5.3 12V MR16 24D 1CT.
Voltage: This lamp is rated for 12V and must not be connected directly to line voltage.
Wattage: Confirm the fixture and transformer are rated for a 45W lamp load.
Base: Verify the socket uses a GU5.3 two-pin connection.
Beam angle: This version has a 24-degree narrow-flood beam.
Color: Confirm the application requires 3000K warm-white light.
Transformer compatibility: Verify the existing transformer supports the lamp wattage, current, and dimming configuration.
Dimming: Use only with a dimmer and transformer approved for this halogen load.
Dimensions: Confirm a maximum diameter of 51 mm and maximum rim-to-base length of 50.5 mm.
Temperature limits: Ensure the fixture is designed for the lamp’s published thermal requirements.
Packaging: Philips lists one lamp per SKU and 20 lamps per case.

Safety and Installation Guidelines

Disconnect electrical power and allow the lamp and fixture to cool before handling.
Use only in fixtures designed for 12V GU5.3 MR16 halogen lamps.
Do not connect the lamp directly to 120V or 277V line voltage.
Do not exceed the fixture, socket, transformer, or dimmer wattage rating.
Insert both pins evenly without bending or forcing them into the socket.
Do not install a lamp that is cracked, chipped, loose, or otherwise damaged.
Keep combustible materials away from the lamp and fixture.
Maintain the fixture ventilation and thermal clearances specified by the manufacturer.
Use qualified electrical personnel when transformer, wiring, or fixture modifications are required.

Compliance & Environmental Information

Energy-efficiency classification: B.
Energy consumption: 48 kWh per 1,000 hours.
No UL, ETL, RoHS, DLC, ENERGY STAR, Title 20, Title 24, or JA8 claim was identified in the supplied Philips datasheet.
Dispose of the lamp according to applicable local waste and recycling requirements.
