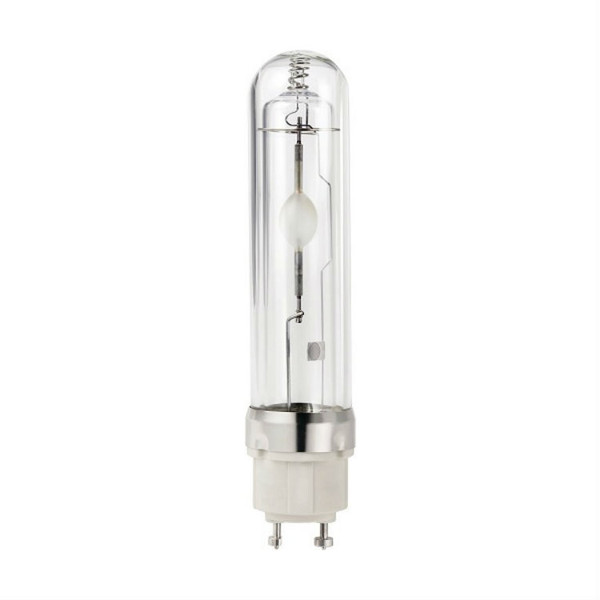

Philips CDM-TP 315W/T12/U/O C182/O Agro Lamp – 3100K PGZX18

Product Overview

Philips 415216 MasterColor CDM-T Elite 315W T12 Agro Lamp – 3100K | 33,000 Lumens | CRI 92 | PGZX18

The Philips 415216 MasterColor CDM-T Elite 315W T12 CL Agro P is a 315-watt ceramic metal-halide lamp developed specifically for horticultural lighting systems. It produces 33,000 initial lumens at a nominal 3100K color temperature with a CRI of 92 and uses a PGZX18 base. The clear T12 lamp operates in a universal burn position and requires compatible control gear designed for this exact 315W horticultural lamp. Please verify the complete product number, lamp designation, ballast compatibility, base, electrical ratings, dimensions, and luminaire temperature limits before ordering.

Wattage

315W

Ceramic Metal Halide

Color

3100K

CRI 92

Light Output

33,000 lm

Initial

Base

PGZX18

Specialty Ceramic Base

Average Life

30,000 hrs

Nominal

Technical Specifications

Brand	Philips Lighting
Product Number	415216
Full Product Name	MasterColor CDM-T Elite 315W T12 CL Agro P
Short Product Name	CDM ELITE 315W/T12/AGRO
Product Family	MasterColor CDM-T Elite Medium Wattage Agro
Main Application	Horticultural / Agro lighting
Lamp Technology	Ceramic metal halide
Bulb Shape	T12
Bulb Finish	Clear
Base	PGZX18
Operating Position	Universal
Rated Wattage	315W
Lamp Voltage	98V
Lamp Current	3.15A
Run-Up Current	4.7A
Initial Lumens	33,000 lumens
Luminous Efficacy	105 lm/W
Color Temperature	3100K
Color Rendering Index	92
Lumen Maintenance at 8,000 Hours	90%
Average Life	30,000 hours
Life to 10% Failures	12,000 hours
Ignition Time	3 seconds maximum
Run-Up Time to 90% Output	3 minutes maximum
Maximum Re-Ignition Time	10 minutes
Energy Efficiency Label	A+
Energy Consumption	346 kWh per 1,000 hours
Mercury Content	28 mg maximum
Maximum Cap-Base Temperature	250°C
Maximum Pinch Temperature	350°C
Maximum Bulb Temperature	350°C
Overall Length	193 mm / 7.6 in
Bulb Diameter	38 mm / 1.5 in
Light Center Length	90 mm nominal / 3.54 in
Arc Length	14 mm
Quantity per SKU	1 lamp
Case Quantity	12 lamps
UPC	046677415211
Case GTIN	50046677415216
Logistics Code / 12NC	928601172201

Key Features & Benefits

Designed specifically for professional horticultural lighting systems.
Produces 33,000 initial lumens from 315 watts.
Nominal luminous efficacy of 105 lumens per watt.
3100K spectral appearance developed for agro applications.
High 92 CRI for strong color rendering.
Maintains approximately 90% of initial lumen output at 8,000 hours.
Universal operating position provides installation flexibility in compatible luminaires.
Clear T12 outer envelope with PGZX18 specialty base.
Average rated life of 30,000 hours.

Product Overview

The Philips MasterColor CDM-T Elite 315W T12 CL Agro P is a medium-wattage ceramic metal-halide lamp engineered for the horticultural market. Philips identifies it as a compact and efficient solution intended to provide strong growth-light performance when paired with a compatible ballast.

The lamp produces 33,000 initial lumens at 3100K with a CRI of 92. Its output characteristics differ substantially from standard 4200K commercial ceramic metal-halide lamps, and it should be selected only when the horticultural Agro version is required.

The lamp operates at approximately 98 volts and 3.15 amps after startup. It must be paired with control gear specifically approved for this Philips 315W lamp. Similar wattage, base style, or physical dimensions do not establish ballast compatibility.

Compatible Applications

Professional horticultural lighting fixtures
Indoor cultivation systems designed for 315W ceramic metal-halide lamps
Greenhouse supplemental lighting
Plant-growth luminaires using a PGZX18 socket
Maintenance replacement where Philips product number 415216 is specified

Before Ordering – Verify

Product number: Confirm Philips product number 415216.
Full product name: Verify MasterColor CDM-T Elite 315W T12 CL Agro P.
Application: This is the Agro horticultural version, not a standard 4200K commercial-lighting CDM lamp.
Color temperature: The manufacturer specifies 3100K, not 4200K.
CRI: The manufacturer specifies CRI 92.
Light output: Initial output is 33,000 lumens.
Base: Confirm the fixture uses a PGZX18 lamp holder.
Control gear: Use only with a ballast specifically approved for this 315W Philips Agro lamp.
Electrical ratings: Confirm compatibility with a lamp rated at approximately 98V and 3.15A.
Dimensions: Verify the fixture accepts a lamp approximately 193 mm long and 38 mm in diameter.
Temperature limits: Ensure the luminaire maintains the cap-base, pinch, and bulb temperatures within Philips limits.
Warm-up and restrike: Allow up to three minutes for 90% output and up to ten minutes for hot re-ignition.
Packaging: Philips lists one lamp per SKU and twelve lamps per case.

Safety and Installation Guidelines

Disconnect and lock out electrical power before inspection, installation, or removal.
Allow the lamp and luminaire to cool fully before handling.
Use only with compatible control gear and a PGZX18 lamp holder.
Do not connect the lamp directly to line voltage.
Do not touch the outer glass with bare hands during installation.
Do not use the lamp if the outer envelope is cracked, scratched, punctured, or otherwise damaged.
The lamp may emit hazardous short-wave ultraviolet radiation if the outer envelope is broken.
Use adequate shielding and follow the luminaire manufacturer’s enclosure requirements.
Maintain the maximum published cap-base, pinch, and bulb temperatures.
Keep combustible materials away from the lamp and hot luminaire surfaces.
Installation and servicing should be completed by qualified personnel.

Compliance & Environmental Information

Complies with FDA radiation-performance requirements under 21 CFR 1040.30.
Canadian radiation requirement referenced by Philips: SOR/DORS/80-381.
Energy-efficiency classification: A+.
Maximum mercury content: 28 mg.
Recycle or dispose of this lamp according to applicable local, state, and federal mercury-lamp regulations.
No ANSI C182/O, RoHS, UL, ETL, DLC, ENERGY STAR, Title 20, Title 24, or JA8 claim was identified in the supplied Philips leaflet.
