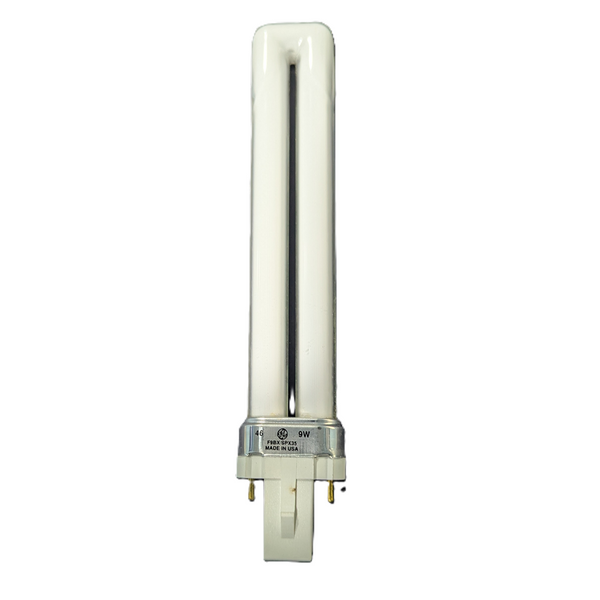

Replacement GE F9BX/SPX35 9W 3500K G23 – 9W | 3500K Natural White | 600 lm | G23 2-Pin

The Replacement GE F9BX/SPX35 9W 3500K G23 is a 9W 3500K Natural White 2-pin compact fluorescent lamp delivering 600 lm initial lumens, CRI Index (CRI): 82, G23 2-Pin base, and 10,000-hour rated life. This lamp requires an external compatible ballast — it is not self-ballasted. Non-dimmable.

Quick Specs

• Brand: GE
• Item / Catalog Number: —
• ANSI Standard: s: ANSI C78.901-2001
• Lamp / Bulb Type: T4 2-Pin CFL (Twin Tube)
• Wattage: 9W
• Color Temperature: 3500K Natural White
• CRI: Index (CRI): 82
• Initial Lumens: 600 lm
• Mean Lumens: 500 lm
• Rated Average Life: 10,000 hours
• Base Type: G23 2-Pin
• Dimmable: No — non-dimmable
• Ballast Requirement: External ballast required — not self-ballasted
• Compatible Ballast Type: Magnetic

Product Overview

The Replacement GE F9BX/SPX35 9W 3500K G23 is a 9W 3500K Natural White 2-pin compact fluorescent lamp designed for balanced natural white for offices, healthcare, educational, and retail facilities. Rated life of 10,000 hours reduces maintenance frequency in commercial installations. CRI Index (CRI): 82 provides good color rendering for task and display applications. This lamp requires an external preheat ballast with an integral starter — it is not self-ballasted. Non-dimmable.

The 2-pin base design incorporates a built-in special instant starter and capacitor within the housing, allowing operation on compatible preheat magnetic ballasts. This lamp is manufactured in accordance with ANSI C78.901-2001 and is TCLP compliant.

Applications

• Commercial and residential 2-pin CFL fixtures – Recessed downlights, wall sconces, accent fixtures, and commercial ambient lighting requiring balanced natural white for offices, healthcare, educational, and retail facilities.
• Retrofit and maintenance replacement – Drop-in replacement in compatible 2-pin CFL fixtures. Confirm base type, wattage, and ballast compatibility before ordering.

Replacing Your Current 2-Pin CFL?

• Base type — confirm 2-pin vs 4-pin: This lamp uses a G23 2-Pin 2-pin base. 2-pin and 4-pin lamps are not interchangeable. Check your fixture socket.
• G23 2-Pin base — verify socket: Confirm your fixture uses G23 2-Pin sockets. Verify exact designation with fixture documentation.
• Ballast compatibility: Requires compatible external preheat magnetic ballast with integral starter. Verify ballast is rated for 9W and G23 2-Pin.
• Wattage — 9W: Confirm your ballast and fixture are rated for 9W.
• Dimmable — No: Non-dimmable. Do not install on a dimmer circuit.

Ordering Information

• Brand: GE
• Item / Catalog Number: —
• UPC / EAN: —
• Wattage / CCT: 9W / 3500K Natural White
• Base: G23 2-Pin
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

Compliance

• ANSI C78.901-2001 compliant.
• TCLP compliant — designed to pass Toxicity Characteristic Leaching Procedure.
• Verify RoHS compliance with manufacturer specification sheet.
• Verify Prop 65 warning requirements with manufacturer specification sheet.
• This lamp contains mercury — dispose per local lamp recycling regulations. Visit lamprecycle.org.

ADL Supply recommends confirming all specifications with the manufacturer product data sheet prior to installation.
