Satco S11911 11.5T8/LED/48-835/BP 120-277V

Satco S11911 11.5T8/LED/48-835/FF/BP 120-277V — 11.5W LED T8 Ballast-Bypass Tube, 4ft, 3500K, Flicker-Free, G13 Base

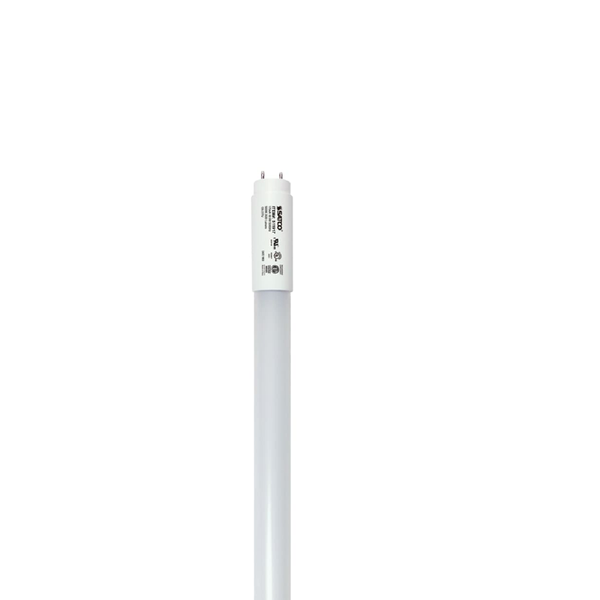

The Satco S11911 (11.5T8/LED/48-835/FF/BP 120-277V) is a 11.5-watt LED T8 linear tube from Satco/Nuvo’s Premium flicker-free series, designed as a direct replacement for a 4-foot F32T8 fluorescent tube. This is a ballast-bypass tube — it requires the existing fluorescent ballast to be removed and bypassed; it will not light if the ballast is still in the circuit, by design. With an all-glass, PET-coated shatterproof construction, 3500K color temperature (Neutral White), CRI 80, 1,650 lumens, true flicker-free performance (less than 2% flicker), a 190° beam angle, and a 50,000-hour rated life, this tube is c-UL-us Classified, ETL Sanitation Listed (NSF-conforming), and DLC Listed. Direct-wires to 120-277V line voltage. Non-dimmable except with the specific compatible dimmer noted below. For indoor use only, damp location rated, suitable for enclosed fixtures, not rated for vapor-tight fixtures. Sold 25 per case. Verify socket type (shunted vs. non-shunted) and wiring configuration before ordering.

Technical Specifications

Product Overview

The Satco S11911 is a 11.5W LED T8 tube built with an all-glass, PET-coated shatterproof envelope, designed as a direct ballast-bypass replacement for a 4-foot F32T8 fluorescent tube. It delivers 1,650 lumens at 3500K (Neutral White) with true flicker-free performance (under 2% flicker) and a wide 190° beam angle.

As a ballast-bypass design, this tube requires the existing fluorescent ballast to be removed from the circuit; it includes a built-in safety feature that prevents it from lighting if the ballast has not been properly bypassed. It direct-wires to 120-277V line voltage and supports both single-ended and double-ended wiring configurations, depending on the socket type in the fixture.

This tube is c-UL-us Classified, ETL Sanitation Listed (conforming to NSF standards for food-service environments), and DLC Listed, making it suitable for a wide range of commercial, institutional, and food-service applications. It carries a 5-year limited warranty.

Compatible Applications

• Offices, retail, and residential buildings
• Shopping malls and supermarkets
• Hospitals and healthcare facilities
• Food-service environments — ETL Sanitation Listed for NSF-conforming spaces.
• Assembly lines and warehouses

Before Ordering — Verify

• Ballast Must Be Bypassed: This tube will not light on an intact fluorescent ballast circuit. The ballast, and the existing wiring to it, must be removed/bypassed by a qualified electrician before installation.
• Socket Type for Single-Ended Wiring: Single-ended installations require non-shunted G13 lampholders. Shunted lampholders (found in fixtures with instant-start ballasts) must be replaced for single-ended wiring, or double-ended wiring used instead.
• Dimming: Not compatible with standard incandescent dimmers. Only operates correctly with the specific dimmer manufactured by Shanghai Infinex Lighting (type ECV100W-XXX), if dimming is required.
• Fixture Type: Not rated for vapor-tight fixtures. Suitable for enclosed luminaires.
• Minimum Compartment Size: Confirm the fixture has at least 48-7/16" L × 13-3/8" W × 1-3/4" H of internal clearance, with at least 1-3/16" spacing between lamps for multi-lamp fixtures (up to 4 lamps).
• Wattage Tier / Color Temperature: Confirm 11.5W and 3500K are correct — the 11.5W tier also includes S11910 (3000K), S11911 (3500K), S11912 (4000K), S11913 (5000K).
• Environment: Indoor use only, damp location rated, maximum ambient temperature 45°C (113°F).

Safety and Installation Guidelines

• Disconnect power before installation. Risk of fire or electric shock.
• Qualified Electrician Required: Installation requires knowledge of luminaire electrical systems and compliance with national/local electrical codes. If not qualified, contact a licensed electrician.
• Remove the Ballast: Disconnect power, remove the existing fluorescent lamp(s), and cut all wires connected to the ballast, then remove the ballast entirely.
• Check Lampholder Type: Identify whether lampholders are shunted or non-shunted before choosing single-ended or double-ended wiring (see Before Ordering).
• Single-Ended Wiring: Power is applied only to the endcap labeled Side A — do not apply power to Side B.
• Apply Retrofit Label: Mark the fixture “This luminaire has been modified and can no longer operate the originally intended lamp” where visible during normal maintenance.
• No Exposed Wiring: Complete all connections with appropriate connectors; no exposed or unconnected wires should remain in the socket.
• Wiring Protection: Do not expose wiring to sheet metal edges or sharp objects; do not create or alter open holes in the wiring/electrical enclosure.
• Check Existing Wiring: Inspect existing wiring for damage before installing; do not install if wires are damaged.
• Not for Emergency Lighting: This device is not intended for emergency lighting use.
• Code Compliance: The retrofit kit is accepted as a luminaire component where suitability of the combination is determined by the authority having jurisdiction.

Compliance

• c-UL-us Classified; FCC Part 15 compliant.
• ETL Sanitation Listed — conforms to NSF standards for food-service environments.
• DLC Listed.
• Damp location rated; suitable for enclosed luminaires (not vapor-tight).
• Mercury-free, lead-free LED lamp — no mercury-related shipping restrictions apply.
• 5-year limited warranty.

Ordering Information

• Brand: Satco / Nuvo — Premium Flicker-Free Series
• Item Number: S11911
• Order Code: 11.5T8/LED/48-835/FF/BP 120-277V
• UPC: 045923119118
• Wattage / CCT: 11.5W / 3500K
• Base: G13 (4ft T8)
• Equivalent: F32T8 Fluorescent
• Packaging: 25 per case.
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
