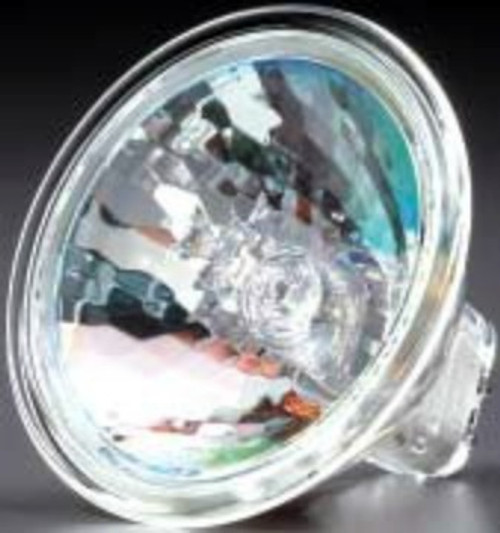

GE 43537 (DDL) Quartzline Halogen Lamp — 150W | 20V Low Voltage | MR16 Faceted Dichroic Reflector | GX5.3 Base

The GE 43537 (DDL) Quartzline® Multi-Mirror Lamp is a commercial-grade, high-intensity low-voltage tungsten halogen reflector capsule engineered exclusively for microfilm readers, microfiche archival systems, clinical medical diagnostic instruments, surgical lighting heads, technical instrumentation monitors, and specialized 8mm/16mm film projection gates. Projecting concentrated full-spectrum illumination with a color temperature of 3150K, this premium single-ended bulb features an industry-standard ANSI DDL specification tracking profile and utilizes an advanced faceted dichroic cold-beam multi-mirror reflector to achieve a flawless color rendering index of 100 CRI. Outfitted with a standard GX5.3 bi-pin base and an open-face unshielded quartz envelope, it ensures perfect optical focus convergence across its 500-hour rated average service life.

ADL Supply Expert Application & Replacement Guide

The GE DDL 43537 low-voltage reflector capsule is an established medical, archiving, and cinematography baseline specified universally across institutional microfiche libraries, automated document imaging systems, clinical surgical light fixtures, fiber optic illumination towers, and vintage film presentation suites. Outfitted with an axially oriented C-6 tungsten filament aligned to precise mathematical tolerances inside a cold-beam dichroic reflector shell, this lamp projects a highly uniform, concentrated point-light field. This allows archiving operators, research pathologists, and optical engineers to capture flawless image reproduction and absolute structural contrast across target fields without experiencing the focal gaps or chromatic aberration common in non-calibrated alternative replacements.

Critical 20V Low-Voltage Parameters and Mechanical GX5.3 Contact Safety Boundaries: Facility contractors and biomedical field engineers executing routine equipment adjustments must monitor electrical system metrics closely prior to checkout: this lamp runs natively on low-voltage 20V line tracks and requires a compatible step-down magnetic transformer or stabilized electronic power supply to operate safely. Connecting or bridging this low-voltage capsule directly across standard domestic 120V AC or 277V AC mainline branch circuits will cause instant high-amperage over-drive destruction, prompting immediate filament vaporization and an explosive quartz capsule breakdown.

Furthermore, the heavy-duty GX5.3 base features round dual pin contacts spaced on a precise 5.3mm pitch width. Push the lamp pins straight and completely into the socket receiver blocks until the rear reflector shell sits fully flush inside the fixture gate block. Any loose pin seating, structural clip relaxation, or carbon contamination along the terminal channel will generate high contact resistance, introducing a localized thermal feedback loop that will transcend safe thresholds, melting the fixture base or fracturing the quartz pinch-seal.

Detailed Product Specifications

• Brand Name: GE Lighting (Current Lighting Solutions / Quartzline® Multi-Mirror Family)
• Product Series Line: Low-Voltage Single-Ended Quartz Reflector Specialty Halogen Series
• GE Factory Product Order Code SKU: 43537
• Official Industry ANSI Equipment Code: DDL
• UPC Barcode Number (GTIN-12): 043168993166
• Global Trade Logistics Code (GTIN-13): 00043168435376
• Core Technology Class: Thermal Incandescent — High-Pressure Tungsten Halogen Quartz Capsule
• Reflector Technology Class: Dichroic Multi-Mirror Faceted Cold-Beam Shell (Passes heat through back of reflector)
• Primary Control Requirement: Step-Down Low-Voltage Transformer (20V Regulated Power Supply Output / 22V Maximum)
• Operational Power Draw: 150 Watts
• Nominal System Operating Voltage: 20.0 Volts AC/DC Low-Voltage Baseline
• Continuous Operating Amperage Draw: 7.50 Amperes continuous circuit current load
• Color Temperature Configuration: 3150K Studio White (Clear Optical High-Transmission Finish)
• Color Rendering Index (CRI): 100 Ra (Flawless Continuous Full-Spectrum Energy Distribution)
• Filament Type Geometry Class: C-6 (Precision Calibrated Axial Monoplane Filament Loop)
• Base Type Configuration: GX5.3 (Single-Ended 2-Pin prefocus plug base with round alignment pins)
• Bulb Shape Enclosure Code: MR16 (Multi-Mirror Reflector / Open-Face Unshielded Configuration)
• Maximum Overall Length (MOL): 1.75" Inches (44.4mm actual body height face-to-pin tips)
• Nominal Bulb Profile Diameter: 2.00" Inches (50.8mm actual outer reflector rim width)
• Typical Working Focal Distance: 7.75" Inches (196.85mm precision alignment center target point)
• Rated Average Service Lifespan: 500 Hours (Calibrated high-intensity performance target threshold)
• Chassis Burn Position Limit: Horizontal ±15 Degrees or Base Down (BD) Only
• Fixture Safety Rating: Suitably Enclosed Halogen Luminaires Only Mandatory (Strict fragmentation containment control)

Commercial Equipment Industry Cross-References

This standard 150W 20V GX5.3 halogen bulb serves as a direct drop-in replacement or alternative for the following lines:

• Osram Sylvania alternative Match: Osram DDL 150W 20V Tru-Aim Multi-Mirror / Factory Order Code 54660
• Philips Lighting Match: Philips DDL 150W 20V MR16 Clear Reflector Line / Product Code Equivalent
• Ushio Alternative Match: Ushio DDL (JC20V-150W) Specialty Precision Line / Order Catalog Reference
• Eiko Reference Match: Eiko DDL 150W 20V MR16 Faceted Clear Technical Replacement Series
