Product Overview

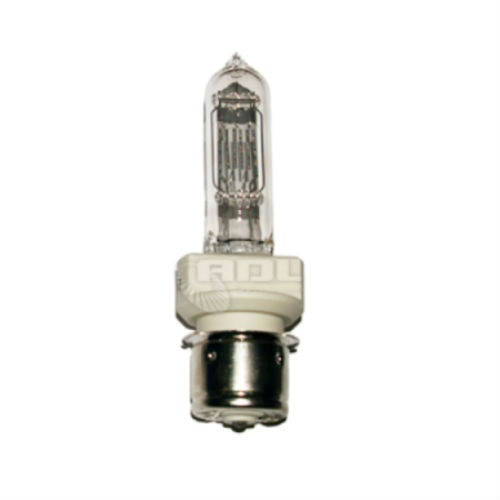

GE Quartzline BTN 750W 120V Halogen Lamp – P28s Prefocus Base – 3050K Display Optic Bulb
The GE Quartzline BTN Halogen Lamp (P/N 88605) is a high-intensity 750 watt display optic halogen lamp designed for professional lighting systems requiring strong output and accurate color rendering. Manufactured by General Electric, this lamp produces 17,000 lumens with a warm 3050K color temperature and a CRI of 100 for exceptional color accuracy.
Featuring a durable T7 clear quartz envelope and P28s medium prefocus base, the GE BTN lamp is commonly used in optical display lighting, projection equipment, and specialty fixtures where high-performance illumination is required.
Technical Specifications
- Manufacturer: GE Lighting
- Series: Quartzline
- ANSI Code: BTN
- Manufacturer Part Number: 88605
- Lamp Type: Single Ended Halogen Display Optic Lamp
- Bulb Shape: T7 Clear Quartz
- Wattage: 750 Watts
- Voltage: 120V
- Initial Lumens: 17,000 lm
- Color Temperature: 3050K Warm White
- Color Rendering Index: CRI 100
- Filament Type: C-13D
- Base Type: P28s Medium Prefocus
- Maximum Overall Length: 4.4 in
- Diameter: 0.79 in
- Rated Average Life: 500 Hours
Product Features
- High-output 750W quartz halogen lamp
- Exceptional color accuracy with CRI 100
- Strong 17,000 lumen output for display and projection lighting
- P28s prefocus base for precision fixture alignment
- Clear quartz envelope for maximum light transmission
- Reliable Quartzline halogen technology
Typical Applications
- Projection and optical display lighting
- Stage and studio lighting equipment
- Retail display illumination
- Museum and exhibition lighting
- Industrial optical systems
Installation & Safety Notes
- Handle with Gloves: Oils from skin can damage quartz halogen lamps.
- Use Approved Fixtures Only: Install only in luminaires designed for halogen lamps.
- High Operating Temperature: Allow lamp to cool completely before handling.
- Verify Voltage: Confirm fixture voltage matches lamp rating (120V).
- Secure Mounting: Ensure the P28s prefocus base is properly aligned and locked.
About GE Quartzline Lamps
GE Quartzline halogen lamps are engineered for high-performance lighting applications requiring precise beam control, high color rendering, and reliable output. These lamps are widely used in professional display, projection, and specialty lighting systems.
