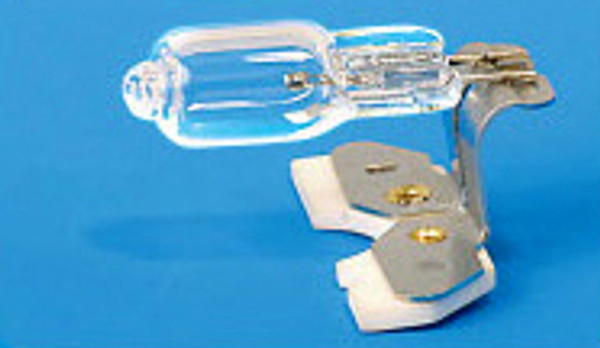

Hikari M-01004 JC 6V 30W PY16-1.25 – 30W/6V JC Halogen Medical Specialty Lamp

Specifications

• Brand: Hikari / Higuchi USA
• SKU: HIGM01004
• Lamp Type: JC Halogen
• ANSI Code: —
• UPC: —
• Wattage: 30W
• Voltage: 6V
• Base Type: Bulbs
• Bulb Finish: Clear
• CRI (Color Rendering Index): 100
• Initial Lumens: 630
• Rated Average Life: 100 hours
• Gas Fill: Krypton
• Filament Type: C-Bar6
• Max Overall Length (MOL): 30mm
• Bulb Diameter (DIA): 9mm
• Fixture Requirement: Approved Enclosed Halogen Fixtures Only

Compatible Applications

• Surgical & Operating Room Lighting
• Microscopy & Laboratory

About Hikari / Higuchi USA Medical Lamps

Hikari / Higuchi USA medical lamps are precision-engineered for demanding clinical and surgical environments. Built to CRI 100 standards with consistent color temperature, tight dimensional tolerances, and stable lumen output throughout rated life, they are trusted OEM-quality replacements for medical and surgical equipment worldwide.

Important Safety & Installation Notes

• Approved Fixtures Only: Use exclusively in approved, fully enclosed halogen fixtures.
• No Bare Hands: Never touch the bulb envelope with bare skin. Oils cause hot spots leading to premature failure. Use clean gloves or a lint-free cloth.
• Do Not Exceed Rated Voltage: Operating above rated voltage dramatically shortens lamp life. Verify equipment supply voltage before installing.
• Extreme Heat Warning: This lamp operates at very high temperatures. Never touch when lit or recently switched off.
• Fragile: Inspect envelope for cracks before installation. Handle with care.
