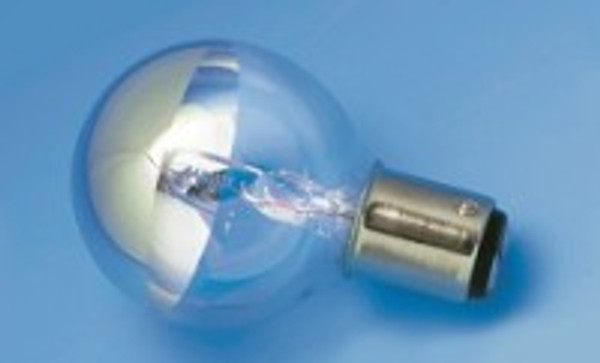

Hikari M-04020 IL 24V 40W BA15D – 40W/24V Incandescent (IL) Medical Specialty Lamp

Specifications

• Brand: Hikari / Higuchi USA
• SKU: HIGM04020
• Lamp Type: Incandescent (IL)
• ANSI Code: —
• UPC: —
• Wattage: 40W
• Voltage: 24V
• Base Type: BA15d
• Bulb Finish: Clear
• CRI (Color Rendering Index): 100
• Initial Lumens: 500
• Rated Average Life: 600 hours
• Gas Fill: Krypton
• Filament Type: CC-6
• Max Overall Length (MOL): 63mm
• Bulb Diameter (DIA): 40mm
• Fixture Requirement: Approved Enclosed Halogen Fixtures Only

Compatible Applications

• Surgical & Operating Room Lighting

Cross-Reference Part Numbers

• Hikari / Higuchi USA: Hikari M-04020 IL 24V 40W BA15D / SKU HIGM04020
• Guerra: 0574/3
• Hanaulux: 18550
• Orbitec: 131820

About Hikari / Higuchi USA Medical Lamps

Hikari / Higuchi USA medical lamps are precision-engineered for demanding clinical and surgical environments. Built to CRI 100 standards with consistent color temperature, tight dimensional tolerances, and stable lumen output throughout rated life, they are trusted OEM-quality replacements for medical and surgical equipment worldwide.

Important Safety & Installation Notes

• Approved Fixtures Only: Use exclusively in approved, fully enclosed halogen fixtures.
• No Bare Hands: Never touch the bulb envelope with bare skin. Oils cause hot spots leading to premature failure. Use clean gloves or a lint-free cloth.
• Do Not Exceed Rated Voltage: Operating above rated voltage dramatically shortens lamp life. Verify equipment supply voltage before installing.
• Extreme Heat Warning: This lamp operates at very high temperatures. Never touch when lit or recently switched off.
• Fragile: Inspect envelope for cracks before installation. Handle with care.
