Product Overview

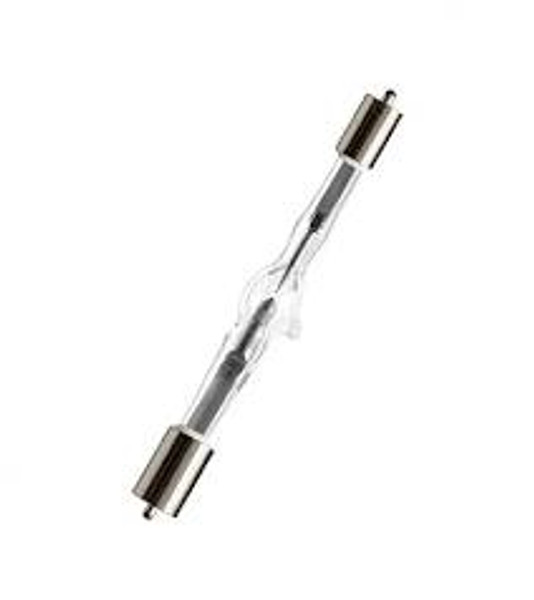

Sylvania 69245 XBO 450 W OFR — 450W/17V DC Short-Arc Xenon (XBO) Medical Lamp
Sylvania 69245 XBO 450 W OFR (XBO 450 W OFR) is a short-arc xenon (XBO) lamp built for professional medical and scientific light sources. Rated at 450W on a regulated 17V DC supply drawing 25.0A, it is documented for vertical operation (s 30), base down, and uses OSRAM SYLVANIA's ozone-free (OFR) quartz formulation.
Wattage 450W XBO Xenon Short-Arc | Voltage 17V DC Regulated DC Only | Current 25.0A Nominal | Rated Life 2000 Hr Per Manufacturer Catalog | Operating Position s 30 vertical, base down |
Technical Specifications
| Product Number (Order Code) | 69245 |
| Ordering Abbreviation | XBO 450 W OFR |
| Wattage | 450W |
| Voltage (Nom.) | 17V DC |
| Type of Current | DC (regulated xenon-rated supply only) |
| Current (Nom.) | 25.0A |
| Current Control Range | 17-30 A |
| Lumens | 13000 lm |
| Luminous Intensity | 1300 cd |
| Average Luminance | 35000 cd/cm² |
| Luminous Area (w x h) | 0.9 x 2.7 mm |
| Length l1 max | 260 mm |
| Length l2 max | 212 mm |
| Distance a | 95.5 mm |
| Diameter d | 29 mm |
| Rated Average Life (vertical) | 2000 hours (per manufacturer catalog) |
| Operating Position | s 30 (vertical, base down; anode (+) on top) |
| Cooling | Required |
| Anode Base | SFa20-8 |
| Cathode Base | SFa20-10 |
| Ozone Rating | OFR — Ozone-Free (quartz coated to suppress UV below ~250 nm) |
Product Overview
The Sylvania 69245 XBO 450 W OFR is a member of OSRAM SYLVANIA's XBO short-arc xenon family, built for regulated-DC medical, scientific and optical light sources rather than general illumination. Xenon short-arc technology produces a continuous, daylight-balanced spectral output by nature of the xenon gas discharge — a characteristic of the XBO family broadly, not itemized as a specific CRI or CCT figure per catalog listing.
This lamp requires a power supply specifically regulated for XBO xenon arc lamps — standard AC ballasts or generic DC adapters are not compatible, and cathode/anode polarity must be observed exactly per the host equipment's manual. It is rated for vertical operation, base down (s 30), with the anode (+) on top.
Like all OFR (ozone-free) XBO lamps, its quartz envelope is coated to suppress UV transmission below approximately 250 nm, eliminating ozone generation during operation, per OSRAM SYLVANIA's XBO OFR specification.
Related versions per the manufacturer catalog — Suprasil quartz version: XBO 450 W/4, Product Number 69244.
Compatible Applications
- Medical and scientific light sources specified for XBO short-arc xenon lamps
- Endoscopy, surgical and microscopy illuminators that call for this exact Product Number
- Display, optic and projection systems that specify this XBO lamp
- OEM/replacement lamp for light-source consoles specified for Product Number 69245
Before Ordering – Verify
- Confirm the light source console uses a regulated DC power supply rated for XBO xenon arc lamps — standard AC ballasts and generic DC adapters are not compatible.
- Confirm cathode/anode polarity per the equipment manual before installing — reversed polarity causes immediate electrode erosion and can damage the power supply.
- Confirm the fixture supports the cooling requirement: forced-air cooling is required for this lamp type.
- Confirm mounting orientation supports s 30 (vertical, base down, anode (+) on top) — operating outside the specified position shortens lamp life.
Safety and Handling Guidelines
- This lamp has positive pressure even when cold — handle with a full face shield and heavy protective gloves, and read the manufacturer's safety and warning instructions before use.
- Never touch the quartz envelope with bare hands — skin oils create thermal hot spots that can cause the capsule to shatter during operation.
- Disconnect power and allow the lamp to cool for a minimum of 15 minutes before removal.
- Store and transport in the original protective cover/packaging until the lamp is mounted in its fixture enclosure.
- Dispose of spent lamps per OSRAM SYLVANIA's XBO lamp disposal procedure and applicable federal/state/local regulations — do not discard as ordinary waste.
Compliance
- Ozone-Free (OFR) quartz formulation — suppresses ozone generation per OSRAM SYLVANIA's XBO OFR specification
- See OSRAM SYLVANIA's full XBO catalog and installation guide for complete compliance and handling documentation.
Ordering Information
- Product Number: 69245
- Ordering Abbreviation: XBO 450 W OFR
- Sold individually by ADL Supply.
- Contact ADL Supply to confirm current stock and lead time for this specialty medical lamp.
For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
