Product Overview

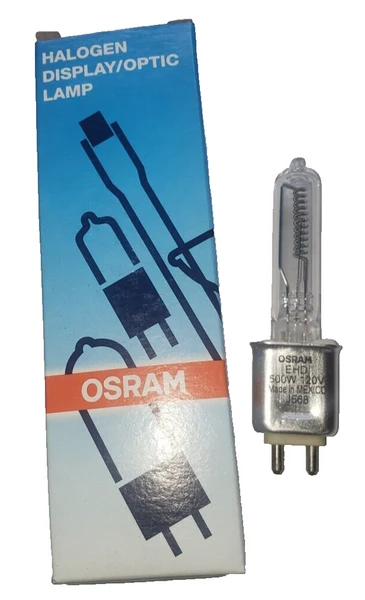

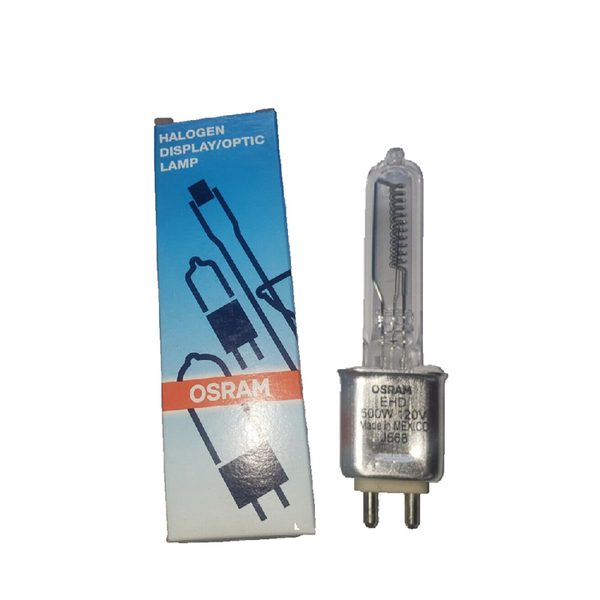

Osram 54508 EHD 500W 120V Halogen – G9.5 Medium Prefocus Bi-Pin Lamp
Specifications
- NAED Order Code: 54508
- Wattage: 500W
- Voltage: 120V
- Initial Lumens: 10,600 lm
- Color Temperature: 2900K (Warm White)
- Color Rendering Index (CRI): 100
- Base Type: G9.5 Medium Prefocus Bi-Pin
- Bulb Shape: T6
- Dimensions: 3.94" (100.1mm) MOL x 0.73" (18.5mm) Diameter
- Rated Average Life: 2,000 Hours
- Operating Position: S90 (Base Down to Horizontal)
Applications
This high-output halogen lamp is engineered for professional precision lighting, including:
- Stage, Studio, and Television Lighting
- Professional Photographic Equipment
- Projectors and Overhead Display Systems
- Theatrical Special Effects
Safety & Handling
Warning: This is a high-pressure halogen lamp. To prevent injury or property damage:
- Use only in approved enclosed fixtures designed for high-heat halogen lamps.
- Do not touch the quartz glass with bare hands; skin oils can cause the bulb to shatter. Clean with alcohol if touched.
- Ensure the fixture is powered off and the lamp has cooled completely before replacement.
