Product Overview

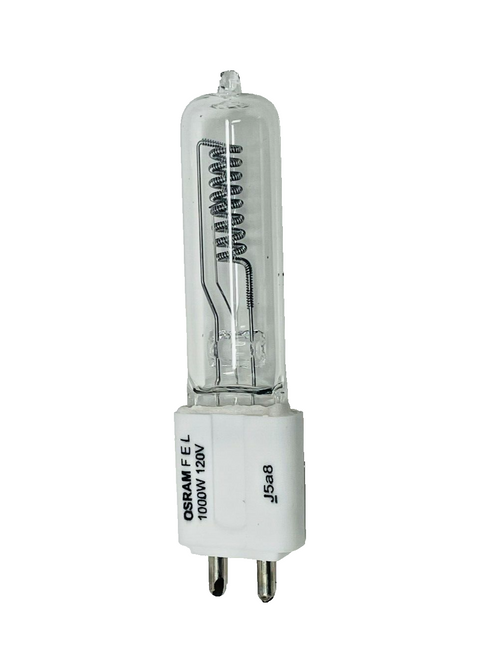

Osram FEL 1000W G9.5 120V 54570/64743 – 1000W/120V | 3200K Natural White | 27,000 Lumens | Type: G9.5 2-Pin
The Osram FEL 1000W G9.5 120V 54570/64743 is a 1000W 120V FEL SSTV halogen lamp delivering 27,000 initial lumens, CRI 100, 3200K Natural White color temperature, Type: G9.5 2-Pin base, 300-hour rated life.
|
Wattage/Volt
1000W/120V
SSTV Halogen
|
Color Temp
3200K
CCT
|
Lumens
27,000
Initial lm
|
CRI
100
Color Render
|
Rated Life
300
Hours
|
Quick Specs
- Brand: Osram
- UPC / EAN: 4008321225719
- Lamp Type: FEL SSTV Halogen — Stage, Studio & Theater
- Wattage: 1000W
- Operating Voltage: 120V
- Color Temperature: 3200K Natural White
- Initial Lumens: 27,000 lm
- Rated Average Life: 300 hours
- Base Type: Type: G9.5 2-Pin
- Overall Length / Dimensions: 4″ L × 0.78″ Ø
- Burn / Operating Position: Universal (Any Position)
- Filament: Design: CC-8
Product Overview
The Osram FEL 1000W G9.5 120V 54570/64743 is a 1000W 120V FEL SSTV (Stage, Studio & Theater) tungsten halogen lamp delivering 27,000 lumens at 3200K Natural White with CRI 100. The FEL is a professional standard studio and stage halogen lamp operating at 120V, appropriate for professional stage, studio, broadcast, and theatrical lighting.
Do not touch quartz envelope with bare hands. Allow 15-minute cool-down before handling. Verify fixture and circuit are rated for 1000W at 120V.
Applications
- Professional stage and theatrical lighting – FEL SSTV halogen for studio spots, fresnels, and follow spots requiring 1000W at 120V.
- Film, broadcast, and television production – Studio and location lighting at 3200K Natural White for tungsten-balanced camera work.
- Retrofit and maintenance replacement – Confirm base type, wattage, and voltage before ordering.
Safety and Handling
- Do not touch the quartz envelope with bare hands. Skin oils cause hot spots leading to premature failure. Use clean gloves or lint-free cloth. Clean with isopropyl alcohol if accidentally touched.
- Allow 15-minute cool-down before replacement.
- Voltage — 120V: Verify supply circuit matches rated voltage. Operating above rated voltage significantly shortens lamp life.
- Enclosed fixture: Use only in fixtures rated for this lamp type.
Ordering Information
- Brand: Osram
- Item / Catalog Number: —
- UPC / EAN: 4008321225719
- Wattage / Voltage: 1000W / 120V
- Base: Type: G9.5 2-Pin
- Case quantities and bulk pricing: Contact ADL Supply for volume orders.
Compliance
- Verify RoHS compliance with manufacturer specification sheet.
- Verify Prop 65 requirements with manufacturer specification sheet.
ADL Supply recommends confirming all specifications with the manufacturer product data sheet prior to specification or installation.
