Product Overview

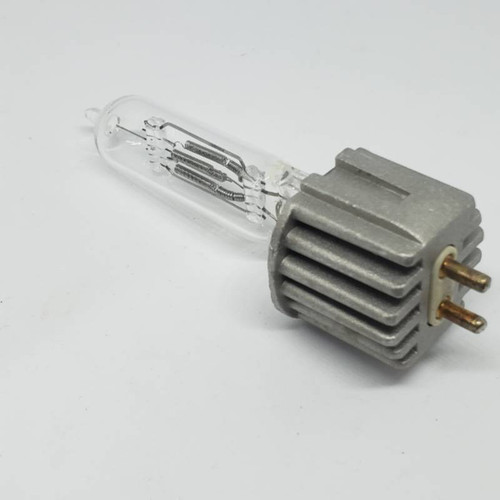

Osram 54807 HPL 575/115/X UCF 575W 115V Special – 575W/115V | 3065K Natural White | Type: Medium Bipin with Heat Sink

The Osram 54807 HPL 575/115/X UCF 575W 115V Special is a 575W 115V HPL halogen lamp at 3065K Natural White, CRI 100, Type: Medium Bipin with Heat Sink base, 2,000-hour rated life. Compatible with ETC Source Four and UCF-type professional stage fixtures.

Wattage/Volt

575W/115V

SSTV Halogen

Color Temp

3065K

CCT

Lumens

—

Initial lm

CRI

100

Color Render

Rated Life

2,000

Hours

Quick Specs

Brand: Osram
UPC / EAN: 046135548079
Lamp Type: HPL Halogen — Stage/Theater (Source Four Compatible)
Wattage: 575W
Operating Voltage: 115V
Color Temperature: 3065K Natural White
CRI: 100
Rated Average Life: 2,000 hours
Base Type: Type: Medium Bipin with Heat Sink
Overall Length / Dimensions: 104mm (MOL) × 19mm Diameter

Product Overview

The Osram 54807 HPL 575/115/X UCF 575W 115V Special is a 575W 115V HPL (High Performance Long-life) tungsten halogen lamp designed for ETC Source Four ellipsoidal fixtures and UCF (Universal Compact Filament) professional stage lighting equipment. At 3065K Natural White with CRI 100, the HPL lamp delivers stable tungsten-balanced output appropriate for theatrical, concert, and broadcast lighting at 115V.

The integrated heat sink base manages thermal load in enclosed professional fixtures. Do not touch the quartz envelope with bare hands — skin oils cause hot spots. Verify your fixture accepts this wattage before ordering. Rated life: 2,000 hours.

Applications

ETC Source Four ellipsoidal fixtures – HPL lamps are the specified source for ETC Source Four and UCF-compatible professional stage fixtures.
Theatrical and concert lighting – Stage, theatrical, and concert production at 115V requiring tungsten-balanced halogen output.
Retrofit and maintenance replacement – Confirm base type, wattage, and voltage before ordering.

Safety and Handling

Do not touch the quartz envelope with bare hands. Skin oils cause hot spots leading to premature failure. Use clean gloves or lint-free cloth. Clean with isopropyl alcohol if accidentally touched.
Allow 15-minute cool-down before replacement.
Voltage — 115V: Verify supply circuit matches rated voltage. Operating above rated voltage significantly shortens lamp life.
Enclosed fixture: Use only in fixtures rated for this lamp type.
