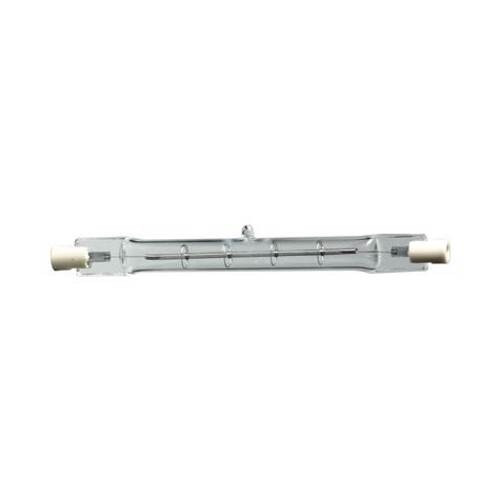

Philips 132266 1500W T3 Double-Ended Halogen Lamp – 240V | 33,000 Lumens | 2900K | R7s Base | P4 Horizontal | Industrial Heating | Order Code 132266

The Philips 132266 is a 1500-watt 240-volt double-ended linear halogen lamp delivering 33,000 initial lumens at 2900K warm white with CRI 100. R7s recessed single-contact base, P4 horizontal burn position, 2,000-hour rated life, dimmable, and fully instant-start make this the correct specification for industrial infrared heating systems, food warming equipment, thermal processing, paint curing, and high-output work site security lighting on 240V circuits. Sold individually. UPC: 046677132262.

⚠ Voltage — 240V only. This lamp is NOT 277V compatible. Verify your fixture circuit voltage before ordering. Operating at incorrect voltage will damage the lamp.

Quick Specs

• Brand: Philips
• Order Code / SKU: 132266
• Full Product Name: 1500T3Q/P/CL 240V
• UPC: 046677132262
• Material Number (12NC): 923932245793
• Lamp Type: Double-Ended Linear Halogen
• Wattage: 1,500W
• Voltage: 240V nominal — NOT 277V compatible
• Lamp Current: 6.25A
• Power Factor: 1.0
• Base Type: R7s (Recessed Single Contact)
• Bulb Shape: T11 (T3)
• Bulb Finish: Clear Quartz
• Color Temperature: 2900K (Warm White)
• CRI: 100
• Initial Lumens: 33,000 lm
• Luminous Efficacy: 22 lm/W
• Rated Life: 2,000 hours
• Switching Cycles: 8,000
• Burn Position: Horizontal (HOR) / P4 (±4° of horizontal)
• Dimming: Fully dimmable with standard dimmers
• Start Type: Instant — no warm-up time
• Overall Length (MOL): 255.6mm (10-1/16 inches)
• Bulb Diameter: 11mm (0.433 inches)
• Light Center Length (LCL): 158.8mm (6.25 inches)
• Sold As: Individually (case quantity: 12)

Product Overview

The Philips 132266 is a 1500-watt double-ended linear halogen lamp — a T3 quartz halogen source in the R7s recessed single-contact base format, designed for high-output industrial, commercial, and specialty lighting applications on 240V circuits. At 33,000 initial lumens with CRI 100, instant start, full dimmability, and 2900K warm white output, this lamp is appropriate for both thermal/heating applications and high-output lighting applications where immediate full brightness and accurate color rendering are required.

The R7s double-ended linear format is widely used in industrial infrared heating systems, food service warming equipment, paint and coating curing ovens, and high-intensity work site lighting fixtures. The double-ended construction runs the filament lengthwise along the entire lamp body, distributing heat evenly and enabling the efficient infrared output required for processing and heating applications. The clear quartz envelope maximizes both visible and infrared energy transmission.

P4 burn position limits horizontal operation to ±4° of horizontal — this lamp must be installed in horizontal or near-horizontal mounting positions. Vertical installation is not permitted and will affect lamp life and performance. The 2,000-hour rated life and 8,000 switching cycles indicate durability appropriate for industrial environments with regular switching cycles.

Important voltage note: This lamp is rated 240V nominal. The source documentation included an internal correction noting the original specification incorrectly listed 277V. This lamp operates at 240V — it is not 277V compatible. Verify your fixture circuit voltage is 240V before installation.

Why Choose This Product

• 33,000 lumens at 1500W — extremely high output linear halogen: Among the highest lumen outputs available in a double-ended T3 linear format — appropriate for industrial work site lighting, high-bay heating, and curing applications requiring maximum intensity from a compact linear source.
• CRI 100 — perfect color accuracy: Halogen continuous-spectrum output renders all colors with absolute accuracy — required for food inspection, paint color-matching, and any curing or heating application where accurate visual assessment is part of the process.
• Instant start — zero warm-up: Full 33,000 lm output immediately at switch-on. No HID warm-up period — appropriate for applications requiring immediate full light level.
• Fully dimmable: Compatible with standard dimmers — enables output control for process heating applications requiring variable intensity and for energy management in lighting applications.
• 2900K warm white — high infrared content: The 2900K color temperature indicates high infrared energy content in the lamp’s output — appropriate for infrared heating and curing applications where near-infrared radiation is the functional energy transfer medium.
• R7s recessed single contact — industry standard industrial base: The R7s double-ended base is the standard for high-wattage linear halogen lamps in industrial fixtures, heating equipment, and work site lighting — direct replacement in compliant R7s lampholders.
• 2,000-hour rated life / 8,000 switching cycles: Long life for a 1500W linear halogen — reduces maintenance frequency in industrial continuous-duty applications.
• CE, UL Listed, RoHS compliant: Full compliance certification for commercial and industrial installation requirements.

Technical Specifications

Dimensions

Product Identifiers and Packaging

Applications

The Philips 132266 1500W/240V double-ended linear halogen is specified for industrial, commercial, and high-output lighting applications requiring a high-wattage R7s linear source on 240V circuits:

• Industrial infrared heating systems – High-wattage R7s linear halogen is the standard heat source for industrial infrared panel heaters, radiant strip heaters, and process heating equipment where high near-infrared output is the primary function.
• Commercial food warming equipment – Food service holding lamps, heat lamp arrays, buffet warming stations, and commercial kitchen pass-through warming equipment requiring 240V linear halogen heat output.
• Thermal processing machinery – Plastic forming, thermoforming, laminating, and thermal bonding equipment where controlled near-infrared radiant heating from a linear source is integrated into the process.
• Paint and coating curing systems – Automotive refinishing booths, industrial coating curing ovens, and IR curing systems where high-intensity near-infrared linear halogen is the curing energy source.
• Specialized industrial ovens – Drying, curing, and heat-treating ovens where linear halogen radiant panels provide rapid, controllable heating with precise zone control.
• Work site security lighting – Temporary high-output work site floodlights and construction site security lighting using 240V R7s linear halogen fixtures where 33,000 lm immediate output is required.

Replacing Your Current Linear Halogen Lamp?

Confirm the following before ordering to ensure a compatible replacement:

• Voltage — 240V: not 277V compatible: This lamp operates at 240V nominal. It is not compatible with 277V circuits. Many commercial facilities use 277V single-phase distribution — verify your fixture circuit is 240V before ordering. Operating at 277V will damage the lamp and may cause fixture failure.
• Base type — R7s recessed single contact: Verify your fixture uses R7s lampholders. Confirm pin spacing matches with your fixture documentation before ordering.
• Burn position — P4 horizontal ±4°: This lamp must be mounted horizontally, within ±4° of horizontal. Vertical or angled mounting is not permitted — it will reduce lamp life and may affect lamp safety. Verify your fixture mounts the lamp horizontally before ordering.
• Wattage: 1,500W — verify your fixture and circuit are rated for 1,500W continuous draw (6.25A at 240V).
• Overall length — 255.6mm (10-1/16 inches): Verify your fixture housing accepts this lamp length. Linear halogen fixtures are sized to specific lamp lengths — confirm before ordering.
• Do not touch the quartz envelope with bare hands: Skin oils cause hot spots that crack or shatter the quartz. Use gloves or a lint-free cloth. Clean with isopropyl alcohol if touched accidentally.
• Allow fixture to cool before replacement: A 1500W lamp generates extreme heat. Allow adequate cool-down time before handling the fixture and lamp.

Ordering Information

• Brand: Philips
• Order Code: 132266
• UPC: 046677132262
• Lamp Type: 1500W 240V Double-Ended Linear Halogen
• Base: R7s Recessed Single Contact
• Burn Position: Horizontal (P4) only
• Sold as: Individual unit (case of 12 available)
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

Compliance and Certifications

• CE Certified: Yes
• UL Listed: Yes
• RoHS Compliant: Yes
• Verify California Title 20 / T24 compliance with manufacturer specification sheet.
• Verify Prop 65 warning requirements with manufacturer specification sheet.

ADL Supply recommends confirming all applicable compliance data with the Philips official product data sheet prior to specification or installation.
