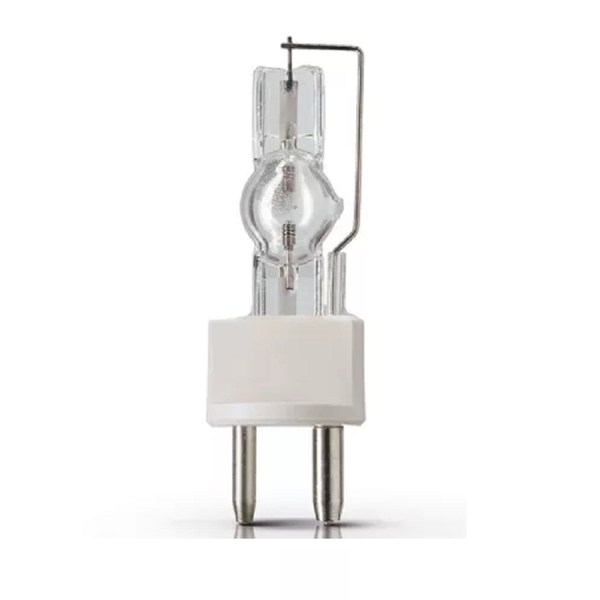

PHILIPS MSR 2000 SA | 2000W Short Arc Metal Halide | 6000K GY22

The Philips MSR 2000 SA (Short Arc) is a professional-grade 2000-watt metal halide lamp engineered for high-intensity stage, concert, and studio lighting. Delivering a massive 174,000 lumens with a crisp 6000K cool white output, this lamp provides the brilliant, daylight-balanced light required for large-scale entertainment venues. Featuring Philips' proprietary P3 technology, it allows for higher pinch temperatures and a universal operating position, ensuring reliability and consistent performance in any fixture orientation. With an 85 CRI for vivid color rendering and a compact GY22 bi-pin base, it is the trusted light source for high-performance luminaires like the Coemar CF 1200 HE and High End Cyberlight 2.0.

Product Overview

The MSR 2000 SA (Order Code: 928173205114) stands out in the professional lighting industry for its high luminous efficacy of 87 lm/W and its ability to maintain high beam intensity through a very short 7.0mm arc length. This compact design allows luminaire manufacturers to create smaller, more efficient fixtures without sacrificing power. The combination of high color rendering (85 CRI) and daylight-balanced 6000K output makes it indispensable for live broadcast, studio recording, and high-energy concert touring, where accurate skin tones and vibrant set colors are non-negotiable.

• P3 Technology: Enables use at higher temperatures, extending the lamp's life and reducing early failures in demanding touring conditions.
• High Color Accuracy: 85 CRI ensures professional-grade color rendition for theater and television.
• Universal Burn Position: Can be operated in any orientation, providing total flexibility for moving head fixtures.
• Optimized Beam Control: Short arc length enables precise optical focusing and powerful beam throws.

Technical Specifications

• Brand: Philips MSR
• Order Product Name: MSR 2000 SA 1CT/8
• Order Code / SKU: 928173205114
• Wattage: 2000W
• Lamp Current: 21.5A
• Base Type: GY22 (Bi-Pin Prefocus)
• Color Temperature: 6000K
• CRI: 85
• Initial Lumens: 174,000 lm
• Luminous Efficacy: 87 lm/W
• Rated Average Life: 750 Hours
• Arc Length: 7.0 mm
• Max Overall Length (MOL): 5.315" (135 mm)
• Bulb Diameter: 1.338" (34 mm)

Safety & Installation Guide

• Enclosed Fixtures Only: This lamp must be used in a fully enclosed fixture designed to contain high-pressure lamp fragments in the event of a rupture.
• Handling: Never touch the quartz bulb with bare hands. Use gloves; skin oils can cause "hot spots" that lead to premature failure.
• Installation: Ensure the lamp is securely seated in the GY22 socket and that the cooling system of the luminaire is fully functional to handle the 2000W heat output.
• Lamp Breakage: If a lamp breaks, ventilate the area for 30 minutes. Use gloves to clean up debris and dispose of in a sealed plastic bag at a local recycling facility. Do not use a vacuum.

Ideal Applications

• Concert Touring: High-output moving heads for live musical performances.
• Theater & Stage: Spotlights and wash fixtures for professional dramatic productions.
• Studio & Broadcast: Daylight-balanced lighting for television and film sets.
• Entertainment Venues: Large-scale architectural and outdoor event illumination.
