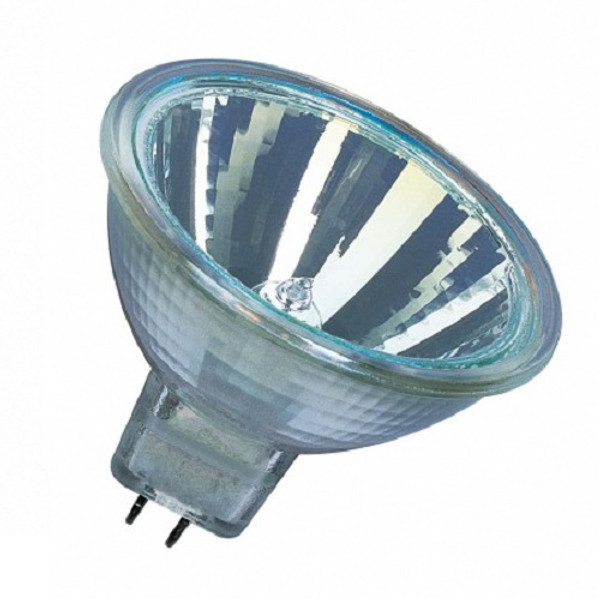

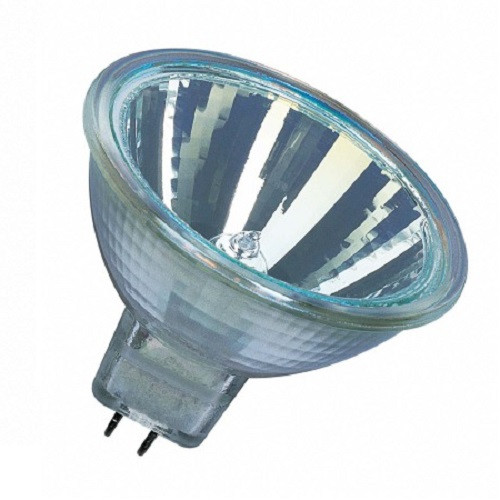

SYLVANIA PHOTO-OPTIC | 360W 86V | ENX-5 MR16 GY5.3 Projection Lamp

The Sylvania 54913 (ENX-5) is a high-intensity halogen projection lamp engineered for precision optical systems and overhead projectors. Operating at 86 volts, this 360-watt lamp features a faceted MR16 reflector designed to deliver a concentrated beam of light with a specific working distance of 11.64 inches (296mm). Built with a GY5.3 2-pin base and a CC-8 filament, it offers a perfect CRI of 100, ensuring absolute color fidelity and sharp image projection. Trusted by professionals for optical instrumentation and display systems, the ENX-5 provides the reliable, high-lumen output required for critical visual applications.

Precision Optics for Professional Projection

The Sylvania ENX-5 (54913) is crafted to meet the rigorous demands of overhead projection and specialized display lighting. Its faceted dichroic reflector helps manage heat by reflecting light forward while allowing infrared radiation to pass through the back, protecting sensitive transparencies and optical components. With a Universal burn position and a precise 296mm working distance, this lamp ensures uniform illumination and edge-to-edge clarity. As with all high-performance halogen lamps, it is vital to handle the bulb with a lint-free cloth to prevent skin oils from causing premature failure.

• Optimized Working Distance: Specifically calibrated for an 11.64" focal point.
• High-CRI Performance: 100 CRI ensures that projected images maintain true-to-life colors.
• Dichroic Reflector: Efficiently directs light while minimizing heat buildup in the optical path.
• Technical Reliability: Engineered for professional overhead projectors and scientific instrumentation.

Technical Specifications

• Brand: Sylvania
• Order Code: 54913
• ANSI Code: ENX-5
• Wattage: 360W
• Voltage: 86V
• Lumen Output: 540 lm
• CRI: 100
• Base Type: GY5.3 (2-Pin)
• Filament: CC-8
• Bulb Shape: MR16
• Working Distance: 11.64 inches (296mm)
• MOL: 1.7 inches (43mm)
• Diameter: 2.0 inches (51mm)
• Rated Average Life: 75 Hours
• Burn Position: Universal

Primary Areas of Application

• Overhead Projectors: Replacement lamp for high-output educational and professional projectors.
• Optical Instrumentation: Precise light source for laboratory and measurement equipment.
• Specialty Displays: High-intensity accent lighting requiring controlled beam patterns.
• Technical Imaging: Applications where color accuracy and concentrated brightness are critical.
