Product Overview

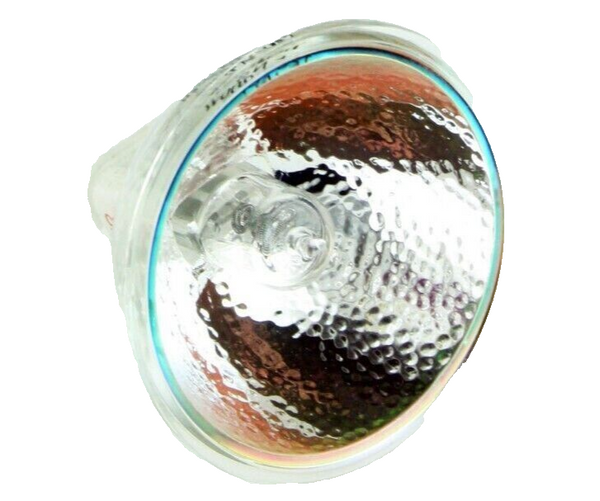

Ushio 1000332 ENG JCR120V-300W – 300W | 120V | 3450K Daylight | ANSI ENG | GY5.3 Oval 2-Pin
The Ushio 1000332 ENG JCR120V-300W is a 300W 120V Halogen MR16 Specular Reflector — Photo-Optic lamp, ANSI ENG, GY5.3 Oval 2-Pin base, 3450K Daylight color temperature, 15 hours rated life. Designed for professional audio/visual projection, medical instruments, and specialty optical illumination. UPC: 48777121702.
Wattage 300W Halogen | Voltage 120V Operating | Color Temp 3450K CCT | Lumens — Initial lm | Rated Life 15 Hours |
Quick Specs
- Brand: Ushio
- Ushio Catalog Number: 1000332
- UPC: 48777121702
- ANSI Code: ENG
- Lamp Type: Halogen MR16 Specular Reflector — Photo-Optic
- Bulb Type: MR16 Reflector
- Wattage: 300W
- Operating Voltage: 120V
- Color Temperature: 3450K Daylight
- Rated Average Life: 15 hours
- Base Type: GY5.3 Oval 2-Pin
- Burn / Operating Position: Base Down to Horizontal (BD/Hor)
Product Overview
The Ushio 1000332 ENG JCR120V-300W is a 300W 120V halogen reflector lamp for professional audio/visual projection, medical instruments, and specialty optical illumination. At 3450K Daylight this lamp provides precise, high-intensity output. Rated life: 15 hours.
Do not touch the lamp envelope with bare hands. Skin oils cause hot spots leading to premature failure. Use clean gloves or lint-free cloth. Allow full cool-down before handling.
Applications
- Professional audio/visual projection – Professional audio/visual projection, medical instruments, and specialty optical illumination.
- Retrofit and maintenance replacement – Confirm ANSI code, wattage, voltage, and base type before ordering.
Safety and Handling
- Do not touch the lamp envelope with bare hands. Skin oils cause hot spots leading to premature failure. Use clean gloves or lint-free cloth.
- Voltage — 120V: Verify supply matches rated voltage. Operating above rated voltage significantly shortens lamp life.
- Enclosed fixture only: Use only in approved enclosed optical fixtures.
- Allow 15-minute cool-down before replacement.
Ordering Information
- Brand: Ushio
- Ushio Catalog #: 1000332
- ANSI Code: ENG
- UPC: 48777121702
- Wattage / Voltage: 300W / 120V
- Base: GY5.3 Oval 2-Pin
- Case quantities and bulk pricing: Contact ADL Supply for volume orders.
Compliance
- Verify RoHS and Prop 65 compliance with Ushio specification sheet.
- Halogen lamp — no mercury content. Standard electronic waste disposal applies.
ADL Supply recommends confirming all specifications with the Ushio product data sheet prior to installation.
