Product Overview

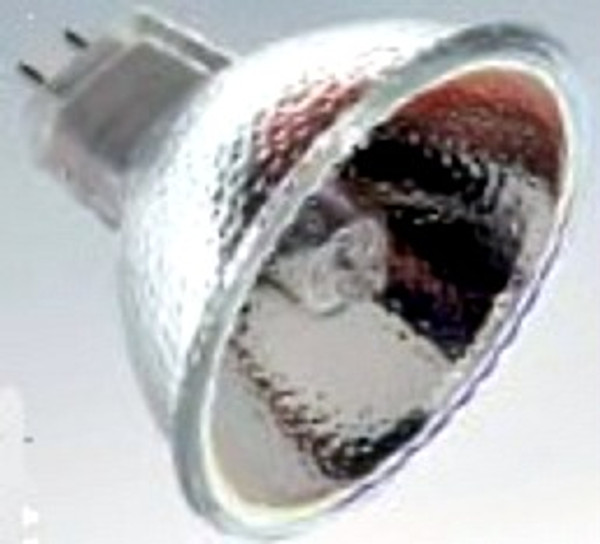

Ushio 1000940 JCR120V-150W/B – 150W | 120V | 3050K Warm White | ANSI — | GY5.3 Oval 2-Pin

The Ushio 1000940 JCR120V-150W/B is a 150W 120V Halogen MR16 Specular Reflector — Photo-Optic lamp, GY5.3 (Bi-Pin) base, Verify with manufacturer specification sheet rated life. Designed for professional audio/visual projection, medical instruments, and specialty optical illumination.

Wattage

150W

Halogen MR16

Voltage

120V

Operating

Color Temp

3050K

CCT

Lumens

—

Initial lm

Rated Life

100

Hours

Quick Specs

Brand: Ushio
Ushio Catalog Number: 1000940
Lamp Type: Halogen MR16 Specular Reflector — Photo-Optic
Color Temperature: 3050K Warm White
Wattage: 150W
Operating Voltage: 120V
Rated Average Life: 100 hours
Base Type: GY5.3 Oval 2-Pin
Overall Length (MOL): (MOL): 44.5 mm (1.75 in)
Filament: Type: CC-8
Burn / Operating Position: Horizontal (BD/HZ)

Product Overview

The Ushio 1000940 JCR120V-150W/B is a 150W 120V halogen lamp for professional audio/visual projection, medical instruments, and specialty optical illumination. Rated life: Verify with manufacturer specification sheet.

Do not touch the lamp envelope with bare hands. Allow cool-down before handling. Use only in approved enclosed fixtures.

Applications

Professional audio/visual projection — Professional audio/visual projection, medical instruments, and specialty optical illumination.
Retrofit and maintenance replacement – Confirm lamp type, wattage, voltage, and base before ordering.

Safety and Handling

Do not touch the lamp envelope with bare hands. Skin oils cause hot spots leading to premature failure. Use clean gloves or lint-free cloth.
Voltage — 120V: Verify supply matches rated voltage.
Enclosed fixture only. Use only in approved enclosed fixtures.
Allow 15-minute cool-down before replacement.
