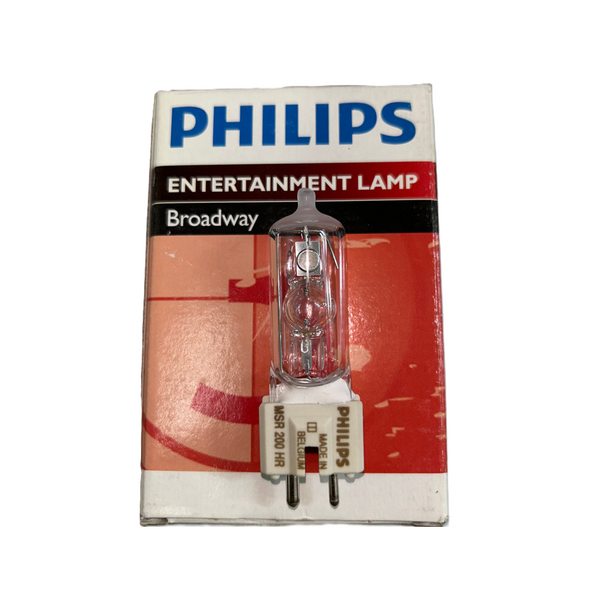

PHILIPS MSR 200HR | 200W 70V Hot Restrike | 6000K GZY9.5

The Philips MSR 200HR (24499-6) is a professional-grade, single-ended metal halide lamp featuring Advanced P3 Technology. Specifically designed for the studio, film, and theater industries, this lamp delivers 15,000 lumens of high-intensity 6000K true daylight. Its standout "Hot Restrike" capability allows the lamp to re-ignite instantly after a power interruption, eliminating the wait time for cooling. With a high 92 CRI and a GZY9.5 bi-pin base, it provides exceptional color rendering and zero arc movement, ensuring a stable, pure white beam for critical photography and stage applications.

Product Overview

The Philips MSR 200 HR is engineered to handle extreme thermal stress, making it reliable in high-temperature film sets and theater rigs. Its 6000K daylight spectrum is optimized for camera sensors, ensuring that skin tones and set textures are captured with clinical precision. This lamp is a direct replacement for Philips code #32466-5 and is used globally in moving head fixtures, scanners, and solar simulation equipment. The universal burn position gives designers total flexibility, while the compact 80mm length allows for integration into high-performance optical reflectors.

• Hot Restrike (HR): Instant re-ignition ensures daylight-quality lighting is always available, even after power dips.
• P3 Technology: Provides enhanced thermal stability, leading to more consistent performance and fewer premature failures.
• High Efficacy: Delivers a bright 80 lm/W, maximizing intensity while managing energy consumption in studio environments.
• Daylight Consistency: Maintains color stability within ±200K, preventing "warm-up" color shifts during critical takes.

Technical Specifications

• Brand: Philips Broadway / SSTV
• Model: MSR 200 HR 1CT/4
• Ordering Code: 24499-6 (Replaces 32466-5)
• UPC Code: 8727900924169
• Wattage: 200W
• Operating Voltage: 70V
• Ignition Supply: 207V / 3.3A
• Base Type: GZY9.5 (Bi-Pin)
• Color Temperature: 6000K (Daylight)
• CRI: 92
• Initial Lumens: 15,000 lm
• Luminous Efficacy: 80 Lm/W
• Rated Average Life: 200 Hours
• Burn Position: Universal (Any Position)
• Dimensions: 80mm (MOL) x 20mm (Diameter)

Safety & System Requirements

• Ballast Requirements: Requires a high-quality electronic or magnetic ballast designed for 200W Hot Restrike MSR lamps.
• Fixture Requirement: Must be used in fully enclosed fixtures due to high internal operating pressures and UV emission.
• UV Warning: This lamp emits short-wave ultraviolet radiation. Do not use if the outer envelope is damaged. Avoid direct skin or eye exposure.
• Handling: Never touch the quartz glass with bare fingers. Oils can cause failure-inducing "hot spots." Clean only with alcohol if accidentally touched.

Primary Applications

• Film & TV: Professional on-location and studio production lighting.
• Theater & Stage: High-intensity spotlights and theatrical moving head fixtures.
• Events: Large-scale concert rigs and event spotlighting.
• Specialty: Solar simulation and professional photography lighting.
