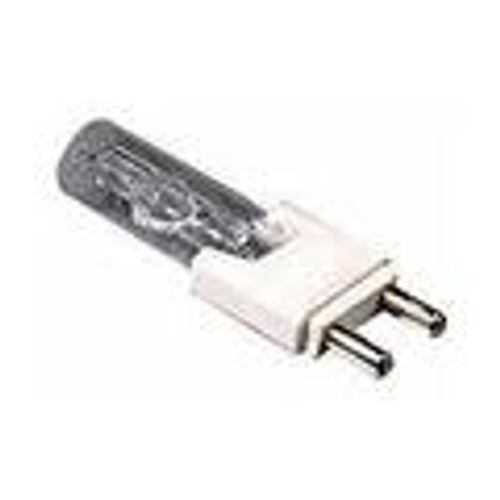

Sylvania 54063 HMI 575W/SEL/XS – 575W | 6000K Daylight White | 49,000 Lumens | CRI 90 | G22 Medium Bipost

The Sylvania 54063 HMI 575W/SEL/XS is a 575W 6000K Daylight White HMI Metal Halide lamp delivering 49,000 initial lumens, CRI 90, 95V operating voltage, 7A operating current, 1,000 hours rated life, G22 Medium Bipost base. Item: —.

Quick Specs

• Brand: Sylvania
• Item / Catalog Number: —
• Lamp Type: HMI Metal Halide (Hydrargyrum Medium-arc Iodide) — Film/Broadcast
• Wattage: 575W
• Operating Voltage: 95V
• Operating Current: 7A
• Color Temperature: 6000K Daylight White
• CRI: 90
• Initial Lumens: 49,000 lm
• Luminous Efficacy: 85 (LPW)
• Rated Average Life: 1,000 hours
• Base Type: G22 Medium Bipost
• Overall Length: 145mm
• Burn / Operating Position: Position

Product Overview

The Sylvania 54063 HMI 575W/SEL/XS is a 575W HMI metal halide discharge lamp producing 49,000 lumens at 6000K Daylight White with CRI 90, 85 (LPW) lm/W efficacy. HMI lamps are the professional standard for daylight-balanced continuous illumination in film, broadcast, large-venue stage, and daylight-balanced professional production lighting — delivering significantly higher luminous efficacy than tungsten halogen while maintaining 6000K daylight color temperature matched to camera systems.

Requires a dedicated HMI electronic ballast rated for 575W. Allow full warm-up before use. Burn position: Position. Mercury content — dispose per local regulations. Visit lamprecycle.org.

Applications

• Film and broadcast production – 575W HMI for key and fill lighting on set.
• Large-venue stage and event lighting – High-output daylight-balanced HMI for concerts, theatrical venues, and large events.
• Solar simulation – Stable 6000K Daylight White CRI 90 output for solar simulators and photovoltaic testing.

Safety and Installation Notes

• Compatible ballast required. Do not connect to standard fluorescent or halogen ballasts.
• Do not touch envelope with bare hands.
• Mercury disposal: Contains mercury. Visit lamprecycle.org.

Ordering Information

• Brand: Sylvania
• Item / Catalog Number: —
• UPC / EAN: —
• Wattage / Voltage: 575W / 95V
• Base: G22 Medium Bipost
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

Compliance

• Verify RoHS compliance with manufacturer specification sheet.
• Verify applicable FDA radiation performance compliance for your application.
• Verify Prop 65 requirements with manufacturer specification sheet.
• This lamp contains mercury — dispose per local lamp recycling regulations. Visit lamprecycle.org.

ADL Supply recommends confirming all specifications with the manufacturer product data sheet prior to specification or installation.
