Sylvania 69344 HBO 2700 W/CIL 2700W 24V HBO Mercury Short-Arc (Microlithography) Lamp

Sylvania 69344 HBO 2700 W/CIL 2700W 24V HBO Mercury Short-Arc (Microlithography) Lamp

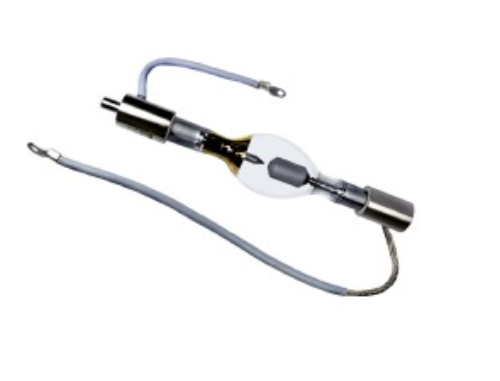

The Sylvania 69344 (HBO 2700 W/CIL) is a 2700W mercury short-arc lamp operating at 24V, DC, 110.0A, with a rated life of 1500 hours. This is a professional specialty lamp for hbo mercury short-arc (microlithography) fixtures and equipment – it is not a general-purpose replacement bulb. Contains mercury. Not for sale or shipment in CA, CO, HI, ME, MN, OR, RI, VT, and must be recycled per state regulations – see lamprecycle.org.

Technical Specifications

Product Overview

The Sylvania 69344 is a mercury short-arc lamp in the HBO Mercury Short-Arc (Microlithography) family, built for professional applications where this exact ordering code, wattage, and voltage are specified by the fixture or equipment manufacturer. Mercury short-arc lamps of this type are precision components – the arc gap, base configuration, and operating position requirements are engineered for a specific fixture design and are not generally interchangeable with other wattages or ordering codes in the same family.

Operating position for this lamp is specified as Vertical, anode. Rated for 1500 hours of average life, this lamp should only be installed in equipment that explicitly calls for the Sylvania 69344 or its HBO 2700 W/CIL ordering abbreviation.

Compatible Applications

• Professional fixtures and equipment specified for the Sylvania 69344 (HBO 2700 W/CIL)
• HBO Mercury Short-Arc (Microlithography) applications requiring 2700W at 24V
• Replacement in existing installations that call for this exact ordering code

Before Ordering – Verify

• Confirm your equipment specifies the Sylvania 69344, ordering abbreviation HBO 2700 W/CIL
• Confirm supply voltage is 24V and current type (DC) match your equipment
• Confirm operating position is rated for Vertical, anode – short-arc and metal halide lamps are position-sensitive and can fail prematurely or unsafely if mounted incorrectly
• Confirm the base connection (Anode SFa33.5/50 / Cathode SFa33.5-14.59) matches your fixture's socket

Safety and Handling Guidelines

• This is a high-pressure arc lamp. It can shatter violently if mishandled, dropped, or operated outside its rated fixture – always use eye and face protection and follow the fixture manufacturer's handling procedures
• Only operate this lamp inside an enclosed fixture designed for it; never operate a short-arc lamp in the open
• Allow the lamp to cool completely before handling or relamping
• Avoid touching the bulb envelope with bare skin; oils can shorten lamp life and cause premature failure – handle with a clean cloth or gloves
• Do not exceed the equipment's rated maximum wattage
• Dispose of in accordance with local and state mercury-lamp regulations

Compliance

• Contains mercury – not for sale or shipment in CA, CO, HI, ME, MN, OR, RI, VT; recycle per lamprecycle.org
• Use only in equipment designed for this lamp type and rating

Ordering Information

• Sylvania Order Code: 69344
• Ordering Abbreviation: HBO 2700 W/CIL
• Manufacturer Part Number: HBO2700WCIL-69344
• UPC: 046135693441

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
