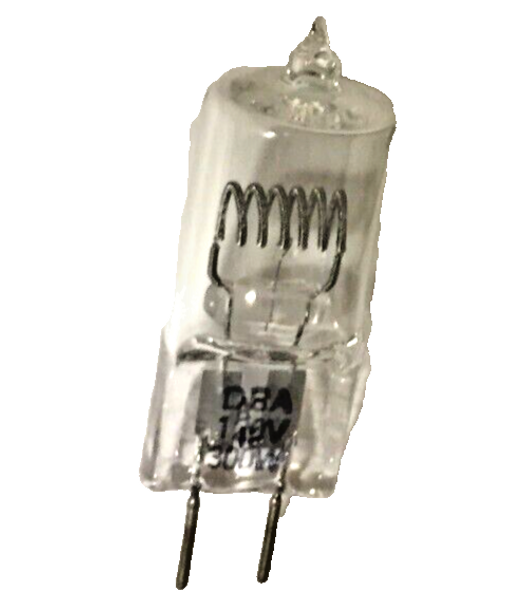

Ushio 1000216 DRA JCD120V-300W – 300W 120V Halogen Lamp
The Ushio 1000216 DRA JCD120V-300W is a 300-watt, 120-volt halogen lamp with a 2-Pin Base (G6.35). Ushio lists it with a 300-hour average life and a 3100K color temperature, rated at 6,900 lumens.
This lamp is identified by the DRA lamp code and is listed under Ushio description JCD120V-300W.
| Wattage 300W Halogen | Voltage 120V Operating | Color Temp 3100K CCT | Lumens 6,900 Initial lm | Rated Life 300 Hrs Average Life |
Product Overview
The Ushio 1000216 is a JCD-series halogen lamp listed in the Halogen Low Voltage Bi-Pin section of the Ushio halogen catalog. Per Ushio, this lamp is for use only in approved enclosed halogen fixtures.
Always confirm the lamp code, wattage, voltage, base type, and burn position against your existing lamp or equipment manual before ordering.
Why Choose This Product
- DRA Lamp Code: Helps match the lamp to equipment specified for this lamp code.
- 300W at 120V: Wattage and voltage as published by Ushio for catalog number 1000216.
- Published Output: 6,900 lumens and 3100K color temperature per the Ushio catalog.
- 300-Hour Rated Life: Ushio’s published average life for this lamp.
- G6.35 Base: 2-Pin Base (G6.35).
- Burn Position: Base Down to Horizontal (BD/Hor).
Technical Specifications
| Brand | Ushio |
| Ushio Catalog Number | 1000216 |
| UPC | 048777113790 |
| ANSI / Common Lamp Code | DRA |
| Manufacturer Description | JCD120V-300W |
| Lamp Series | JCD |
| Catalog Category | Halogen Low Voltage Bi-Pin |
| Wattage | 300W |
| Operating Voltage | 120V |
| Color Temperature | 3100K |
| Initial Lumens | 6,900 |
| Rated Average Life | 300 Hours |
| Base Type | 2-Pin Base (G6.35) |
| Filament Type | CC-6 |
| Bulb Finish | Clear |
| Burn Position | Base Down to Horizontal (BD/Hor) |
| Bulb Diameter (A) | 16.0 mm |
| Maximum Overall Length (MOL, B) | 50.0 mm |
| Light Center Length (LCL) (C) | 33.0 mm |
| Manufacturer Case Quantity | 10 |
Compatible Applications
- Fixtures and equipment specified for the DRA JCD120V-300W lamp
- Maintenance replacement where voltage (120V), wattage (300W), base (G6.35), and burn position all match
- Approved enclosed halogen fixtures only, as required by Ushio
Cross Reference Numbers
- Ushio Catalog Number: 1000216
- ANSI / Common Lamp Code: DRA
- Manufacturer Description: JCD120V-300W
- UPC: 048777113790
- Common Search Terms: DRA lamp, DRA JCD120V-300W, JCD120V-300W, 300W 120V halogen lamp
Before Ordering Verify
- Voltage: This lamp is rated for 120V operation. Do not install in fixtures requiring a different voltage.
- Wattage: Confirm your equipment is rated for a 300W lamp.
- Base Type: Confirm the socket matches the 2-Pin Base (G6.35).
- Burn Position: Ushio lists this lamp for base down to horizontal (bd/hor) operation; confirm it matches how your fixture holds the lamp.
- Dimensions: Ushio lists a maximum overall length of 50.0 mm and a bulb diameter of 16.0 mm; confirm they fit your fixture.
Important Safety & Installation Notes
- Do Not Touch the Bulb With Bare Hands: Skin oils can create hot spots that may cause premature failure. Use clean gloves or a lint-free cloth.
- Use Approved Fixtures Only: Ushio specifies this lamp for use only in approved enclosed halogen fixtures. Install only in equipment designed for this lamp type, wattage, and voltage.
- Allow Cooling Before Replacement: Let the lamp and fixture cool before handling or replacing.
- Verify Voltage Before Installing: Operating above rated voltage can significantly shorten lamp life or cause lamp failure.
- Disconnect Power: Turn off and disconnect power before installing or removing the lamp.
