Product Overview

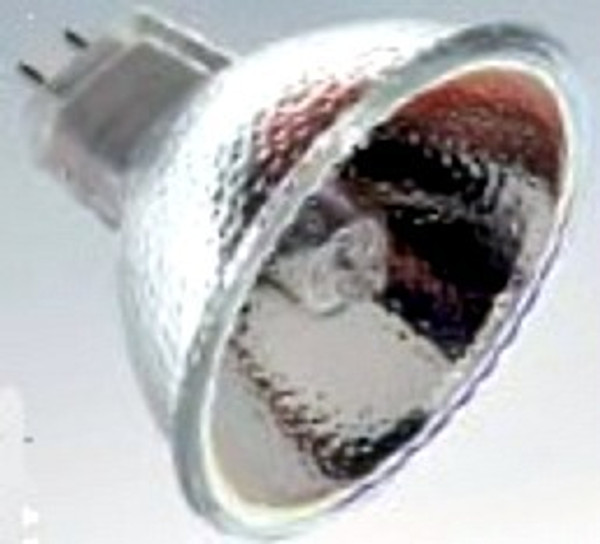

Ushio 1000319 JCR21V-150W ELD/EJN – 150W | 21V | 3400K Natural White | ANSI ELD/EJN | GX5.3
The Ushio 1000319 JCR21V-150W ELD/EJN is a 150W 21V Halogen MR16 Specular Reflector — Photo-Optic lamp, ANSI ELD/EJN, GX5.3 base, 3400K Natural White color temperature, 40 hours rated life. Designed for professional audio/visual projection, medical instruments, and specialty optical illumination. UPC: 48777120798. MPN: EJNELD-21V150W.
Wattage 150W Halogen | Voltage 21V Operating | Color Temp 3400K CCT | Lumens — Initial lm | Rated Life 40 Hours |
Quick Specs
- Brand: Ushio
- Ushio Catalog Number: 1000319
- Manufacturer Part Number: EJNELD-21V150W
- UPC: 48777120798
- ANSI Code: ELD/EJN
- Lamp Type: Halogen MR16 Specular Reflector — Photo-Optic
- Bulb Type: MR16 Reflector
- Wattage: 150W
- Operating Voltage: 21V
- Color Temperature: 3400K Natural White
- Rated Average Life: 40 hours
- Base Type: GX5.3
- Burn / Operating Position: Base Down to Horizontal (BD/Hor)
Product Overview
The Ushio 1000319 JCR21V-150W ELD/EJN is a 150W 21V halogen reflector lamp for professional audio/visual projection, medical instruments, and specialty optical illumination. At 3400K Natural White this lamp provides precise, high-intensity output. Rated life: 40 hours.
Do not touch the lamp envelope with bare hands. Skin oils cause hot spots leading to premature failure. Use clean gloves or lint-free cloth. Allow full cool-down before handling.
Applications
- Professional audio/visual projection – Professional audio/visual projection, medical instruments, and specialty optical illumination.
- Retrofit and maintenance replacement – Confirm ANSI code, wattage, voltage, and base type before ordering.
Safety and Handling
- Do not touch the lamp envelope with bare hands. Skin oils cause hot spots leading to premature failure. Use clean gloves or lint-free cloth.
- Voltage — 21V: Verify supply matches rated voltage. Operating above rated voltage significantly shortens lamp life.
- Enclosed fixture only: Use only in approved enclosed optical fixtures.
- Allow 15-minute cool-down before replacement.
Ordering Information
- Brand: Ushio
- Ushio Catalog #: 1000319
- ANSI Code: ELD/EJN
- UPC: 48777120798
- Wattage / Voltage: 150W / 21V
- Base: GX5.3
- Case quantities and bulk pricing: Contact ADL Supply for volume orders.
Compliance
- Verify RoHS and Prop 65 compliance with Ushio specification sheet.
- Halogen lamp — no mercury content. Standard electronic waste disposal applies.
ADL Supply recommends confirming all specifications with the Ushio product data sheet prior to installation.
