Ushio 1001345 QIH400-2000/VB – 2000W 400V Quartz Infrared Heater Lamp

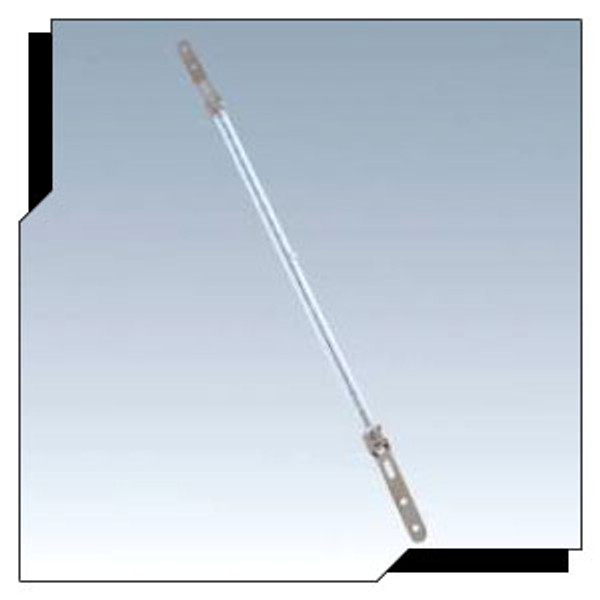

The Ushio 1001345 QIH400-2000/VB is a 2000W, 400V quartz infrared heater (QIH) lamp with a vertical-burning rating, built with clear quartz and a metal clip base. It has a Maximum Overall Length of 623.0mm and a 410mm lighted (filament) length, with 508mm contact-to-contact spacing. Rated color temperature is 2500K and average life is 5000 hours. Physically it is a straight double-ended lamp, lead wire connection. It cross-references to Ushio's alternate designation 13765X.

Technical Specifications

Product Overview

Quartz infrared heater (QIH) lamps provide clean, instantaneous, precisely controlled radiant heat for applications such as baking, drying, curing, dehydrating, warming of foods, and general area warming. Unlike convection or forced-air heating, a QIH lamp reaches full output almost immediately and can be cycled on/off or dimmed for tight process control, without the lag of a heated air mass.

This 1001345 is rated 2000W at 400V with a 623.0mm maximum overall length and a 410mm lighted length. It uses clear quartz. The lamp terminates in a metal clip base, rated for vertical burning position.

At a rated 5000-hour average life and 2500K color temperature, this lamp fits process heating, scientific/medical, and semiconductor applications where Ushio's QIH lamps are commonly specified for their precise, controllable, instant-on heat output.

Compatible Applications

• Industrial process heating: baking, drying, curing, dehydrating
• Food warming and general area warming
• Scientific and medical applications: infant environment warming, heat therapy, spa/sauna heating, laboratory environmental control
• Semiconductor manufacturing: precise temperature and heating-zone control

Before Ordering – Verify

• Confirm voltage matches 400V — QIH lamps are voltage-specific across this family (104V through 600V); a lamp built for one voltage is not interchangeable with another
• Confirm base type (Metal Clip Base) against the fixture/holder — the seven QIH base types (metal clip, R7s contact, metal sleeve, lead wire, round or flat ceramic) are not interchangeable
• Confirm physical fit: MOL 623.0mm, contact-to-contact 508mm against the available socket-to-socket or clip-to-clip distance in the fixture

Safety and Handling Guidelines

• Quartz infrared heater lamps generate significant heat and infrared radiation — do not touch the lamp during or immediately after operation
• De-energize the fixture and allow the lamp to cool fully before installation, removal, or servicing
• Do not touch the quartz envelope with bare skin during installation; oils from skin contact can cause the quartz to fail prematurely under heat — handle with clean gloves or a cloth
• Install and operate only in fixtures rated for this lamp's wattage and voltage, with adequate clearance from combustible materials
• Follow the manufacturer's specified burning position (vertical) — operating outside the rated position can shorten lamp life or cause failure
• Follow all applicable national and local electrical and fire codes for infrared heating installations

Compliance

• ISO 9001 Certified manufacturing
• Manufactured in the USA
• Specifications per Ushio's QIH product documentation; subject to change without notice by the manufacturer

Ordering Information

• Order Code: 1001345
• Ushio Product Code: QIH400-2000/VB
• Wattage / Voltage: 2000W / 400V
• Alternate / cross-reference designation: 13765X

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
