Ushio 1001353 QIH240-500/ZD – 500W 240V Quartz Infrared Heater Lamp

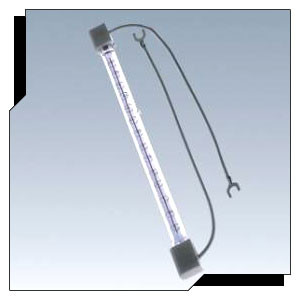

The Ushio 1001353 QIH240-500/ZD is a 500W, 240V quartz infrared heater (QIH) lamp with a white coated reflector, built with clear quartz and a flat ceramic base with lead wire. It has a Maximum Overall Length of 227.5mm and a 165mm lighted (filament) length. Rated color temperature is 2600K and average life is 4000 hours. Physically it is a bent (U-shaped) lead ends with a metal clip or sleeve base. It cross-references to Ushio's alternate designation 13169Z/98.

Technical Specifications

Product Overview

Quartz infrared heater (QIH) lamps provide clean, instantaneous, precisely controlled radiant heat for applications such as baking, drying, curing, dehydrating, warming of foods, and general area warming. Unlike convection or forced-air heating, a QIH lamp reaches full output almost immediately and can be cycled on/off or dimmed for tight process control, without the lag of a heated air mass.

This 1001353 is rated 500W at 240V with a 227.5mm maximum overall length and a 165mm lighted length. It uses clear quartz, and a white coated reflector that directs radiant output to one side rather than radiating 360° around the tube. The lamp terminates in a flat ceramic base with lead wire.

At a rated 4000-hour average life and 2600K color temperature, this lamp fits process heating, scientific/medical, and semiconductor applications where Ushio's QIH lamps are commonly specified for their precise, controllable, instant-on heat output.

Compatible Applications

• Industrial process heating: baking, drying, curing, dehydrating
• Food warming and general area warming
• Scientific and medical applications: infant environment warming, heat therapy, spa/sauna heating, laboratory environmental control
• Semiconductor manufacturing: precise temperature and heating-zone control

Before Ordering – Verify

• Confirm voltage matches 240V — QIH lamps are voltage-specific across this family (104V through 600V); a lamp built for one voltage is not interchangeable with another
• Confirm base type (Flat Ceramic Base with Lead Wire) against the fixture/holder — the seven QIH base types (metal clip, R7s contact, metal sleeve, lead wire, round or flat ceramic) are not interchangeable
• Confirm physical fit: MOL 227.5mm against the available socket-to-socket or clip-to-clip distance in the fixture
• This lamp has a one-sided white coated reflector — confirm reflector orientation requirements for the fixture, since it directs heat rather than radiating uniformly around the tube

Safety and Handling Guidelines

• Quartz infrared heater lamps generate significant heat and infrared radiation — do not touch the lamp during or immediately after operation
• De-energize the fixture and allow the lamp to cool fully before installation, removal, or servicing
• Do not touch the quartz envelope with bare skin during installation; oils from skin contact can cause the quartz to fail prematurely under heat — handle with clean gloves or a cloth
• Install and operate only in fixtures rated for this lamp's wattage and voltage, with adequate clearance from combustible materials
• Follow the manufacturer's specified burning position (horizontal, or per fixture design) — operating outside the rated position can shorten lamp life or cause failure
• Follow all applicable national and local electrical and fire codes for infrared heating installations

Compliance

• ISO 9001 Certified manufacturing
• Manufactured in the USA
• Specifications per Ushio's QIH product documentation; subject to change without notice by the manufacturer

Ordering Information

• Order Code: 1001353
• Ushio Product Code: QIH240-500/ZD
• Wattage / Voltage: 500W / 240V
• Alternate / cross-reference designation: 13169Z/98

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
