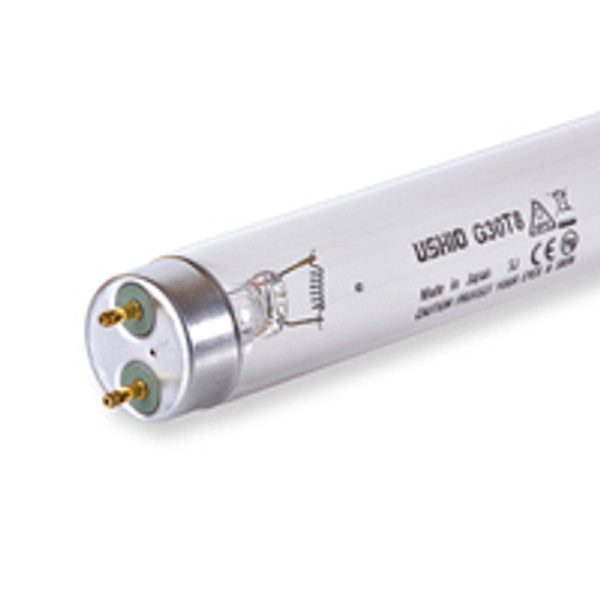

Ushio 3000009 G30T8 – 30W | 96V | UV-C 254nm (not visible light) | ANSI — | Bipin

⚠ UV-C RADIATION HAZARD — GERMICIDAL LAMP. The Ushio 3000009 G30T8 is a 30W UV-C germicidal fluorescent lamp for germicidal air and surface disinfection in HVAC systems, water treatment, and institutional sterilization applications. Rated life: 8,000 hours. This lamp emits UV-C radiation (254nm) that is hazardous to eyes and skin. Never operate with humans or animals present in the irradiation zone. Use only with appropriate UV-blocking shielding and safety interlocks. UPC: 48777246580. MPN: G30T8-30w-GERMICIDAL.

Quick Specs

• Brand: Ushio
• Ushio Catalog Number: 3000009
• Manufacturer Part Number: G30T8-30w-GERMICIDAL
• UPC: 48777246580
• Lamp Type: UV-C Germicidal Fluorescent Lamp
• Operating Voltage: 96V
• Wattage: 30W
• Color Temperature: UV-C 254nm (not visible light)
• Rated Average Life: 8,000 hours
• Base Type: Bipin
• Overall Length (MOL): (35.16in) 893mm x DIA 1in
• Mercury Content: Contains mercury — dispose per local regulations. Visit lamprecycle.org.

Product Overview

⚠ WARNING: UV-C GERMICIDAL LAMP — RADIATION HAZARD
The Ushio 3000009 G30T8 is a 30W UV-C germicidal lamp operating at 254nm, the peak germicidal wavelength for DNA damage to microorganisms. Rated life: 8,000 hours. Low mercury construction for reduced environmental impact.

UV-C radiation at 254nm is invisible and extremely dangerous to eyes and skin. Direct or reflected exposure can cause photokeratitis (arc eye), corneal damage, and severe skin burns within seconds. This lamp must only be operated with appropriate UV-blocking shielding, safety interlocks preventing human access during operation, and adequate ventilation to remove ozone produced by UV-C irradiation of air.

Applications

• ⚠ GERMICIDAL USE ONLY — Air and surface UV-C disinfection in HVAC ducts, water treatment, and institutional sterilization systems. Never use as general illumination.
• Retrofit and maintenance replacement – Confirm lamp type, wattage, voltage, and base before ordering.

⚠ UV-C Radiation Safety — Mandatory Requirements

• ⚠ NEVER OPERATE with humans, animals, or unprotected surfaces present in the UV-C irradiation zone. UV-C at 254nm causes severe eye injury (photokeratitis, permanent corneal damage) and skin burns within seconds of exposure. Reflected UV-C is equally hazardous.
• Safety interlocks required: Install UV-blocking shielding and motion/presence detection interlocks to prevent accidental human exposure during operation.
• Eye and skin protection: When servicing, use UV-blocking face shield and protective clothing. Standard glass blocks UV-C. Do not view through quartz or plastic windows without UV-blocking protection.
• Ventilation: UV-C irradiation of air produces ozone. Ensure adequate ventilation to prevent ozone accumulation. Ozone is toxic at elevated concentrations.
• Mercury disposal: Contains mercury — dispose per local regulations. Visit lamprecycle.org.
• Allow 15-minute cool-down before handling after operation.

Ordering Information

• Brand: Ushio
• Ushio Catalog #: 3000009
• ANSI Code: —
• UPC: 48777246580
• Wattage / Voltage: 30W /
• Base: Bipin
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

Compliance

• Contains mercury — dispose per local lamp recycling regulations. Visit lamprecycle.org.
• Verify RoHS compliance with Ushio specification sheet.

ADL Supply recommends confirming all specifications with the Ushio product data sheet prior to installation.
