Product Overview

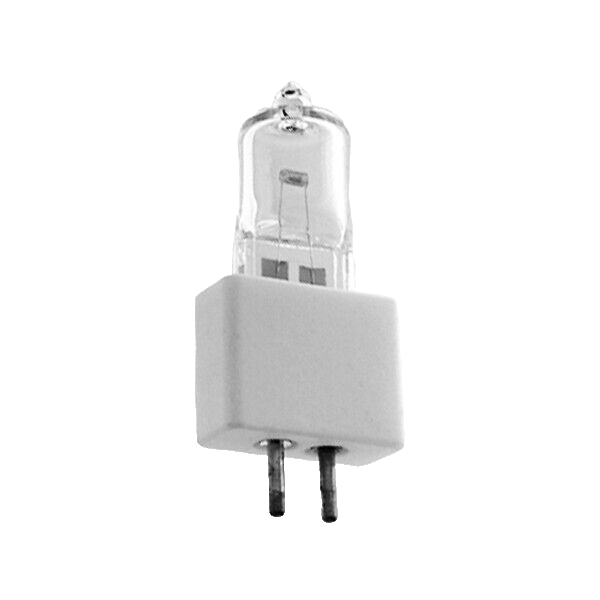

Ushio JC14.5V-50WC #1000837 50W – 50W | 14.5V | 3200K Warm White | 1,250 Lumens | ANSI Code N/A | Down/Hor Burn Position

The Ushio JC14.5V-50WC #1000837 50W is a 50W 14.5V 3200K Warm White Halogen JC Single-Ended — Photo-Optic/SSTV lamp delivering 1,250 initial lumens, ANSI Code N/A, Down/Hor Burn Position base, 100 hours rated life. Designed for professional audio/visual projection, studio, stage, and photo-optic equipment. UPC: 48777155028.

Wattage

50W

Halogen

Voltage

14.5V

Operating

Color Temp

3200K

CCT

Lumens

1,250

Initial lm

Rated Life

100

Hours

Quick Specs

Brand: Ushio
Ushio Catalog Number: 1000837
UPC: 48777155028
ANSI Code: Code N/A
Lamp Type: Halogen JC Single-Ended — Photo-Optic/SSTV
Bulb Type: T3.5 Halogen
Wattage: 50W
Operating Voltage: 14.5V
Color Temperature: 3200K Warm White
Initial Lumens: 1,250 lm
Rated Average Life: 100 hours
Base Type: Down/Hor Burn Position
Overall Length (MOL): 55mm x DIA 11.5mm
Filament: Filament
Burn / Operating Position: /Hor Burn Position

Product Overview

The Ushio JC14.5V-50WC #1000837 50W is a 50W 14.5V T3.5 Halogen halogen lamp for professional audio/visual projection, studio, stage, and photo-optic equipment. At 3200K Warm White with 1,250 initial lumens, this lamp provides high-intensity output appropriate for professional projection, studio, and stage applications at 14.5V. Rated life: 100 hours.

Do not touch the quartz envelope with bare hands. Skin oils cause hot spots. Use only in approved enclosed fixtures. Allow 15 minutes cool-down before handling. Verify voltage before installing.

Applications

Professional audio/visual projection – JC halogen for projectors, stage spotlights, and studio fixtures specifying 50W at 14.5V.
Stage, studio, and photo-optic applications – High-intensity tungsten halogen source at 3200K Warm White for camera-balanced studio and stage production.
Retrofit and maintenance replacement – Confirm ANSI code, wattage, voltage, and base type before ordering.

Safety and Handling

Do not touch the lamp envelope with bare hands. Skin oils cause hot spots leading to premature failure or lamp burst. Use clean gloves or lint-free cloth. Clean with isopropyl alcohol if accidentally touched.
Voltage — 14.5V: Verify your fixture or power supply output matches the rated voltage. Operating above rated voltage significantly shortens lamp life.
Enclosed fixture only: Use only in approved enclosed optical fixtures. Exposure to lamp during operation is a UV/thermal hazard.
Allow 15-minute cool-down before replacement.
