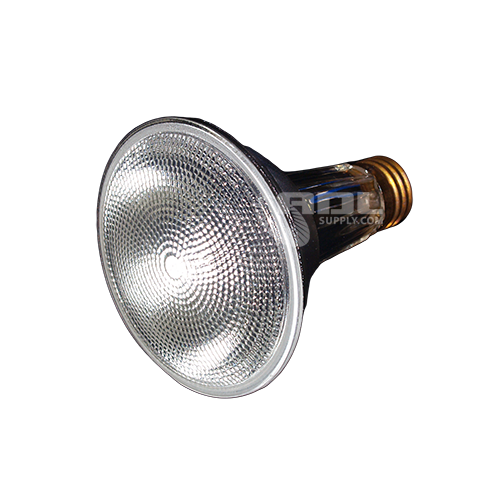

SYLVANIA 14579 | 90PAR38/HAL/FL30 120V Capsylite® SPL® 90W Tungsten Halogen Flood Lamp

The Sylvania 14579 (90PAR38/HAL/FL30 120V) is a professional-grade, line-voltage **90W tungsten halogen reflector lamp** from Sylvania’s high-performance Capsylite® SPL® (Soft Pool Lens) series. Operating directly at **120V**, this heavy-duty **PAR38 bulb** features an **E26 Medium Skirted brass base** and a thermal shock-resistant hard glass envelope. Engineered with patented spiral-fluted optics, it projects **1270 initial lumens** of crisp **2900K Warm White** light in a precise **30° flood beam spread**. Delivering flawless color accuracy (**CRI 100**) and an extended **2,500-hour rated lifespan**, this ballast-free lamp is the industry-standard choice for demanding commercial track, recessed downlighting, and premium architectural spot installations.

Patented SPL® Spiral Lens Distribution and Pure Spectrum Rendering

Sylvania Capsylite® PAR38 lamps stand out in commercial environments due to their advanced **Soft Pool Lens (SPL)** optical system. By combining a patented spiral-fluted reflector with a precision-molded front lens matrix, this bulb eliminates the harsh hot spots, distinct rings, and distracting striations common to standard par lamps. The result is an exceptionally uniform, smooth beam edge that blends seamlessly into multi-fixture layouts. Featuring a flawless **CRI 100**, this tungsten halogen source reveals the true, vibrant depth of colors, making it invaluable for high-end retail merchandising, gallery walls, and high-visibility architectural surfaces.

• Seamless Analog Linear Dimming: Fully compatible with standard incandescent and halogen dimming circuits, fading down from full intensity down to a warm, subtle glow without color shifts, digital flickering, or stepping.
• CC-8 Coiled-Coil Filament: Heavy-duty vertical wire distribution delivers superior mechanical stability, resistance to building vibrations, and optimized center-beam candlepower (CBCP).
• Integrated UV Filter Matrix: Doped glass capsule structure cuts harsh shortwave ultraviolet wavelengths, protecting fine showroom garments, delicate canvas paintings, and fabrics from premature fading or degradation.
• Universal Operation and E26sk Security: Fires reliably in any mounting profile or tracking angle. The skirted screw base adds structural support, shielding the live electrical socket shell within deep recessed housings.

Technical Specifications

• Brand: Sylvania
• Product Code / NAED: 14579
• Ordering Abbreviation: 90PAR38/HAL/FL30 120V
• Alternative Code: 90PAR38/CAP/SPL/FL30-120V
• Technology Type: Quartz Tungsten Halogen (Capsylite® Series)
• Optics Family: SPL® (Soft Pool Lens Technology)
• Wattage: 90W
• Voltage: 120V (Line Voltage; operates without ballast or transformer)
• Current Draw: 0.75 Amps
• Bulb Shape: PAR38 (Parabolic Aluminized Reflector, 4.75" Diameter)
• Base Type: E26 Skirted (Medium Screw Skirted / E26sk)
• Beam Angle / Spread: 30° Medium Flood (FL)
• Initial Lumens: 1,270 lm
• Color Temperature: 2900K (Warm White)
• Color Rendering Index (CRI): 100
• Average Rated Lifespan: 2,500 Hours (To 50% survival profile)
• Filament Type: CC-8 (Coiled-Coil)
• Maximum Overall Length (MOL): 5.32 Inches (135 mm)
• Operating Burn Position: Universal
• Environmental Rating: Suitable for indoor and weather-protected outdoor damp locations

Recommended Commercial Applications

• High-End Retail Showrooms: Accents boutique garment lines, window mannequins, and luxury floor displays with smooth, shadow-free illumination.
• Hospitality Recessed Cans: Populates deep recessed downlights in hotel lobbies, corporate corridors, and restaurant dining spaces to establish a warm, welcoming ambiance.
• Museums and Art Galleries: Provides smooth, uniform wall washing across wide canvases and delicate historical artifact alcoves without hot spot damage.
• Exterior Architectural Trim: Used in weather-protected soffits, building entryways, and canopy flood housings for secure night illumination.

Critical Handling, Safety, & Enclosure Protocols

• Thermal Operational Warning: Halogen PAR38 reflector lamps reach high temperatures quickly during active cycles. Ensure the fixture housing has adequate convective ventilation and airflow. Allow the luminaire to cool down completely for at least 15 minutes before executing an optimization swap or maintenance check.
• Glass Integrity and Pressure: Built with a heavy, UV-filtering hard glass outer body designed to resist thermal shock. However, because the inner quartz capsule operates under pressure, use only in structures that shield the lamp from direct water contact or moisture pooling. Verify your target housing possesses adequate physical depth to accommodate the 5.32-inch MOL layout.
