Product Overview

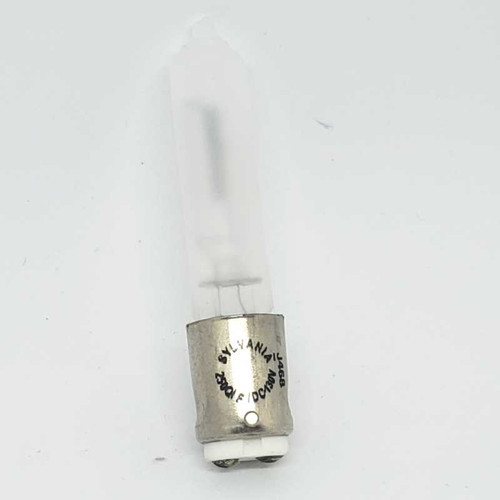

Sylvania 58753 250Q/DC ETB 120V 250W T4 Frosted Quartz Halogen Lamp
The Sylvania 58754 (250Q/DC) is a 250W single-end quartz halogen lamp on a DC Bayonet (2-Pin) base, used in photo-optic, projection, and specialty equipment applications. This frosted-finish T4 lamp operates at 130V and delivers 4,850 initial lumens at 2950K, with a rated average life of 2,000 hours. As a quartz halogen source, this lamp must be used with a suitable protective shield or screening technique to protect people and surroundings from the possibility of lamp shattering and from possible ultraviolet radiation.
| Wattage 250W T4 Quartz | Voltage 120V Line Voltage | Lumens 4,850 Initial | Color Temp 2950K Frosted | Rated Life 2,000 Hours |
Technical Specifications
| Sylvania Order Code | 58753 |
| Ordering Abbreviation | ETB 250Q/DC |
| Bulb Type | T4 |
| Base | DC Bayonet (2-Pin) |
| Finish | Frosted |
| Wattage | 250W |
| Voltage | 120V |
| Initial Lumens | 4,850 lm |
| Color Temperature | 2950K |
| Filament | C, CC-8 |
| Average Rated Life | 2,000 hours |
| LCL (Light Center Length) | 1.63" |
| MOL (Maximum Overall Length) | 3.13" |
| Standard Package Quantity | 12 per case |
| Mercury Content | Mercury-free (halogen lamp) |
Product Overview
This Sylvania single-end quartz halogen lamp is built for photo-optic and projection equipment where a compact, high-output source is required. The DC Bayonet (2-Pin) base and 1.63" light center length are engineered for precise, repeatable positioning within the optical system of the fixture or projector it's designed to replace.
Rated for 2,000 hours at 130V, the 58753 outputs 4,850 lumens at 2950K in a frosted envelope. Because this is an unshielded quartz halogen capsule, it is intended for installation inside equipment that provides its own protective shielding – it is not designed for use as a bare, exposed light source.
Compatible Applications
- Photo-optic, projection, and audio-visual equipment specified for a DC Bayonet (2-Pin) base lamp
- Studio, stage, and specialty equipment calling for the Sylvania 58753 or its 250Q ETB equivalent
- Equipment supplying 130V to the lamp socket
- Enclosed fixtures/equipment that provide their own protective shielding for this lamp type
Before Ordering – Verify
- Confirm supply voltage is 120V – this lamp is not rated for other voltages
- Confirm the equipment provides its own protective shield – this is an unshielded quartz capsule, not a general-purpose bulb
- Confirm DC Bayonet (2-Pin) base and LCL of 1.63" match your equipment's socket and optical alignment
Safety and Handling Guidelines
- A suitable protective shield, screening technique, or both must be used to protect people and surroundings from the possibility of lamp shattering and from possible ultraviolet radiation
- Allow the lamp to cool completely before handling or relamping
- Avoid touching the quartz envelope with bare skin; oils can shorten lamp life – handle with a clean cloth or gloves
- Do not exceed the equipment's rated maximum wattage
- Dispose of in accordance with local regulations for halogen lamps
Compliance
- Mercury-free halogen lamp
- Requires protective shielding in the end-use equipment – not rated for use as an unshielded, exposed light source
Ordering Information
- Sylvania Order Code: 58753
- UPC: 046135587532
- Standard Package Quantity: 12 per case
For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
