Product Overview

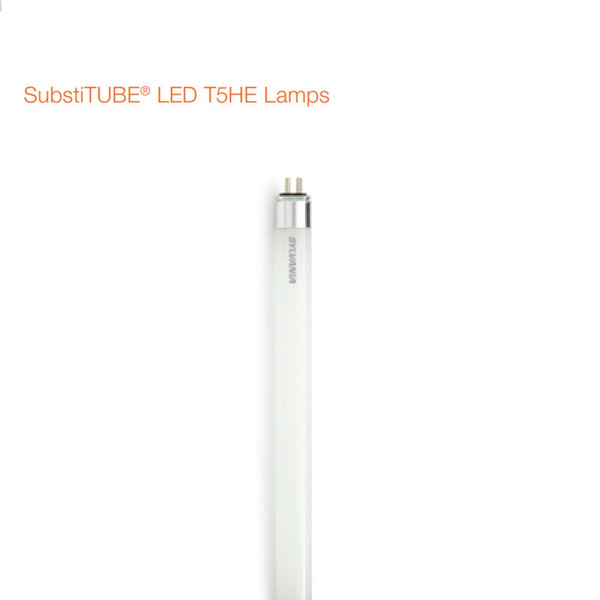

Sylvania 40094 LED10T5HE/L36/FG/841/SUB 10W 3ft T5HE LED Tube 4100K G5 Type A | 1500 Lumens | CRI 83 | G5 Base | 50,000 Hours
The Sylvania 40094 LED10T5HE/L36/FG/841/SUB SubstiTUBE LED T5HE lamp is a 10W, 3ft LED replacement for standard-output fluorescent T5 lamps. It provides 1500 lumens at 4100K with CRI 83 and operates on select programmed rapid start T5 electronic ballasts with 120-277V input. Verify ballast compatibility, G5 base, lamp length, and color temperature before ordering.
WATTAGE 10W LED Lamp |
LUMENS 1500 Typical |
COLOR TEMP 4100K CCT |
BASE G5 Mini Bi-Pin |
CRI 83 Color Rendering |
Technical Specifications
| Brand | Sylvania / LEDVANCE |
| Item Number | 40094 |
| Ordering Abbreviation | LED10T5HE/L36/FG/841/SUB |
| Lamp Type | SubstiTUBE LED T5HE |
| Wattage | 10W |
| Nominal Length | 3 ft |
| Maximum Overall Length | 33.98 in / 863 mm |
| Base | G5 miniature bi-pin |
| Typical Lumens | 1500 lm |
| Color Temperature | 4100K |
| CRI | 83 |
| Beam Angle | 180° |
| Rated Life | 50,000 hours (L70) |
| Power Factor | >0.9 |
| Ballast Operation | Select programmed rapid start T5 electronic ballasts, 120-277V input |
| Dimming | Not identified as dimmable in the manufacturer ordering table. |
| Location Rating | Dry and damp; no direct contact with water |
| Fixture Rating | Suitable for open fixtures |
| Operating Temperature | -4°F to 113°F (-20°C to 45°C) |
| Maximum Case Temperature | 167°F (75°C) |
| Package Quantity | 25 |
| DLC | N/A |
| Warranty | 5-year limited lamp warranty |
Product Overview
SYLVANIA SubstiTUBE T5HE lamps provide an energy-saving LED alternative to standard-output fluorescent T5 lamps. The optimized glass optical design is intended to mimic traditional fluorescent T5 appearance while providing instant-on operation, stable lamp-to-lamp color, and no UV emission.
This lamp retains the existing compatible programmed rapid start electronic T5 ballast. Because ballast designs vary, the manufacturer recommends testing the lamp with the installed ballast before large-scale installation.
Compatible Applications
- Cove lighting
- Education spaces
- General illumination
- Office lighting
- Retail space lighting
- Dry and damp locations where the lamp will not contact water directly
Before Ordering – Verify
- Confirm item number 40094 and ordering abbreviation LED10T5HE/L36/FG/841/SUB.
- Confirm the G5 miniature bi-pin base and 3ft lamp length.
- Confirm the installed ballast is a compatible programmed rapid start T5 electronic ballast.
- Do not use with High Output ballasts.
- Confirm 4100K color temperature and 1500 lumen output.
Safety and Handling Guidelines
- Turn power off before installation, inspection, or maintenance.
- Install and operate in accordance with NEC, UL requirements, and applicable codes.
- Insert tubes fully and correctly into lamp holders to avoid poor contact, arcing, or localized overheating.
- Maximum mounting distance between tube and ballast is 20 feet.
- Keep within the -4°F to 113°F operating temperature range.
Compliance
- Certified/listed markings shown by the manufacturer include ETL/UL, RoHS, mercury-free, DLC where applicable, and NSF.
- No UV emission.
- DLC: N/A; DLC does not have a T5 2ft/3ft product category.
Ordering Information
- Manufacturer item number: 40094
- Ordering abbreviation: LED10T5HE/L36/FG/841/SUB
- Package quantity: 25
- Series: SYLVANIA SubstiTUBE LED T5HE
- Use with select compatible programmed rapid start T5 electronic ballasts.
