Sylvania 55125 75AR111/SP8 12V 75W AR111 Spot Halogen Reflector Lamp

Product Overview

Sylvania 55125 75AR111/SP8 12V 75W AR111 Spot Halogen Reflector Lamp

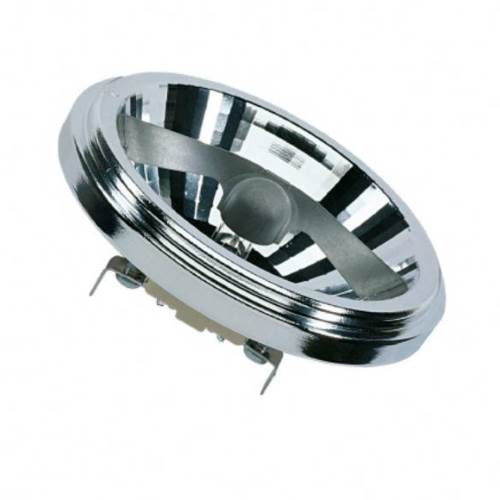

The Sylvania 55125 (75AR111/SP8) is a 75W AR111 aluminum reflector halogen lamp with a UV-filter capsule and axial filament precisely engineered into the reflector for a 8° spot beam. It operates on 12V with a Push Screw Terminal base and delivers 30,000 candela center beam candlepower (CBCP) at 3000K, with a rated average life of 3,000 hours. This is a low-voltage lamp and requires a compatible 12V transformer/driver. The lamp is designed for use in unshielded fixtures per current luminaire standards for your area.

Wattage

75W

AR111

Voltage

12V

Low Voltage

CBCP

30,000

Center Beam Candlepower

Beam Angle

8°

Spot

Rated Life

3,000

Hours

Technical Specifications

Sylvania Order Code	55125
Ordering Abbreviation	75AR111/SP8
Bulb Type	AR111
Base	Push Screw Terminal
Beam Type	SP – Spot (8°)
Wattage	75W
Voltage	12V
Center Beam Candlepower (CBCP)	30,000 cd
Color Temperature	3000K
Filament	C, C-8
Average Rated Life	3,000 hours
MOL (Maximum Overall Length)	2.25"
Standard Package Quantity	6 per case
Mercury Content	Mercury-free (halogen lamp)

Product Overview

Sylvania AR111 lamps combine a UV-filter capsule with an axial filament set into a precisely engineered aluminum reflector, giving a controlled 8° spot distribution at 30,000 CBCP. The aluminum reflector construction is built for accurate, repeatable beam control in display and accent applications where beam consistency matters.

This 12V, 75W lamp uses a Push Screw Terminal base and is rated for 3,000 hours of average life at 3000K. Because it runs on 12V, it requires a compatible low-voltage transformer or electronic driver rather than a direct line-voltage connection.

Compatible Applications

Fixtures specified for an AR111 lamp with a Push Screw Terminal base
Track heads, gimbal downlights, and display/accent luminaires using AR111 reflector lamps
Retail, museum, gallery, and hospitality accent lighting where precise beam control matters
Unshielded fixtures rated for use with this lamp type per local luminaire standards

Before Ordering – Verify

Confirm your fixture accepts an AR111 lamp with a Push Screw Terminal base
Confirm supply voltage is 12V and that a compatible low-voltage transformer is installed
Confirm the beam angle (8° Spot) matches the throw distance and spread required for the application
Verify the fixture is suitable for unshielded lamp use per current luminaire standards for your area

Safety and Handling Guidelines

Allow the lamp to cool completely before handling or relamping
Avoid touching the quartz capsule with bare skin; oils can shorten lamp life – handle with a clean cloth or gloves
Do not exceed the fixture's rated maximum wattage
Dispose of in accordance with local regulations for halogen lamps
