Product Overview

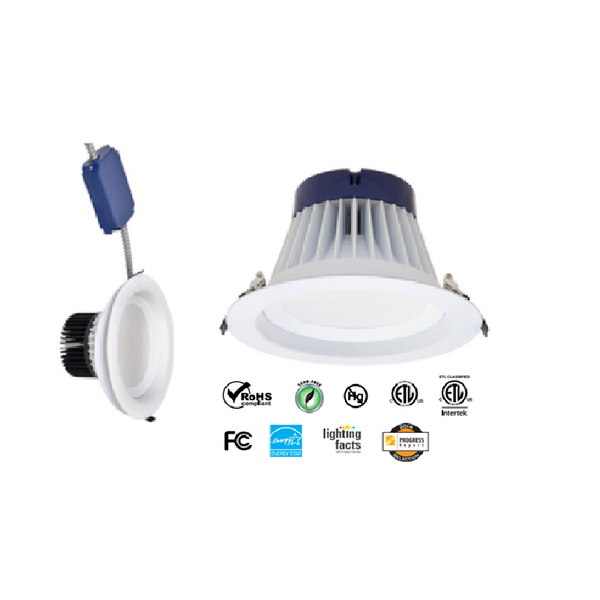

Sylvania LEDRT8R3A3000UD950 — 8" LED Recessed Downlight, 3000 lm, 5000K, 32W, 120-277V, 0-10V Dimmable
The Sylvania LEDRT8R3A3000UD950 is an 8" LED recessed downlight retrofit kit delivering 3000 lumens at 5000K, CRI 90, drawing 32W on 120-277V input with 0-10V dimming support. Note: this exact SKU and CCT combination does not appear in the current LEDVANCE ULTRA LED RT8 spec sheet (LED411R17), which lists the 3000lm/CRI90 tier only in 3000K, 3500K, and 4000K at 40W. Confirm current availability and specifications directly with Sylvania/LEDVANCE before ordering.
Wattage 32W Fixed | Lumens 3000 lm Fixed output | Color Temp / Dimming 5000K 0-10V Dimmable | Voltage 120-277V Input voltage | Rated Life 50,000 hrs (L70) Service life |
Technical Specifications
| Brand | Sylvania |
| Series / Family | UltraLED™ RT8 Recessed Downlight (Generation R3A) |
| Order Code | LEDRT8R3A3000UD950 |
| SKU | SYL60786 |
| Housing Compatibility | 8" recessed housing |
| Wattage | 32W |
| Input Voltage | 120-277V |
| Lumen Output | 3000 lm |
| Color Temperature (CCT) | 5000K |
| CRI | 90 |
| Rated Average Life | 50,000 hours (L70) |
| Dimming | 0-10V Dimmable |
| Data Source Note | Not listed in current LEDVANCE spec sheet LED411R17 – verify specs with manufacturer before relying on this listing |
| Certifications | UL1598 Listed and Classified, RoHS, FCC |
Product Overview
The Sylvania LEDRT8R3A3000UD950 is an eight-inch LED recessed downlight retrofit kit from an earlier UltraLED RT8 generation (R3A). It is designed as a direct retrofit for 8" recessed CFL housings, delivering 3000 lumens at 5000K with CRI 90 and 0-10V dimming support.
This SKU and CCT/wattage combination could not be verified against the current LEDVANCE ULTRA LED RT8 spec sheet (LED411R17), which documents the 3000lm/CRI90 tier at 40W in 3000K, 3500K, and 4000K only – not 5000K, and not at 32W. This listing has been retained with its existing specifications at your direction; confirm current availability, wattage, and CCT directly with Sylvania/LEDVANCE before fulfilling orders against this SKU.
Compatible Applications
- Healthcare facilities
- Hospitality (hotels, restaurants)
- Office and commercial space
- Residential retrofit
- Retail
- Direct retrofit replacement for CFL pin-base lamps in 8" housings
Before Ordering — Verify
- This SKU's specifications could not be confirmed against the current manufacturer spec sheet – verify wattage, CCT, and availability with Sylvania/LEDVANCE before quoting or fulfilling.
- Confirm the existing housing is a standard 8" CFL mounting frame.
- Confirm required input voltage (120-277V) matches the site's electrical service.
- Confirm dimming control compatibility if 0-10V dimming is required.
Safety and Handling Guidelines
- Disconnect power before installation or service.
- Do not disassemble internal LED or driver components. Use qualified personnel for electrical connections.
- Use a recessed incandescent frame for tiled-ceiling applications to properly support the retrofit kit.
Compliance
- UL1598 Listed and Classified
- RoHS Compliant
- FCC Compliant
Ordering Information
- Brand: Sylvania
- Order Code: LEDRT8R3A3000UD950
- Wattage: 32W
- Lumen Output: 3000 lm
- Color Temperature: 5000K
- Voltage: 120-277V
- Packaging: Sold individually unless otherwise noted.
- Case quantities and bulk pricing: Contact ADL Supply for volume orders.
For wholesale pricing, bulk availability, or help confirming the correct retrofit configuration for your project, contact ADL Supply at 1-800-235-3489.
