Product Overview

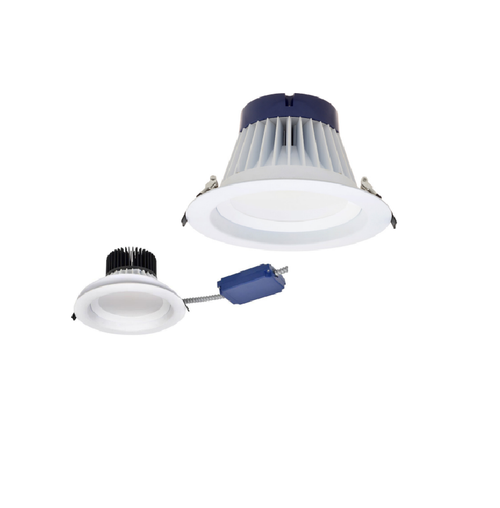

Sylvania 61450 LEDRT56/R3A700UD/950 — UltraLED RT5/6 LED Recessed Downlight, 700lm 5000K CRI 90
The Sylvania 61450 is a UltraLED RT5/6 LED recessed downlight kit, delivering 700 lumens at 5000K with a CRI of 90. It's a 120-277v compatible, 5/6" compatible retrofit kit optimized for new construction and retrofit applications replacing pin-based compact fluorescent downlights, with an 85° beam angle and up to 77 LPW efficacy.
WATTAGE 9W 700lm | LUMENS 700 77 LPW | COLOR TEMP 5000K CRI 90 | RATED LIFE 50,000h L70 @25°C | DIMMING 0-10V 120-277V |
Technical Specifications
| Item Number | 61450 |
| Ordering Abbreviation | LEDRT56/R3A700UD/950 |
| Size | 5/6" compatible can |
| Wattage | 9W |
| Input Voltage | 120-277V |
| Dimming | 0-10V dimmable |
| Color Rendering Index (CRI) | 90 |
| Color Temperature (CCT) | 5000K |
| Total Fixture Lumens | 700 lm |
| Efficacy | 77 LPW |
| Beam Angle | 85° |
| Rated Life | ≥50,000 hours (L70) @25°C |
| Power Factor | >0.9 |
| THD | <20% |
| Height (standalone) | 96.20mm (3.79") |
| Height (with J-box) | 134.20mm (5.29") w/ J-box |
| Diameter | Ø187.00mm (7.37") |
| Ambient Operating Range | -4°F to +104°F (-20°C to +40°C) |
| Warranty | 5-year standard warranty |
| ENERGY STAR | Listed |
| UPC/EAN | 46135614507 |
Product Overview
SYLVANIA UltraLED RT is a universal input voltage LED recessed downlight kit that creates high-performing white light, optimized for new construction and retrofit applications utilizing pin-based compact fluorescent lamps. Installation is done quickly and easily in most standard 5/6-inch frames, and the series is designed to seamlessly integrate with SYLVANIA field-installable, integrated emergency battery back-up drivers.
The 61450 delivers 700 lumens at 9W (77 LPW) with an 85° beam angle, CRI 90, and 5000K color temperature. It's rated for a life of 50,000+ hours (L70) and supports 0-10v dimming on 120-277V, backed by a 5-year standard warranty.
Compatible Applications
- New construction recessed downlighting
- Retrofit of pin-based compact fluorescent downlights
- Commercial and residential general lighting
- Suitable for dry, damp, and wet locations
Before Ordering – Verify
- Confirm can/housing compatibility — this kit is designed for standard 5/6-inch frames; a recessed incandescent frame is recommended for tiled-ceiling applications.
- Confirm dimming system compatibility — this item is 0-10v dimmable; dimming performance may vary by system.
- Confirm voltage (120-277V) matches your circuit before ordering.
- If emergency battery back-up is required, confirm compatibility with the appropriate SYLVANIA EMBB accessory before ordering.
Safety and Handling Guidelines
- Disconnect power at the breaker before installing or servicing this fixture.
- Install only in ceiling types and can sizes this kit is rated for.
- Do not exceed the fixture's rated wattage or voltage.
- Follow SYLVANIA's installation instructions for stand-alone vs. rough-in frame installation.
Compliance
- Manufactured by LEDVANCE LLC under the SYLVANIA brand.
- cETLus Listed.
- RoHS compliant.
- FCC compliant.
- ENERGY STAR Certified.
- Classified for stand-alone and retrofit applications per UL 1598/1598C.
- Certified airtight per ASTM E283-04.
Ordering Information
- Item Number: 61450
- Ordering Abbreviation: LEDRT56/R3A700UD/950
- UPC/EAN: 46135614507
- Sold individually unless otherwise noted on the product page.
For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
