Product Overview
Sylvania 62805 RT85AS3300UNVD9SC8WHTAA — RT Dual Select Performance 8" 4-CCT LED Recessed Downlight, 25/29/35W Selectable
The Sylvania 62805 is an 8" RT Dual Select Performance LED recessed downlight with field-selectable wattage/lumen output (25/29/35W) and 4-CCT color temperature selection (3000/3500/4000/5000K) in a single SKU — no need to stock a separate part number for every wattage and color temperature combination. It's 90+ CRI (R9>50) with an 85° beam angle and 0-10V dimming on 120-277V.
WATTAGE 25/29/35W Field-Selectable | LUMENS 2,400/2,800/3,300 up to 94 LPW | COLOR TEMP 3000/3500/4000/5000K 4-CCT Select | RATED LIFE 50,000h Average | DIMMING 0-10V 120-277V |
Technical Specifications
| Item Number | 62805 |
| Ordering Abbreviation | RT85AS3300UNVD9SC8WHTAA |
| Size | 8" RT downlight |
| Selectable Wattage | 25/29/35W |
| Selectable Lumens | 2,400/2,800/3,300 lm |
| Input Voltage | 120-277V |
| Power Factor | ≥0.90 |
| THD | <20% |
| Selectable CCT | 3000/3500/4000/5000K |
| Color Rendering Index (CRI) | >90, R9>50 |
| Efficacy | up to 94 LPW |
| Beam Angle | 85° FWHM |
| Dimming | 0-10V dimmable |
| Rated Life | 50,000 hours average |
| Diameter | 9.45" |
| Height | 4.35" |
| Product Weight | 1.12 lb |
| Housing | Aluminum, White finish |
| Mercury Content | 0.0 mg |
| Mounting | Recessed |
| Replaceable Light Source | No |
| Warranty | 5-year |
| Certifications | RoHS, FCC — Energy Star Rated |
| UPC/EAN | 046135628054 |
Product Overview
The RT Dual Select Performance series lets you carry one SKU that covers what used to take several separate part numbers. Wattage and lumen output are field-selectable across 25/29/35W (2,400/2,800/3,300 lm), and color temperature is selectable across 3000/3500/4000/5000K — set once at install to match the job, without ordering a different fixture for every spec.
The 62805 delivers up to 94 LPW efficacy at >90 CRI (R9>50) with an 85° beam angle, 0-10V dimming on 120-277V, and a 50,000-hour average rated life, backed by a 5-year warranty.
Compatible Applications
- New construction recessed downlighting
- Retrofit of existing recessed downlight installations
- Commercial and residential general lighting
- Suitable for wet locations
Before Ordering – Verify
- Confirm desired wattage/lumen tier (25/29/35W) and color temperature (3000/3500/4000/5000K) are set correctly at install — both are field-selectable on this fixture.
- Confirm dimming system compatibility — this item supports 0-10V dimming; performance may vary by system.
- Confirm voltage (120-277V) matches your circuit before ordering.
- If emergency battery back-up is required, confirm compatibility with the appropriate SYLVANIA EMBB accessory (EMBB 2A 8W UNV DC or EMBB 2A 8W UNH DC) before ordering.
Safety and Handling Guidelines
- Disconnect power at the breaker before installing or servicing this fixture.
- Install only in ceiling types and can sizes this kit is rated for.
- Do not exceed the fixture's rated wattage or voltage.
- Suitable for wet locations.
Compliance
- Manufactured by LEDVANCE LLC under the SYLVANIA brand.
- Certifications: RoHS, FCC — Energy Star Rated.
- 5-year warranty.
Ordering Information
- Item Number: 62805
- Ordering Abbreviation: RT85AS3300UNVD9SC8WHTAA
- UPC/EAN: 046135628054

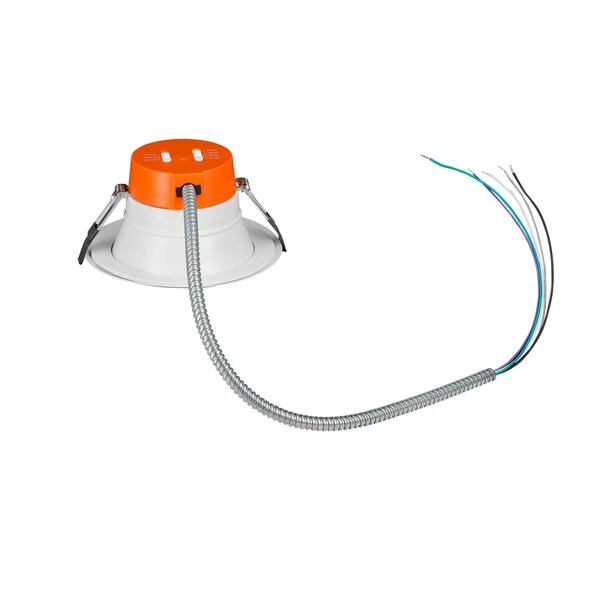

- Includes: luminaire with integrated driver and armored BX whip, 5 wire nuts, 1 BX Knockout Clip.
- Optional accessories (sold separately): trim rings, trim extenders, rough-in frames, and EMBB emergency battery back-up modules.
- Sold individually unless otherwise noted on the product page.
