Product Overview
Sylvania RT561A/1200ST9SC3/SMWH/E26 — 5-6" LED Retrofit Downlight, 1200 lm, 2700K/3000K/3500K/4000K/5000K, Smooth Reflector, White

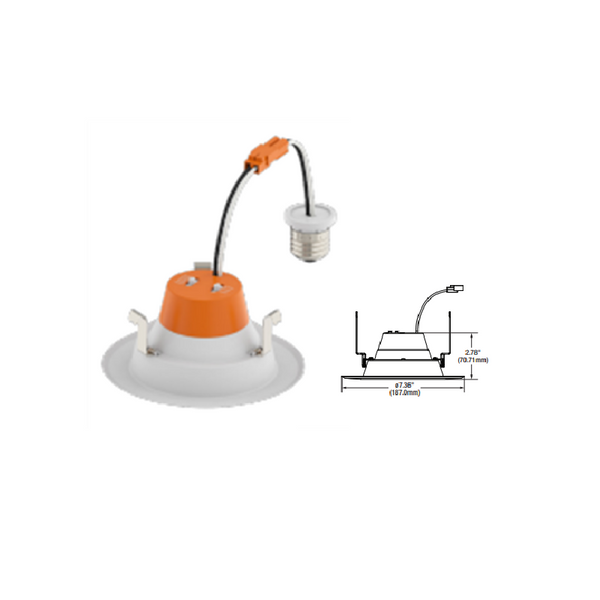

The Sylvania RT561A/1200ST9SC3/SMWH/E26 is a 5-6" screw-base LED retrofit downlight designed to install into existing recessed housings using a standard E26 medium base socket adapter. It delivers 1200 lm (fixed) of light output with a field-selectable color temperature switch covering 2700K/3000K/3500K/4000K/5000K, CRI >90, and instant full-output operation with no warm-up time. Verify housing size, lumen output, and CCT setting before ordering.
Wattage 13W Fixed | Lumens 1200 lm Fixed output | Color Temp / Dimming 2700K/3000K/3500K/4000K/5000K Phase-Cut Dimmable | Base / Voltage 120V / E26 Medium base | Rated Life 50,000 hrs (L70) Service life |
Technical Specifications
| Brand | Sylvania |
| Series / Family | LEDVANCE RT Selectable Screw-Base Downlight |
| Item Number | 62872 |
| Order Code | RT561A/1200ST9SC3/SMWH/E26 |
| SKU | SYL62872 |
| Housing Size | 5-6" recessed cans |
| Wattage | 13W |
| Input Voltage | 120V |
| Lumen Output | 1200 lm (Fixed) |
| Color Temperature (CCT) | 2700K/3000K/3500K/4000K/5000K (Field Selectable via rear switch) |
| CRI | >90 |
| Efficacy (LPW) | 92 |
| Rated Average Life | 50,000 hours (L70) |
| Reflector Type | Smooth |
| Finish | White |
| Base Type | E26 Medium Base |
| Dimming | Phase-Cut (Triac) Dimmable, down to 10% with compatible dimmers |
| Power Factor | >0.90 |
| THD | <20% |
| Approximate Dimensions | 5.0" dia. trim x ~3" depth (5-6" housing) |
| Operating Temperature | -4°F to +102°F (-20°C to +40°C) |
| Location Rating | Suitable for indoor dry, damp, and wet locations |
| Emergency / Exit Use | Not intended for use with emergency light fixtures or exit lights |
| Housing Weight Support | For use in housings that can structurally support a one-pound lamp |
| Certifications | cETLus, RoHS, FCC, ENERGY STAR®, Title 24, Title 20 |
| Warranty | 5 Years – NLB Trusted Warranty Program |
Product Overview
The Sylvania RT561A/1200ST9SC3/SMWH/E26 is a screw-base LED retrofit downlight intended for renovation and retrofit projects in bedrooms, kitchens, bathrooms, and similar spaces using existing 5-6" recessed housings. It installs using an E26 medium base adapter in place of an incandescent or CFL lamp, with the trim, reflector, and driver integrated into a single unit – no separate housing replacement is required.
The smooth reflector and white trim ship as a complete kit. 5-6" versions include adjustable torsion springs for secure seating in standard insulated and non-insulated housings. Color trim rings (black, oil-rubbed bronze, or satin nickel) are available as a separate accessory if a finish other than white is required.
This unit has a fixed 1200 lm output with CCT-only selectability (2700K/3000K/3500K/4000K/5000K), switched via the rear-mounted selector. Lumen output is not field-adjustable on this SKU; if variable lumen output is required, the Dual Selectable series (e.g. 65735/65736/65737/65738) should be specified instead.
Compatible Applications
- Retrofit of existing 5-6" recessed incandescent or CFL downlight housings
- Bedrooms, living rooms, and general residential ambient lighting
- Kitchens and bathrooms (wet-location rated)
- Hospitality and light commercial spaces using standard recessed cans
- Dimmer-controlled rooms using a compatible leading-edge or trailing-edge dimmer
Before Ordering — Verify
- Confirm the existing recessed housing is sized for 5-6" cans – this SKU is not interchangeable across housing sizes.
- Confirm the desired lumen output (1200 lm fixed) meets the room's lighting requirements; this SKU does not offer selectable lumen output.
- Confirm the desired color temperature setting (2700K/3000K/3500K/4000K/5000K) before installation; the CCT switch is accessible only by removing the fixture from the housing.
- Confirm reflector style (Smooth) and trim finish match the room's other fixtures, or order a color trim ring separately if needed.
- If dimming is required, confirm the dimmer model is on the compatible leading-edge or trailing-edge dimmer list; not all dimmers are compatible.
- Confirm the housing can structurally support a one-pound lamp and is not designated for emergency or exit lighting use.
Safety and Handling Guidelines
- Disconnect power before installation or service.
- Not intended for use with emergency light fixtures or exit lights.
- Install only in housings that can structurally support a one-pound lamp.
- Do not exceed the rated operating temperature range (-4°F to +102°F / -20°C to +40°C).
- Use only with compatible dimmers if dimming control is desired; incompatible dimmers may cause flicker, buzzing, or reduced dimming range.
Compliance
- cETLus Listed
- RoHS Compliant
- FCC Compliant
- ENERGY STAR® Certified
- California Title 24 and Title 20 compliant
- Wet Location Rated – suitable for indoor dry, damp, and wet locations
Ordering Information
- Brand: Sylvania
- Item Number: 62872
- Order Code: RT561A/1200ST9SC3/SMWH/E26
- Housing Size: 5-6"
- Wattage: 13W
- Lumen Output: 1200 lm (fixed)
- Color Temperature: 2700K/3000K/3500K/4000K/5000K
- Reflector: Smooth
- Finish: White
- Accessories: Color trim rings (Black, Oil Rubbed Bronze, Satin Nickel) available separately.
- Packaging: Sold individually unless otherwise noted.
- Case quantities and bulk pricing: Contact ADL Supply for volume orders.
For wholesale pricing, bulk availability, or help confirming the correct retrofit downlight configuration for your project, contact ADL Supply at 1-800-235-3489.
