Sylvania 69183 XBO R-180W-45C-OFR

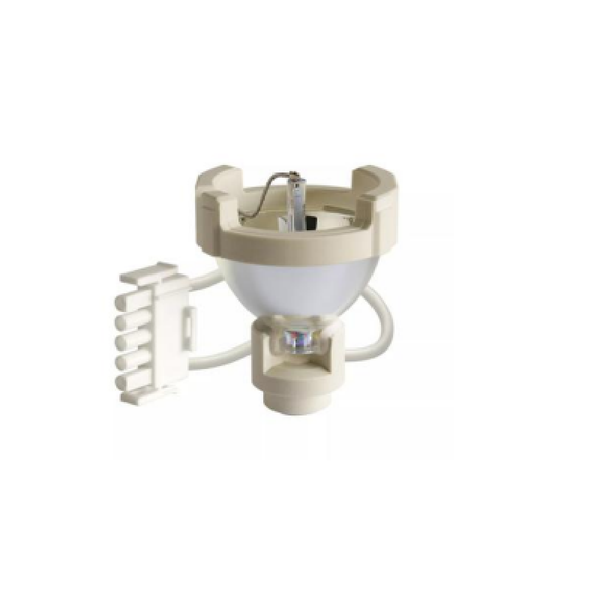

Sylvania 69183 XBO-R-180-W/45C-OFR — 180W/14V DC Short-Arc Xenon (XBO) Medical Lamp

Sylvania 69183 (XBO-R-180-W/45C-OFR) is a short-arc xenon (XBO) reflector lamp built for professional medical light sources — endoscopy, laparoscopy, and surgical/microscopy illuminators. Rated at 180W on a regulated 14V DC supply drawing 12.0A, it uses OSRAM SYLVANIA's ozone-free (OFR) quartz formulation and is documented for horizontal operation only, within the manufacturer's specified tilt tolerance.

Technical Specifications

Product Overview

The Sylvania XBO-R-180-W/45C-OFR is a member of OSRAM SYLVANIA's XBO short-arc xenon reflector family, built for regulated-DC medical and scientific light sources rather than general illumination. Xenon short-arc technology produces a continuous, daylight-balanced spectral output by nature of the xenon gas discharge — this is a characteristic of the XBO lamp family broadly, and is not itemized as a specific CRI or CCT figure per catalog listing.

This lamp requires a power supply specifically regulated for XBO xenon arc lamps — standard AC ballasts or generic DC adapters are not compatible, and cathode/anode polarity must be observed exactly per the host equipment's manual. It is rated for horizontal operation only, within p 15 (horizontal, +/-15 deg. of horizontal).

Like all OFR (ozone-free) XBO lamps, its quartz envelope is coated to suppress UV transmission below approximately 250 nm, eliminating ozone generation during operation — this allows use inside enclosed instrument housings without auxiliary exhaust ventilation, per OSRAM SYLVANIA's general XBO installation guidance.

Compatible Applications

• Endoscopy and laparoscopy light sources
• Surgical operating room illumination towers
• Clinical and laboratory microscopy instruments requiring a regulated xenon light engine
• OEM/replacement lamp for medical light-source consoles specified for this exact Product Number

Before Ordering – Verify

• Confirm the light source console uses a regulated DC power supply rated for XBO xenon arc lamps — standard AC ballasts and generic DC adapters are not compatible.
• Confirm cathode/anode polarity per the equipment manual before installing — reversed polarity causes immediate electrode erosion and can damage the power supply.
• Confirm the fixture supports required cooling — forced-air cooling directed at the lamp base is required for this lamp type.
• Confirm mounting orientation supports p 15 (horizontal, +/-15 deg. of horizontal) — operating outside this tolerance shortens lamp life and can distort the arc.

Safety and Handling Guidelines

• Xenon short-arc lamps operate under high internal gas pressure even when cold — handle with a full face shield and heavy protective gloves.
• Never touch the quartz envelope or reflector optics with bare hands — skin oils create thermal hot spots that can cause the capsule to shatter during operation.
• Disconnect power and allow the lamp to cool (forced or convection) for a minimum of 15 minutes before removal, per OSRAM SYLVANIA's XBO handling guidance.
• Store and transport in the original protective cover/packaging until the lamp is mounted in its locked fixture enclosure.
• Dispose of spent lamps per OSRAM SYLVANIA's XBO lamp disposal procedure and applicable federal/state/local regulations — do not discard as ordinary waste.

Compliance

• Ozone-Free (OFR) quartz formulation — suppresses ozone generation per OSRAM SYLVANIA's XBO OFR specification
• See OSRAM SYLVANIA's full XBO catalog and installation guide for complete compliance and handling documentation.

Ordering Information

• Product Number: 69183
• Ordering Abbreviation: XBO-R-180-W/45C-OFR
• Sold individually by ADL Supply.
• Contact ADL Supply to confirm current stock and lead time for this specialty medical lamp.

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
